X-On Electronics has gained recognition as a prominent supplier of GDM-541 Digital Multimeters across the USA, India, Europe, Australia, and various other global locations. GDM-541 Digital Multimeters are a product manufactured by GW INSTEK. We provide cost-effective solutions for Digital Multimeters, ensuring timely deliveries around the world.

GDM-541 GW INSTEK

Name: GDM-541
Brand: GW INSTEK
SKU: GDM541_GW INSTEK
Availability: InStock
Rating: 5 (11 reviews)

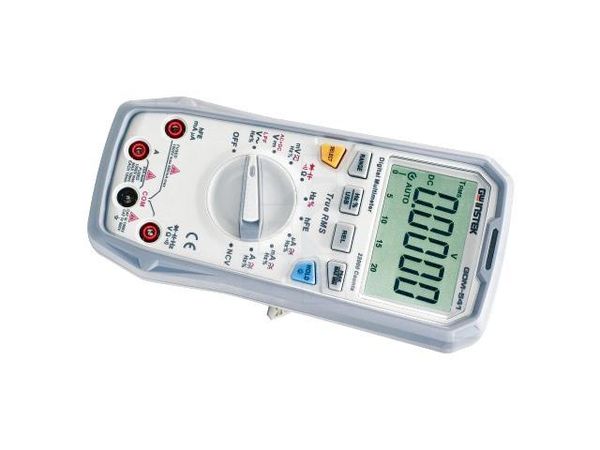

GDM-541 electronic component of GW INSTEK

Images are for reference only
See Product Specifications

Part No.	GDM-541
Manufacturer:	GW INSTEK
Category:	Digital Multimeters
Description:	Digital multimeter; USB; bargraph,LCD (22000); Bargraph: 46segm.
Datasheet:	GDM-541 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 171.0492 ea
Line Total: USD 171.05

Availability - 3
Ship by Fri. 08 Nov to Thu. 14 Nov

MOQ: 1 Multiples: 1
Pack Size: 1

GDM-541 More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

3

Ship by Fri. 08 Nov to Thu. 14 Nov

MOQ : 1
Multiples : 1

1 : USD 171.0492

Specifications

Manufacturer
GW INSTEK GW INSTEK

Product Category
Digital Multimeters Digital Multimeters

Category
Digital Multimeters Digital Multimeters

Weight
400 g 400 g

Interface
USB USB

Standard Equipment
test leads, USB cable test leads, USB cable

Type Of Meter
digital multimeter digital multimeter

Measuring Instrument Features
automatic power - off, HOLD function (for holding display readout), MIN/MAX function, non - contact voltage detector, low - pass filter automatic power - off, HOLD function (for holding display readout), MIN/MAX function, non - contact voltage detector, low - pass filter

Conform To The Norm
EN61010 1000V CAT III, EN61010 600V CAT IV EN61010 1000V CAT III, EN61010 600V CAT IV

Capacitance Measuring Accuracy
± (3 % + 5 digits) ± (3 % + 5 digits)

Resistance Measuring Accuracy
± (0 , 5 % + 10 digits) ± (0 , 5 % + 10 digits)

Dc Current Measuring Accuracy
(0 , 5 % + 10 digits) (0 , 5 % + 10 digits)

Ac Voltage Measuring Accuracy
(0 , 8 % + 10 digits) (0 , 8 % + 10 digits)

Dc Voltage Measuring Accuracy
(0.05 % + 5 digits) (0.05 % + 5 digits)

Ac Current Measuring Accuracy
(0 , 8 % + 10 digits) (0 , 8 % + 10 digits)

True Effective Value Measurement
True RMS True RMS

Kind Of Display Used
bargraph, LCD (22000) bargraph, LCD (22000)

Continuity Test
acoustic indication acoustic indication

Test
diodes diodes

Measurement
AC voltage, DC voltage, frequency, capacitance, DC current, resistance, AC current, transistors\\\\\\\\\\\\\\\\ gain h_FE, continuity AC voltage, DC voltage, frequency, capacitance, DC current, resistance, AC current, transistors\\\\\\\\\\\\\\\\ gain h_FE, continuity

Producer Guarantee Months
24 24

Frequency Measuring Accuracy
± (0,01 % + 5 digits) ± (0,01 % + 5 digits)

Bargraph
46 segm. 46 segm.

Ac Current Measuring Range
20 A , 220 uA , 2200 uA , 22 mA , 220 mA 20 A , 220 uA , 2200 uA , 22 mA , 220 mA

Dc Current Measuring Range
20 A , 220 uA , 2200 uA , 22 mA , 220 mA 20 A , 220 uA , 2200 uA , 22 mA , 220 mA

Dc Voltage Measuring Range
1 kV , 220 mV , 2.2 V , 22 V , 220 V 1 kV , 220 mV , 2.2 V , 22 V , 220 V

Ac Voltage Measuring Range
1 kV , 220 mV , 2.2 V , 22 V , 220 V 1 kV , 220 mV , 2.2 V , 22 V , 220 V

Frequency Measuring Range
10...220MHz 10...220MHz

Capacitance Measuring Range
22 nF , 220 nF , 2.2 uF , 22 uF , 220 uF , 2.2 MF , 22 MF , 220 MF 22 nF , 220 nF , 2.2 uF , 22 uF , 220 uF , 2.2 MF , 22 MF , 220 MF

Power Supply
b A ttery LR03 A A A 1 , 5 V x4 b A ttery LR03 A A A 1 , 5 V x4

Dimensions W X H X D
89x186x49mm 89x186x49mm

Resistance Measuring Range
600 To 220 MOhms 600 To 220 MOhms

Notes:- Show Stocked Products With Similar Attributes.
