Replaceable ESD Carbofib tip tweezers
2ACFR.SA L=130 mm
242CFR.SA L=130 mm
249CFR.SA L=130 mm
259CFR.SA L=130 mm
5CFR.SA L=130 mm
5XCFR.SA L=125 mm
7CFR.SA L=125 mm
2ABCFR L=125 mm
High precision Replaceable plastic tip tweezers
Replacement tip set (2 tips + 3 screws available)
The handle is made of high-quality antimagnetic stainless steel (SA, AISI
316L)
Typical applications include the handling of scratch and break sensitive
components like thin film resistors, SMD parts, microchips, etc. Well suited
for soldering operations also at lead-free temperatures.
The tips are made of ESD safe Carbofib (CF)
PA66/CF30 polyamide 66 reinforced with 30 wt% carbon fibre
very high rigidity, excellent tensile and flexural strength, fatigue and creep
resistance
excellent wear and abrasion resistance
good heat capability
good chemical resistance (oils, grease, fuels, non-polar solvents); not
resistant to strong acids, alkalis and hot water or steam
ESD safe material, (avoid powder attraction, sparks generation, ignition
sources).
very low coefficient of linear thermal expansion
Type Farnell Order-Nr. Description

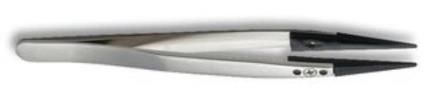

2ACFR.SA Flat round tip
A2ACF Replacement tip set for 2ACPR.SA

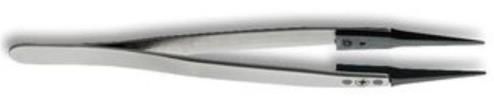

242CFR.SA Thin, flat round tip
A242CF Replacement tip set for 242CPR.SA
249CFR.SA Strong rounded tip
A249CF Replacement tip set for 249CPR.SA
259CFR.SA Fine tip
A259CF Replacement tip set for 259CPR.SA
5CFR.SA Very fine tip
A5CF Replacement tip set for 5CPR.SA
5XCFR.SA Very fine tip, self-closing tweezers
A5CF Replacement tip set for 5XCPR.SA
7CFR.SA Very fine, curved tip
A7CF Replacement tip set for 7CPR.SA
2ABCFR.SA Flat curved round tip
A2ABCF Replacement tip set for 2ABCFR.SA
