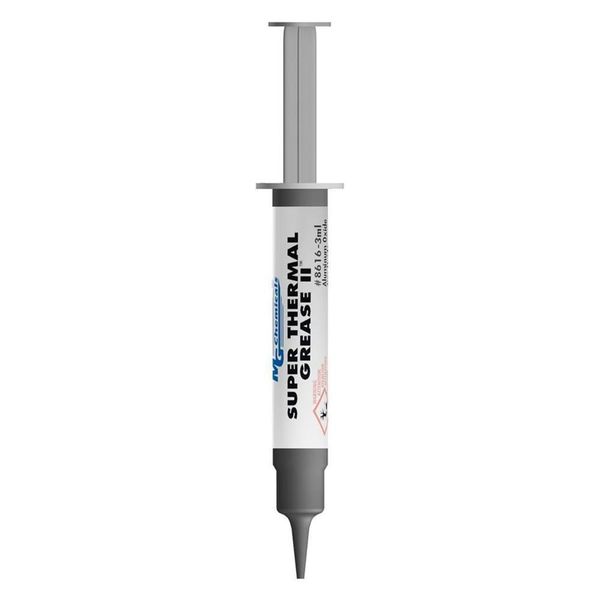

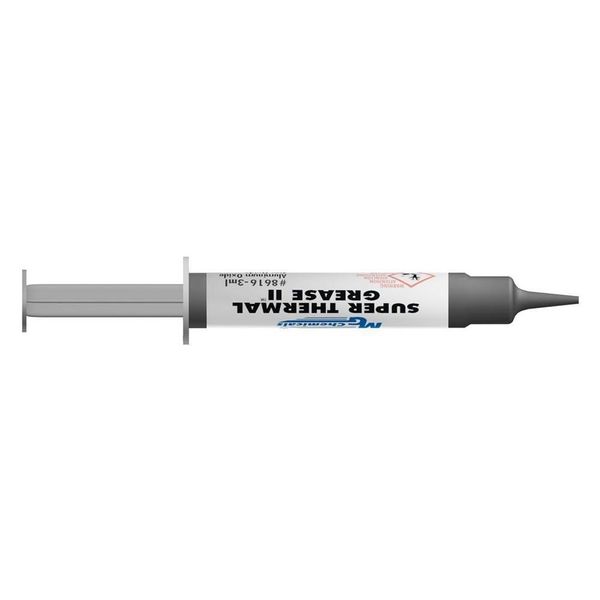

Super Thermal Grease II 8616 Technical Data Sheet 8616 Description The 8616 Super Thermal Grease II is a low thermal resistance grease with a synthetic oil base that is electrically insulating and non-corrosive. It is used to improve the thermal interface contact conductivity between heat sinks, LEDs, motors, and heat-generating electronic components such as CPUs, GPU chipsets, and power components. It improves the thermal interface between irregular and pitted surfaces. Benefits & Features High thermal conductivity Silicone free and non-bleeding Excellent corrosion resistance Passed ASTM B 117 1 000 hours Lowers the contact resistance between irregular surfaces Extends the life of electronic components Electrically insulating Safe on plastics Usage Parameters Temperature Ranges Properties Value Properties Value Shelf Life 5 y Constant Service -68 to 165 C 2 Theoretical Coverage <1 180 cm Temperature -90 to 329 F a) 2 for 3 mL syringe <0.64 ft Storage Temperature Limits -10 to 40 C 14 to 104 F a) Idealized estimate based on 25 m 1.0 mil thickness and 100% transfer efficiency. Principal Components Name CAS Number Aluminum oxide 1344-28-1 Zinc oxide (thermally conductive filler) 1314-13-2 Properties Thermal Properties Method Value Thermal Conductivity 25 C 77 F ASTM E 1461 1.78 W/(m K) a) -3 2 Contact Thermal Resistance ASTM E 1225 0.24 x 10 (m K)/W a) Tested with stainless steel plates Page 1 of 4 Rev. Date: 20 June 2017 / Ver. 1.05 Super Thermal Grease II 8616 Technical Data Sheet 8616 Electrical Properties Method Value 11 Volume Resistivity ( v) ASTM D 257 1.8 x 10 cm -12 Volume Conductivity ( v) 5.6 x 10 S/cm Dielectric Strength 50 mil gap ASTM D 149 330 V/mil 13 kV/mm Breakdown Voltage 16 600 V 16.6 kV Dielectric Constant 1 000 cps ASTM D 150 6.77 Dielectric Constant 10 000 cps 6.69 Dissipation Factor 1 000 cps 0.01 Dissipation Factor 10 000 cps 0.01 TBD=To be determined Grease Properties Method Value Evaporation Loss, 22 h 165 C 329 F ASTM D 2595 1.2% Oil Separation, 30 h 165 C 329 F ASTM D 6184 0.02% Dropping Point ASTM D 2265 >300 C >572 F Water Washout 38 C 100 F ASTM D 1264 0.9% Worked Penetration, unworked ASTM D 217 284 60 strokes 287 Penetration, 10 000 Strokes 313 a) Salt Spray Corrosion Resistance ASTM B 117 Pass Physical Properties Method Value Color White, silvery Odor Odorless Density 25 C 77 F ASTM D 1475 2.69 g/mL Viscosity Thixotropic paste Lubricant No Bleed Yes Corrosion Resistant Yes Filler Aluminum oxide, zinc oxide a) Aluminum 2024 coupons with 254 m 10 mil film thickness and 1 000 hours exposure to 5% salt spray Synthetic Oil Properties Method Value c) Oil Viscosity Index ASTM D 2270 >110 d) Fire Point ASTM D 92 321 C 609.8 F Flash Point ASTM D 92 >290 C >554 F Note: Values based on synthetic oil component only. c) High oil viscosity index of more than a 100 indicate small oil viscosity change with temperature. d) Temperature at which oil will continue to burn for at least 5 s after ignition with an open flame. Page 2 of 4 Rev. Date: 20 June 2017 / Ver. 1.05
