0210200053 Molex

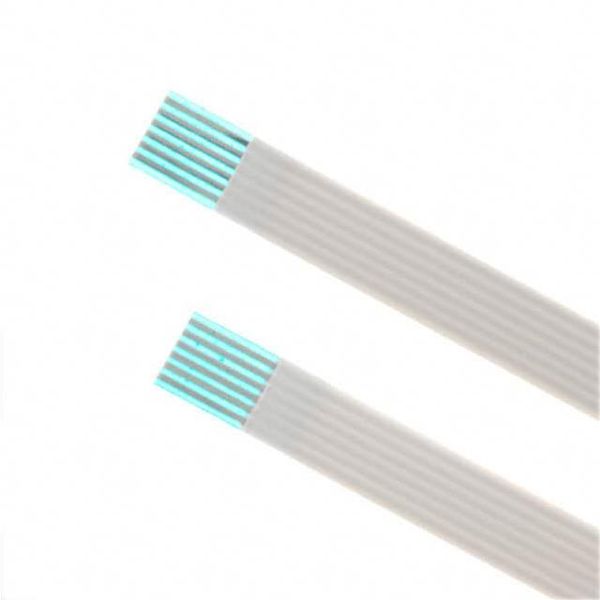

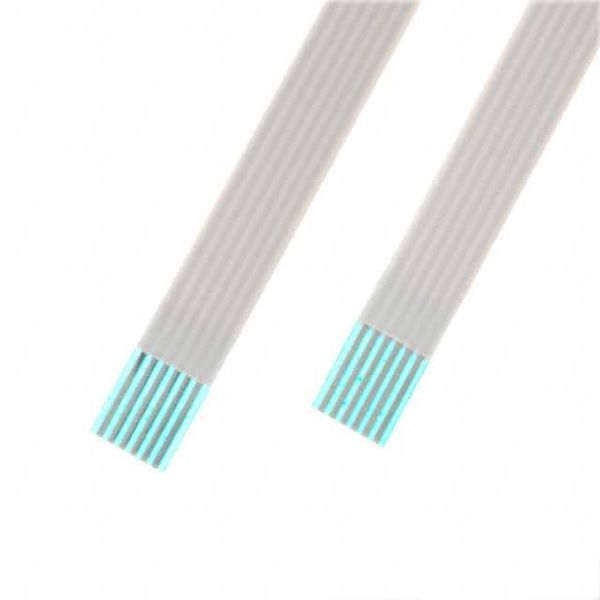

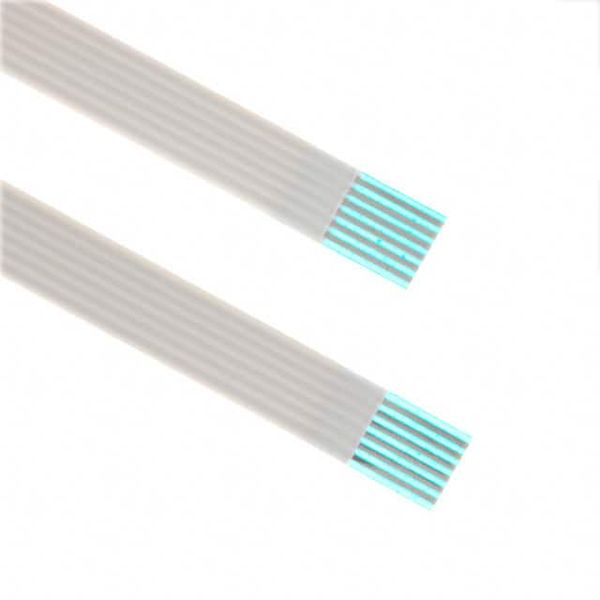

This document was generated on 04/29/2014 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: 21020-0053 Status: Active Overview: Premo-Flex FFC and Etched Polyimide Jumpers Description: 0.50mm Pitch Premo-Flex FFC Jumper, Same Side Contacts (Type A), 6 Circuits, 0.051m Cable Length, 0.27mm Cable Thickness, Tin(Sn) Plating Replacement Part 15266-0053 Number: Documents: Drawing (PDF) RoHS Certificate of Compliance (PDF) Series Product Specification PS-21020-001 (PDF) image - Reference only EU RoHS China RoHS General ELV and RoHS Product Family Cable Compliant Series 21020 REACH SVHC Comments Contacts on the same side, Type A Not Reviewed Crimp Quality Equipment Yes Low-Halogen Status Overview Premo-Flex FFC and Etched Polyimide Jumpers Not Low-Halogen Product Name Premo-FlexFFC Jumper Replacement Part Number 15266-0053 Need more information on product UPC 800754815321 environmental compliance? Physical Email productcompliance@molex.com Cable Length 0.051m For a multiple part number RoHS Certificate of Circuits (Loaded) 6 Compliance, click here Net Weight 0.143/kg Please visit the Contact Us section for any Packaging Type Bag non-product compliance questions. Pitch - Termination Interface 0.50mm Temperature Range - Operating -40C to +80C Wire Size AWG N/A Wire/Cable Type Flat Flex Cable Search Parts in this Series Electrical 21020Series Current - Maximum per Contact 0.5A Voltage - Maximum 30V Use With www.molex.com/product/ffcfpc_th.html Solder Process Data Duration at Max. Process Temperature (seconds) 30 Max. Cycles at Max. Process Temperature 1 Process Temperature max. C 250 Material Info Reference - Drawing Numbers Product Specification PS-21020-001 Sales Drawing SD-21020-001 This document was generated on 04/29/2014 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATIONX-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for FFC / FPC Jumper Cables category: Click to view products by Molex manufacturer: Other Similar products are found below : 6-1437161-1 MDM96521-744 8-1474659-7 FSK-21.5A-20 FSK-72.5KD-17 FSN-21A-18 FSN-21A-2 FSN-23A-3 FSN-24A-2 FSP-23A-14 FSP-25A-8-TB FST-24A-5 9-1474653-6 1474494-5 1474659-1 1474448-1 1474494-2 1557385-1 2-1437168-4 22034.1 237-0736-003 2- 6447164-4 1-6437133-3 1-6437159-8 1832785-1 FSN-23A-5 FSN-26A-3 FSN-28A FSN-61.1AB-30 FSP-23A-11 2-1437181-9 2- 1437186-7 238-9503-000 2-6474621-5 3-1437186-4 3-1474654-1 4-1437180-6 4-1474659-8 3-1437144-3 3-1474654-4 357-9509-000 5- 1474653-2 5-1474654-9 1-1437173-3 1-1474671-7 1-1474612-2 6474462-1 6-6437158-0 5-1474653-4 D130361-5
