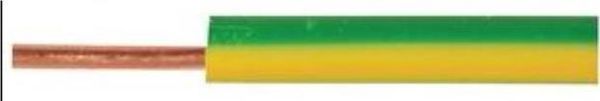

Switchgear Wire Type BU Description 1mm (1/1.13mm) Plain Copper, PVC Insulated, 600 / 1,000V, BS 6231 : 1998, Table 6, Type BU Conductor 1mm (1 / 1.13mm) plain annealed copper wire meeting the requirements of BS 6360, class 1 Max. conductor resistance at 20C : 18.1 / km Insulation Type TI 1 PVC compound meeting the requirements of BS EN 50363 Min. insulation resistance at 70C : 0.0142M.km Min. average wall thickness : 0.8mm Max. overall diameter : 3.2mm Printed : CONCORDIA ENGLAND Service Data For the wiring of switch, control, metering, relay and instrument panels of power switchgear, and for internal connections in rectifier equipment and motor starters and controllers Rated voltages (Uo/U) : 600 / 100V Max. conductor operating temp. : +70C Min. ambient temp. once installed : -20C Mass per unit length : 16.4kg Part Number : Varies with colour and packing Note: The requirements for Types BU and BR have been withdrawn from the latest issue of BS 6231 as they are no longer considered market relevant. Part Number Table Description Part Number Wire, BU, BS6231, Black, 1mm, 100M 025 Wire, BU, BS6231, Blue, 1mm, 100M 026 Wire, BU, BS6231, Red, 1mm, 100M 027 Wire, BU, BS6231, GRN/YEL, 1mm, 100M 028 Important Notice : This data sheet and its contents (the Information) belong to the members of the Premier Farnell group of companies (the Group) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Groups liability for death or personal injury resulting from its negligence. pro - POWER is the registered trademark of the Group. Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 24/01/13 V1.0X-ON Electronics Authorized Distributor Click to view similar products for Pro Power manufacturer. Other Similar products are found below : 0301CV100W 04JSBLACK 06JSBLACK 08450046010 08450056010 08450066010 08450166010 08450236010 08450256010 08JSBLACK 10026B 10026BK 10026G 10026R 10026TB 10026TBK 10026TG 10026TR 10026TW 10026W 10030B 10030BK 10030G 10030O 10030R
