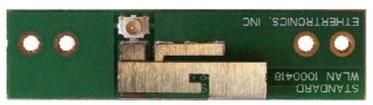

PRODUCT: WLAN Part No. 1000418 TM Prestta WLAN Embedded Antenna 2.4/4.9/5.2/5.8 GHz (802.11 a/b/g/n + Japan) KEY BENEFITS DESIGN ADVANTAGES Quicker Time-to-Market By optimizing antenna size, performance and emis- sions, customer and regulatory specifications are more easily met. Greater Flexibility Ethertronics first-in-class IMD technology enables you to develop concept designs that are more advanced Ethertronics Prestta series of Isolated Magnetic Di- and that deliver superior performance in reception- pole (IMD) stamped metal antennas address the critical applications. challenges facing todays product designers. IMDs Connector located on the PCB allows for custom cable high performance and isolation characteristics offer lengths to fit a variety of devices better connectivity and minimal interference. RoHS Compliant IMD antennas can be used in a variety of devices: Ethertronics antennas are fully compliant with the Notebook Computers European RoHS Directive 2002/95/EC. Access Points Industrial Handhelds WiFi enabled Televisions & Monitors END USER ADVANTAGES Unique Form Factors Support Advanced Industrial Designs TECHNOLOGY ADVANTAGES Smaller, more efficient IMD embedded antennas break through restrictive design rules and provide new free- Stays in Tune dom in component placement. IMD antenna technology Superior Range & Signal Strength provides superior RF field Better antenna function means longer range and containment, resulting in greater sensitivity to critically precise signals less interaction with delivering greater customer satisfaction while building surrounding components. brand loyalty. Ethertronics IMD antennas resist de-tuning providing a robust radio link regardless of the SERVICE AND SUPPORT usage position. Extensive RF Experience Prestta WLAN antennas use patented IMD technology Our WLAN antennas are supported by documentation, in a stamped metal configuration to provide high and when needed, by the expertise of RF engineers performance. IMD antennas requires a smaller design who have integrated hundreds of antenna designs into keep-out area, carry lower program development risk wireless devices. which yields a quicker time-to-market, without sacrificing RF performance. Global Operations & Design Support Ethertronics global operations supports an integrated network of design centers that can take projects from concept to production. ETHERTRONICS 9605 Scranton Road, Suite 300 San Diego, CA 92121 - USA www.ethertronics.com tel +(1) 858.550.3820 fax +(1) 858.550.3821 contact: info ethertronics.com PRODUCT: WLAN a/b/g/n + Japan Ethertronics Internal (Embedded) Antenna Specifications. Below are the typical specs for a WLAN application. WLAN a/b/g/n + Japan 2.390-2.490 4.900-5.100 5.150-5.350 5.70-5.900 Antenna (GHz) b, g Japan a a Electrical Specifications Peak Gain 1.5-2.5 dBi 1.5-3.5 dBi 2-3.5 dBi 2-3.5 dBi Typical Characteristics Efficiency 65% 65% 65% 70% VSWR Match <2.0:1 <1.5:1 <2.0:1 <2.0:1 Feed Point Impedance 50 unbalanced (other if required) Dimensions 17.9 x 6.9 x 4.3 mm (Antenna) 45.0 x 11.3 x 0.8 mm (PCB) Mechanical Specifications Weight 1.6 g Cable / Connector Contact Ethertronics for details. Cable Length 150 mm, 300mm 450mm, 600mm available VSWR Efficiencies o o o Antenna Radiation Patterns Phi = 0 Plane Phi = 90 Plane Theta = 90 Plane Typical Performance Z Theta X Phi Y 2009 Ethertronics. All rights reserved. Ethertronics, the Ethertronics logo, shaping antenna technology, Prestta, Savvi, Tavvel, Isolated Magnetic Dipole and the iMD logo are trademarks of Ethertronics. All other trademarks are the property of their respective owners. Specifications subject to change and are dependent upon actual implementation. WL-08-14-09 WLAN a WLAN b,g 4.900-5.900 GHz 2.390-2.490 GHz Band WLAN a WLAN b,g
