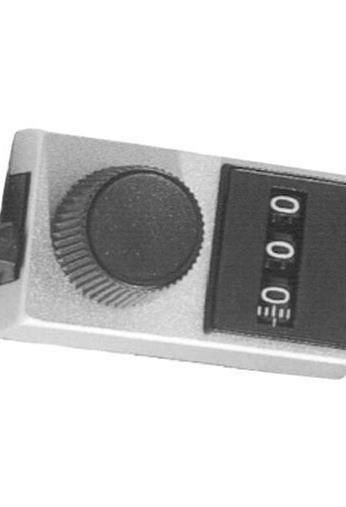

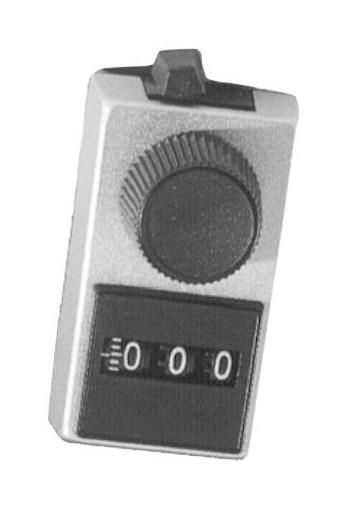

Model 15 www.vishay.com Vishay Spectrol Rectangular 10 Turn Dial (3 Digit), (4 Digit) 100 Turn FEATURES Rectangular digital scale 1 wide 1 1 / or / or metric (6 mm) shaft adapter 4 8 Open or clear plastic window bezel Black anodize finish with standard or white bezel trim Satin clear anodize finish Material categorization: For definitions of compliance please see www.vishay.com/doc 99912 QUICK REFERENCE DATA OPERATIONAL SPECIFICATIONS Sensor type DIALS Operation 3 digit (10 turn) Market appliance Industrial Left digit Complete revolutions of turning knob Dimensions 25.4 mm x 49.5 mm Right two digits Percent of revolution The unit registers a total count of 999 Operation 4 digit MECHANICAL SPECIFICATIONS (100 turn) PARAMETER Left two digits Complete revolutions of turning knob Right two digits Percent of revolution The numerals shall be white The unit registers a total count of 9999 Numerals on a black background and The indication shall increase with clockwise 0.130 H (3.30 cm) Rotation rotation of the turning knob The spring detented knob shall be Graduation lines adjacent to the numerals on removed using a straight pull, exposing Accuracy the right digit wheel indicate settings 0.2 % of Mounting two no. 4 to 40 hex socket set screws a revolution of the turning knob for mounting the dial directly to the Dial phased by rotating the exposed component shaft component shaft to correspond with the Phasing desired reading on the dial prior to tightening Weight 1.6 oz. (45.36 g) the set screws DIMENSIONS in inches (millimeters) 0.812 MIN. (20.62) COVER 0.015 0.015 1.000 + 0.000 0.625 (25.40) - 0.015 (15.88) 0.125 (3.18) 0.093 (2.36) BASE WINDOW BEZEL 0.094 0.015 (2.39) 1.750 0.750 1.280 (32.51) TURNING KNOB (44.45) (19.05) 1.950 MAX. 0.495 0.695 (17.65) (49.53) (12.57) + 0.002 1 0.250 (6.35) - 0.00 0.002 0.128 0.750 (19.05) BRAKE LEVER KNOB 0.165 (4.19) (NO. 30 DRILL) (3.25) ON OFF 0.135 (3.42) SETSCREWS 2 PLCS C COMPONENT SHAFT HOLE L 90 APART TRAVEL 0.015 MOUNTING 5.95 (15.11) HOLE PATTERN 1.000 MAX. (25.40) ORDERING INFORMATION/DESCRIPTION 15 A 1 1 B010 e SHAFT DIAMETER MODEL BEZEL FINISH PACKAGING LEAD FINISH AND NUMERCIAL DISPLAY 1 A / dia. 3 digit 4 1 B / dia. 4 digit 1. Satin clear anodize 4 1 C / dia. 3 digit 1. Open 3. Black anodize, white 8 1 D / dia. 4 digit 3. Clear plastic window bezel trim 8 E 6 mm dia. 3 digit 5. Black anodize Example: 15 - A - 1 - 1 F 6 mm dia. 4 digit SAP PART NUMBERING GUIDELINES 15 A 1 1 B10 MODEL SHAFT DIAMETER BEZEL FINISH PACKAGING Revision: 04-Jul-12 Document Number: 57086 1 For technical questions, contact: sferprecisionpot vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc 91000 Legal Disclaimer Notice www.vishay.com Vishay Disclaimer ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, Vishay), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and al l liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. Statements regarding the suitability of products for certain types of applications are based on Vishay s knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer s responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer s technical experts. Product specifications do not expand or otherwise modify Vishay s terms and conditions of purchase, including but not limited to the warranty expressed therein. Hyperlinks included in this datasheet may direct users to third-party websites. These links are provided as a convenience and for informational purposes only. Inclusion of these hyperlinks does not constitute an endorsement or an approval by Vishay of any of the products, services or opinions of the corporation, organization or individual associated with the third-party website. Vishay disclaims any and all liability and bears no responsibility for the accuracy, legality or content of the third-party website or for that of subsequent links. Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustainin g applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners. 2021 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED Revision: 09-Jul-2021 Document Number: 91000 1
