SF18G-N1S1-F05 CONDUCTRF

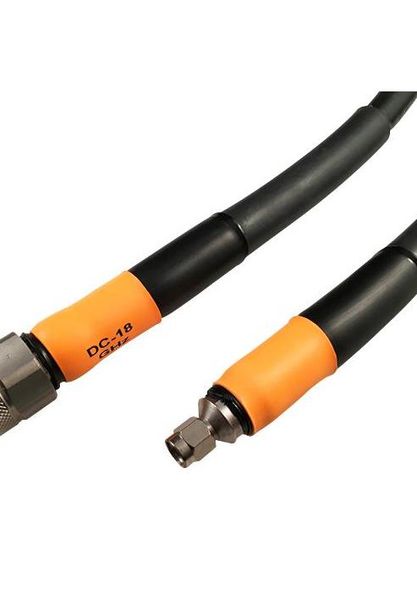

This document is the property of Conduct RF. The information contained herein is not to be disclosed or copied in whole or in part without the written consent of Conduct RF. Notes: 1. Only RoHS Compliant Processes and Materials used for this assembly. 2. Marking includes ConductRF, Part No. & Serial No., Black Text. 3. Mark Shrink Tube on both connectors ends with DC-18GHz 4. Single Centered Marker up to 15(4.5M), Two Markers 12(30cm) from ends for lengths over 15(4.5M) Site-Flex Phase Stable 5. Serial No. to be Marked as Cxxxxx, where xxxxx = sequential no. from log. 5. 100% Tested DC to 18GHz, Plotted Data supplied with assembly. Rugged RF Test Cable 7. Caps to be Fitted Prior to Packaging 8. Cables to be Coiled and Placed in Bag with ConductRF Label.(See Separate Label Instruction) ConductRF DC-18 DC-18 SF18G-N1S1-XXX GHz GHz Cxxxxx Length XXX Length Max Inser/on Loss(dB) 9GHz 12GHz 18GHz 1M0 1M 1.729 2.063 2.664 Part No. Congurator - XXX F03 3C 1.601 1.909 2.463 F05 5C 2.521 3.012 3.897 FXX = Length in Feet (eg F03=3ft) SXX = Length in Inches (eg S18=18) F08 8C 3.901 4.666 6.048 XMX = Length in Meters (eg 2M5=2.5m) F10 10C 4.821 5.769 7.482 CXX = Length in CM (eg C50=50cm) F12 12C 7.121 8.527 11.067 VSWR(max) 1.30:1 Customer DWG Title: Site-Flex - Type-N Male to SMA Male - DC-18GHz Remarks: Originated: Conduct RF Sheet 1 of 1 Range: SF sales ConductRF.com 02/19/16 Tel: +1 978 374 6840 Dwg Ref: SF18G-N1S1 1 Pre-Release DG 10/18/16 Tolerances: REV. DESCRIPTION ECN DRAWN DATE Checked: JW Approved: PL Rev: 1 Part No: SF18G-N1S1-XXX Length +/-2% REVISION HISTORYX-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for CONDUCTRF manufacturer: Other Similar products are found below : SF18G-N1S1-F05 VNA18-N1N1-S24 VNA40-DNFD1-S24 SF27G-E1EF-1M0 SW50G-C1CF-1M0 TSA74-N1S1-1M0 PFA61-D1D1-1M0 SF27G-EFEF-1M0 PFA61-C1C1-1M0 SF07G-N1D1-F05 SW50G-CFCF-1M0 VNA18-N1NF-S24 SF18G-N1N2-1M0 SF09G-N1N1-F05 TEA90-N1S1-1M0 SF09G-N1NF-F05 TEA90-N1N1-1M0 SF18G-N1NF-1M0 SF18G-N1N1-1M0
