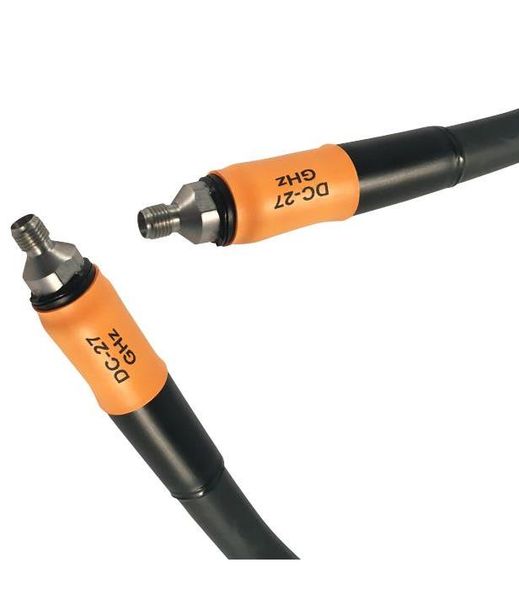

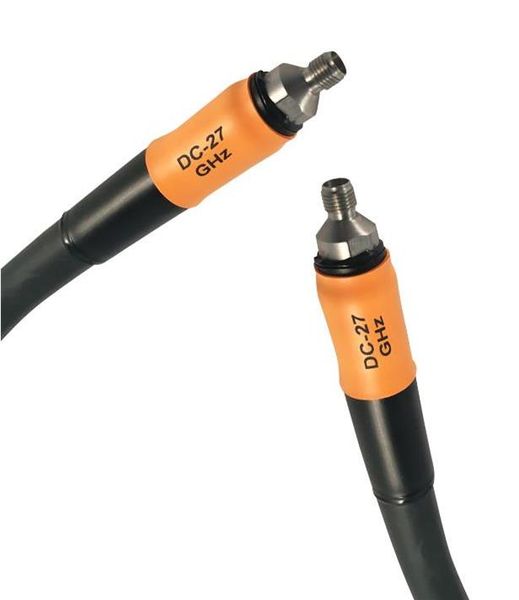

SF27G-EFEF-1M0 CONDUCTRF

Site-Flex RF Field Test Cables Phase Stable & Ruggedized Rugged Construction for Field Use Stainless Steel Anti-Torque Connectors Phase & Amplitude Stable Cable Low VSWR, Low Insertion Loss Op. Temp -65C to 125C RoHS Compliant Ideal for Handheld RF & Microwave Analyzers Extended Frequency Solutions Available ConductRFs Site-Flex RF Field Test Cables have been designed to support Handheld RF & Microwave Analyzers. The ruggedized construction includes anti-torque connectors that are firmly attached to the cables external armor. Crush resistant SF series cable can withstand 1,200lbs/sq.in. Additional configurations and lengths are available on request. End 1 End 2 Length Operating In.Loss VSWR Phase Amplitude Keysight ConductRF Frequency Max Max Stability Stability Equivalent SF09G-N1N1-F05 Type-N Male Type-N Male 5ft DC to 9GHz 2.521dB 1.20:1 1.5 0.1dB N9910X-810 SF09G-N1NF-F05 Type-N Male Type-N Female 5ft DC to 9GHz 2.521dB 1.20:1 1.5 0.1dB N9910X-811 SF09G-N1N2-F05 Type-N Male Type-N R/A Male 5ft DC to 9GHz 2.521dB 1.20:1 1.5 0.1dB ConductRF Only SF09G-N1N1-F12 Type-N Male Type-N Male 12ft DC to 9GHz 7.121dB 1.20:1 1.5 0.1dB N9910X-812 SF09G-N1NF-F12 Type-N Male Type-N Female 12ft DC to 9GHz 7.121dB 1.20:1 1.5 0.1dB N9910X-813 SF09G-N1N2-F12 Type-N Male Type-N R/A Male 12ft DC to 9GHz 7.121dB 1.20:1 1.5 0.1dB ConductRF Only SF18G-N1N1-1M0 Type-N Male Type-N Male 1M DC to 18GHz 2.664dB 1.30:1 2.0 0.1dB N9910X-701 SF18G-N1NF-1M0 Type-N Male Type-N Female 1M DC to 18GHz 2.664dB 1.30:1 2.0 0.1dB N9910X-700 SF18G-N1N2-1M0 Type-N Male Type-N R/A Male 1M DC to 18GHz 2.664dB 1.30:1 2.0 0.1dB ConductRF Only SF18G-N1N1-F05 Type-N Male Type-N Male 5ft DC to 18GHz 3.897dB 1.30:1 2.0 0.1dB ConductRF Only SF18G-N1NF-F05 Type-N Male Type-N Female 5ft DC to 18GHz 3.897dB 1.30:1 2.0 0.1dB ConductRF Only SF18G-N1N2-F05 Type-N Male Type-N R/A Male 5ft DC to 18GHz 3.897dB 1.30:1 2.0 0.1dB ConductRF Only SF07G-N1D1-F05 Type-N Male Din 7/16 Male 5ft DC to 7GHz 2.164dB 1.30:1 1.5 0.1dB N9910X-814 SF07G-N1DF-F05 Type-N Male Din 7/16 Female 5ft DC to 7GHz 2.164dB 1.30:1 1.5 0.1dB ConductRF Only SF07G-N1D1-F12 Type-N Male Din 7/16 Male 12ft DC to 7GHz 4.921dB 1.30:1 1.5 0.1dB N9910X-815 SF07G-N1DF-F12 Type-N Male Din 7/16 Female 12ft DC to 7GHz 4.921dB 1.30:1 1.5 0.1dB ConductRF Only SF18G-N1T1-F05 Type-N Male TNC Male 5ft DC to 18GHz 3.897dB 1.30:1 2.0 0.1dB N9910X-705 SF18G-N1TF-F05 Type-N Male TNC Female 5ft DC to 18GHz 3.897dB 1.30:1 2.0 0.1dB N9910X-704 SF18G-N1S1-F05 Type-N Male SMA Male 5ft DC to 18GHz 3.897dB 1.30:1 2.0 0.1dB ConductRF Only SF18G-N1SF-F05 Type-N Male SMA Female 5ft DC to 18GHz 3.897dB 1.30:1 2.0 0.1dB ConductRF Only SF27G-E1EF-1M0 3.5mm Male 3.5mm Female 1M DC to 27GHz 3.467dB 1.30:1 4.0 0.2dB N9910X-708 SF27G-EFEF-1M0 3.5mm Female 3.5mm Female 1M DC to 27GHz 3.467dB 1.30:1 4.0 0.2dB N9910X-709 SW50G-C1CF-1M0 2.4mm Male 2.4mm Female 1M DC to 50GHz 6.210dB 1.30:1 8.0 0.5dB N9910X-714 SW50G-CFCF-1M0 2.4mm Female 2.4mm Female 1M DC to 50GHz 6.210dB 1.30:1 8.0 0.5dB N9910X-715 Images for illustration only, Data subject to change 17B-SFG Sales ConductRF.com - Tel: +1 978 374 6840 - www.ConductRF.comX-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for Other Tools category: Click to view products by CONDUCTRF manufacturer: Other Similar products are found below : CR-05FL7--150R CR-05FL7--698K 899-2-KT46 899-5-KT46 CR-0AFL4--332K CR-12FP4--260R 5718X-01PD-19RO CRCW04021100FRT7 CRCW04021961FRT7 5800-0090 CRCW04024021FRT7 CRCW040254R9FRT7 CRCW0603102JRT5 59065-5 00- 8273-RDPP 00-8729-WHPP 593033 593058 593072 593564100 593575 593591 593593 LTILA506SBLAMNBL CRCW08052740FRT1 LUC-012S070DSM LUC-018S070DSP 599-2021-3-NME 599-JJ-2021-03 00-5080-YWPP 5E4750/01-20R0-T/R LW1A-L1-GD LW1A-L1- GL LW1A-P1-GD LW1L-A1C10V-GL LW1L-M1C70-A 0202-0173 00-9089-RDPP CRCW2010331JR02 01-1003W-8/32-10 601-GP-08- KT39 601-JJ-06 601-SPB 601YSY 602-JJ-03 602SPB 602Z 603-JJ-07-FP 603-JJY-04 604J
