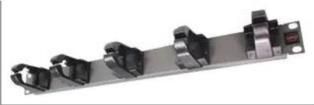

Cable Management FEATURES AND SPECIFICATIONS Panels 2U Double-Sided Ring Run Panel Features and Benefits Five rings for horizontal management Cable Management Panels are of larger category cables and areas of provided in multiple styles to assist high cable density with the additional with the management of patch cords. feature of five cable management rings on the backside. Ring Run Covers provide a sleek, tidy exterior for the 1-and 2U Ring Run 1U Cable Management Panel Panels while maintaining access with Designed specifically for ease of daily snap-on/snap-off ease. moves and changes with the additional feature of a snap on cover. 1U Ring Run Five rings for horizontal management EZ Bar Cable Management Panel of small-to-medium cable requirements. Mounted to the backside of a rack with cable management and routing 2U Ring Run achieved with Velcro tie wraps. Five rings for horizontal management of larger category cables and areas of 2U Through-the-Rack Panel high cable density. Applicable for front- or rear-rack mounting seven arms support cable 2U High Density Ring Run passage through six oval cutouts Five rings, 3 for horizontal and 2 for which permit ease of access for hub vertical cable management, as well connection. Supplied with a hinged as secondary rings for more precise cover for easy access. routing of individual cables for cross- connect. Technical Information Mechanical Characteristics 1U Horizontal/Vertical Ring Run Panel Five rings, 3 for horizontal and 2 for Material: Cold Rolled Steel vertical cable management, designed Thickness: 1.5mm (.06) for cross connect wire or small Finish: Graphite Grey quantity cable requirements. Powdercoat/ Option for Black 2U Horizontal/Vertical Ring Run Ring Double the capacity of the 1U Material: Thermoplastic Horizontal/Vertical. UL94V-0 Cover 1U Deep Horizontal/Vertical Ring Run Material: Graphite Grey Five deep rings, 3 for horizontal and Extruded UV Grade 2 for vertical cable management. Rigid PVC Manages the same volume of cable as the 2U Horizontal/Vertical yet in one Reference Information rack position. Parts List for Panels n Cable Management Panel 1U Deep Ring Run Panel n Mounting Screws Five deep rings for horizontal cable n Assembly Instructions management equaling the cable capacity of the 2U Ring Runs yet in Parts List for Panels with Cover one rack position. n Cable Management Panel with Cover 2U Double Density Ring Run Panel n Mounting Screws Three double density, double-position n Assembly Instructions rings for maximum cable capacity and horizontal cable management. Parts List for Covers n Ring Run Cover n Assembly Instructions MOLEX PREMISE NETWORKS Americas EMEA APAC Tel: 630 969 4550 Tel: 44 (0)2392 205800 Tel: 61 3 9971 7111 www.molexpn.com www.molexpn.co.uk www.molexpn.com.au 2015, Molex Premise Networks Printed in the UK Form 25.B0xxG CMA-00023 Page 1 of 3 Issue 2 Please refer to our website at Cable Management FEATURES AND SPECIFICATIONS Panels 1U Ring Run 2U Ring Run 2U High Density Ring Run Dimensions: 44mm x 483mm x 64mm Dimensions: 89mm x 483mm x 66mm Dimensions: 89mm x 483mm x 127mm (1.75H x 19W x 2.5D) (3.5H x 19W x 2.6D) (3.5H x 19W x 5D) Shipping Weight: 588g (1 lb. 5 oz.) Shipping Weight: 924g (2 lb. 1 oz.) Shipping Weight: 1008g (2 lb. 4 oz.) 1U Horizontal/Vertical Ring Run 2U Horizontal/Vertical Ring Run 1U Deep Horizontal/Vertical Ring Run Dimensions: 44mm x 483mm x 127mm Dimensions: 89mm x 483mm x 127mm Dimensions: 44mm x 483mm x 127mm (1.75H x 19W x 5D) (3.5H x 19W x 5D) (1.75H x 19W x 5D) Shipping Weight: 658g (1 lb. 7.5 oz.) Shipping Weight: 1106g (2 lb. 7.5 oz.) Shipping Weight: 728g (1 lb. 10 oz.) 2U Ring Run Panel with Cover 1U Cable Management Panel 1U Deep Ring Run Dimensions: 89mm x 483mm x 64mm Dimensions: 44mm x 483mm x 74mm Dimensions: 44mm x 483mm x 127mm (3.5H x 19W x 2.6D) (1.75H x 19W x 2.9D) (1.75H x 19W x 5D) Shipping Weight: 1064g (2 lb. 6 oz.) Shipping Weight: 588g (1lb. 5 oz.) Shipping Weight: 728g (1 lb. 10 oz.) 2U Double Density Ring Run EZ Bar Cable Management Panel 1U Ring Run Panel with Cover Dimensions: 89mm x 483mm x 127mm Dimensions: 25mm x 483mm x 38mm Dimensions: 44mm x 483mm x 64mm (3.5H x 19W x 5D) (1H x 19W x 1.5D) (1.75H x 19W x 2.5D) Shipping Weight: 1246g (2 lb. 12.5 oz.) Shipping Weight: 364g (13 oz.) Shipping Weight: 728g (1 lb. 10 oz.) 2U Double Sided Ring Run 2U Through-the-Rack Panel Dimensions: 89mm x 483mm x 203mm Dimensions: 89mm x 483mm x 102mm (3.5H x 19W x 8D) (3.5H x 19W x 4D) Shipping Weight: 1204g (2 lb. 11 oz.) Shipping Weight: 588g (1 lb. 5 oz.) MOLEX PREMISE NETWORKS Americas EMEA APAC Tel: 630 969 4550 Tel: 44 (0)2392 205800 Tel: 61 3 9971 7111 www.molexpn.com www.molexpn.co.uk www.molexpn.com.au 2015, Molex Premise Networks Printed in the UK Form 25.B0xxG CMA-00023 Page 2 of 3 Issue 2 Please refer to our website at
