PP001544

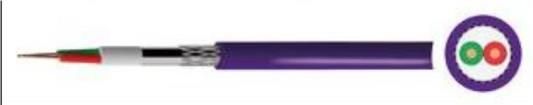

Profibus DP Fast-Connect L2/FIP PVC Single Pair Cable Application This single pair Profibus DP cable for Fast-Connect, installed indoors in fixed and occasional flexing applications. A fieldbus standard that supports a wide variety of Profibus DP (Decentralized Peripherals) applications in automated manufacturing. Depending on bit rates, segment lengths of up to 1,200m can be achieved. Characteristics Max. Operating Voltage : 300V Temperature Rating : Fixed: -40C to +70C Flexed: -10C to +50C Minimum Bending Radius : Fixed 12 overall diameter Cable Standards IEC 61158, EN 50170 Fire Retardant according to: IEC 60332-1 UK Laboratory Tested This product is subject to the Quality Assurance protocols of The Cable Lab, a UKAS accredited ISO 17025 cable testing laboratory. Testing includes vertical flame, conductor resistance, tensile & elongation, and dimensional consistency, verified to published standards and approved product drawings. Regulatory Compliance This cable meets the requirements of the Low Voltage Directive 2014/35/EU and the RoHS Directive 2011/65/EU. RoHS compliance has been tested and confirmed by The Cable Lab as meeting the requirements of the BSI RoHS Trusted TM Kitemark . Construction Conductor Solid Bare Copper Wire (22 AWG) Insulation Foam-Skin Polyethylene Separator PET (Polyester Tape) www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 09/02/18 V1.2Profibus DP Fast-Connect L2/FIP PVC Single Pair Cable Inner Sheath PVC (Polyvinyl Chloride) Shield AL/PET (Aluminium/Polyester Tape) Braid Tinned Copper Wires, 60% Coverage Sheath PVC (Polyvinyl Chloride) Core Identification Green and Red Sheath Colour Violet Dimensions Nominal Nominal Nominal Outer Nominal Cross Nominal Diameter Nominal No. of Diameter Diameter Diameter of Inner Sectional Area of Outer Sheath Weight Pairs of Conductor of Insulation Sheath 2 mm mm kg/km mm mm mm 1 0.35 0.64 2.5 5.5 7.9 76 Electrical Characteristics at 20C Max. DC Maximum Attenuation Max. DC Loop Capacitance Impedance dB/km Conductor Conductor at 800 Hz (320 MHz) Resistance Resistance nF/km (10%) 9.6kHz 38.4kHz 4kHz 16kHz /km /km 115 57.5 29 150 0.3 0.5 2.1 4 Dielectric Strength Minimum Insulation Resistance Maximum Installation Pulling kV AC / 1 min G kM N Cond/Cond Cond/Shield 1.5 1.5 5 100 Part Number Table Reel Description Part Number Length Profibus DP Fast-Connect 100m PP001544 L2/FIP PVC Single Pair Cable Important Notice : This data sheet and its contents (the Information) belong to the members of the Premier Farnell group of companies (the Group) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Groups liability for death or personal injury resulting from its negligence. pro - POWER is the registered trademark of the Group. Premier Farnell Limited 2016. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 09/02/18 V1.2
