Product Information

RG59/BU 100M

RG59/BU 100M electronic component of Pro Power

Datasheet
CABLE, COAX, RG59BU, PER M
Manufacturer: Pro Power
This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges



Price (USD)

1: USD 1.4199 ea
Line Total: USD 1.42

0 - Global Stock
MOQ: 1  Multiples: 1
Pack Size: 1

 More Buying Options & Price Grid(s)

Availability Price Quantity
0 - WHS 1


Ships to you between Fri. 17 May to Thu. 23 May

MOQ : 1
Multiples : 1

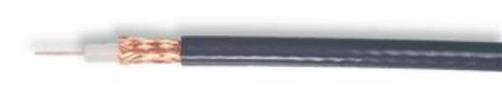

Stock Image

RG59/BU 100M
Pro Power

1 : USD 1.9022

Read More Specifications


Manufacturer
Product Category
Jacket Colour
Wire Gauge
Conductor Area Csa
No Of Max Strands X Strand Size
Reel Length Imperial
Reel Length Metric
Jacket Material
Conductor Material
External Diameter
Coaxial Cable Type
Impedance
Product Range
Attenuation 100Mhz
Attenuation 1Ghz
Attenuation 200Mhz
Capacitance Per Metre
Coaxial Type
Conductor Make-Up
Outer Diameter
Rf Working Voltage
Screen Type Primary
Secondary Insulation Colour
Secondary Insulation Material
LoadingGif

Notes:- Show Stocked Products With Similar Attributes.

More Products By Manufacturer "Pro Power"

Image Description
RG59BULSF electronic component of Pro Power RG59BULSF

CABLE, COAX, RG59B/U, LSZH, 100M
Stock : 0

RG59MIN electronic component of Pro Power RG59MIN

CABLE, COAX, MINI, RG59, 100M
Stock : 0

RG6UALWHTFF100M electronic component of Pro Power RG6UALWHTFF100M

CABLE, COAX, RG6U, WHITE, 100M
Stock : 40200

RG6UTWINBLK electronic component of Pro Power RG6UTWINBLK

CABLE, COAX, RG6U, TWIN, BLACK,100M
Stock : 0

RG6UALBLKFF100M electronic component of Pro Power RG6UALBLKFF100M

CABLE, COAX, RG6U, BLACK, 100M
Stock : 0

RK 420 electronic component of Pro Power RK 420

CABLE Reel HOLDER
Stock : 0

RKT-1/16-X-4FT electronic component of Pro Power RKT-1/16-X-4FT

HEATSHRINK, 1.6MM, CLEAR, 1.2M
Stock : 0

RKT-1/4-X-4FT electronic component of Pro Power RKT-1/4-X-4FT

HEATSHRINK, 6.4MM, CLEAR, 1.2M
Stock : 0

RKT-1/2-X-4FT electronic component of Pro Power RKT-1/2-X-4FT

HEATSHRINK, 12.7MM, CLEAR, 1.2M
Stock : 0

RG59TWIN electronic component of Pro Power RG59TWIN

CABLE, COAX, TWIN, RG59, 100M
Stock : 0

More Products By Category "Unclassified"

Image Description
IM-N-M (IEC) electronic component of Labfacility IM-N-M (IEC)

PLUG, MINI, T/C TYPE N
Stock : 0

CF18JT62R0 electronic component of Stackpole CF18JT62R0

62 Ohms ±5% 0.125W, 1/8W Through Hole Resistor Axial Flame Retardant Coating, Safety Carbon Film
Stock : 30000

RG59BULSF electronic component of Pro Power RG59BULSF

CABLE, COAX, RG59B/U, LSZH, 100M
Stock : 0

IM-N-F (IEC) electronic component of Labfacility IM-N-F (IEC)

SOCKET, MINI, T/C TYPE N
Stock : 0

CF18JT62K0 electronic component of Stackpole CF18JT62K0

RES 62K OHM 1/8W 5% CF AXIAL
Stock : 0

IM-N-FF (IEC) electronic component of Labfacility IM-N-FF (IEC)

SOCKET, MINI PANEL, T/C TYPE N
Stock : 0

CF-1/4-100-5%-R electronic component of Stackpole CF-1/4-100-5%-R

CF-1/4-100-5%-R
Stock : 0

IPL1-106-01-S-D-RA-K electronic component of Samtec IPL1-106-01-S-D-RA-K

12 Positions Header, Shrouded Connector 0.100" (2.54mm) Through Hole, Right Angle Gold
Stock : 1

CF18JT5K10 electronic component of Stackpole CF18JT5K10

5.1 kOhms ±5% 0.125W, 1/8W Through Hole Resistor Axial Flame Retardant Coating, Safety Carbon Film
Stock : 0

RG59MIN electronic component of Pro Power RG59MIN

CABLE, COAX, MINI, RG59, 100M
Stock : 0

Additional Infomation About Product

Coaxial Cable RG59 Series RG59BU 75 Features: Solid polythene insulated 1 / 0.6 mm copper clad steel conductor, braid screened PVC Black sheathed overall Specifications: Nominal outside diameter : 6.15 mm Inner diameter : 1 / 0.64 mm Capacitance : 68 pF / m Nominal attenuation (10 m) : 1.3 dB at 100 MHz 1.9 dB at 200 MHz 4.6 dB at 1,000 MHz Maximum RF working voltage : 3.5 kV peak Polythene / PVC 75 RG Type RG59/BU Conductor Type CCS Conductor Area 1 / 0.58 Insulation Polythene Insulation Diameter 3.7 Screen Braid PAC Screen Diameter 4.4 Sheath PVC Sheath Diameter 6.15 Weight Kg / 100 m 52 67 Capacitance (pF / m) Impendence ( ) 75 Attenuation dB per 100 meters at - 400 MHz 29.5 Velocity Ratio 666 Dimensions : Millimetres Specification Table Description Part Number Cable, Coax, RG59BU, 100 m RG59/BU 100M Important Notice : This data sheet and its contents (theInformatio) belong to the members of the Premier Farnell group of companies (theGrou) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group s liability for death or personal injury resulting from its negligence. Pro-POWER is the registered trademark of the Group. Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 25/05/12 V1.1X-ON Electronics Authorized Distributor Click to view similar products for Pro Power manufacturer. Other Similar products are found below : PPCY4C075100M PPCY3C10050M PPC217 PP001328 PP001316 PP001109 PP001088 PP000940 PP030 PP000909 PP001326 PP001308 PP000877 PP000868 PP000704 PP001163 PP001156 PP001085 PP000510 PP001076 PP000944 PP000914 PP000407 PP000386 PP000870
