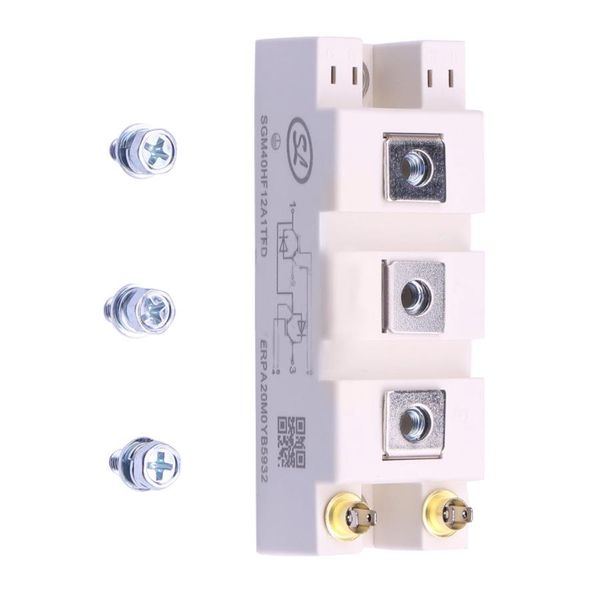

SGM40HF12A1TFD electronic component of Silan
Images are for reference only
See Product Specifications
Part No.SGM40HF12A1TFD
Manufacturer: Silan
Category:IGBT Transistors
Description: 611ns -40℃~+150℃@(Tj) 425ns 40A 1.2kV IGBT模块 5.5V@250uA 413nC@40A,±15V 2.6V@20A,15V 2.2mJ 9.3mJ 1mA@1.2kV 6.58nF@25V 2.6V@40A 80A - IGBTs ROHS
