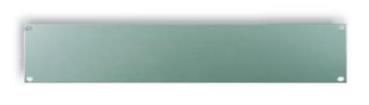

DIPLOMAT Cases accessories FEATURE FRONT PANELS Available in addition to the range of standa rd 19 front panels, these are unique to the DIPLOMAT case. Manufactured in 3mm etched and anodised aluminium with a high quality surface finish they provide a clean and very attractive frontal appearance. They may be used both on the front and rear of the case and are fitted into the bezel in place of the trims, and in front of the 19 fixing facilities. Ordering information Case Size Panel dimensions Height Width Height Width Order code 1012 138,5 304 60-39272 3U 19 138,5 520 60-39268 1012 183 304 60-39273 4U Feature front panels 19 183 520 60-39269 6U 19 272 520 60-39270 1012 AND 19 FRONT PANELS Standard 19 (IEC 297-1, DIN 41494 pt1) front panels are available in satin anodised aluminium of 3mm thickness. Ordering information Height Width Order code 1U 19 (482mm) 50-0767 1012 (266,7mm) 50-0763 2U 19 (482mm) 50-0768 1012 (266,7mm) 50-0764 3U 19 (482mm) 50-0769 1012 (266,7mm) 50-0765 4U 19 (482mm) 50-0770 19 front panels 6U 19 (482mm) 50-0772 9U 19 (482mm) 50-24284 FRONT BEZEL TRIMS These provide an attractive finish to the DIPLOMAT cases when the equipment has been installed. They are available in two versions two-part highlighted and two-part plain. The highlighted versions are mounted from the front of the unit for easy access and supplied with the standard highlight colour (Pantone green). The plain version is mounted from the rear of the bezel, providing a clean fronted appearance and offering additional security. Ordering information Height Description Order code Plain two part 760-236865 3U Colour two part 760-238510 Front bezel trims Plain two part 760-236866 4U Colour two part 760-238511 Plain two part 760-236867 6U Colour two part 760-238512 Plain two part 760-236868 9U Colour two part 760-238513 10 11X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for vero manufacturer: Other Similar products are found below : 173-202579H 503-232983F 503-232948H 503-232971B 20-313145 16-269316 503-232963A 75-265742 75-38118 950-201784G 16- 269313 75-265739 503-232946A 20-313139 18-1657 20-313138 20-313144 75-227911 18-0222 645-10028 75-265740 01-0042 75-3019 75-227895 75-227901 503-232985B 20-313140 75-227910 503-232954B 20-313143 01-0021 20-2136 20-313137 75-2861 75-226685 950-202001E 75-2860 20-2137
