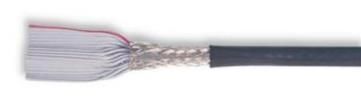

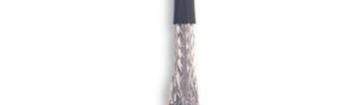

3M Round, Shielded/Jacketed, Flat Cable .050 28 AWG Stranded, Mass Terminatable, PVC/PVC 3659 Series Round construction permits easier routing 28 AWG wire on .050 inch pitch permits mass termination to broad line of IDC connectors Continuous split/bond repeat allows for mass termination on 2.4 inch centers (approximate) Primary cable is zippable for branching or discrete terminations Meets external wiring requirements of National Electrical Code, Article 725 (CL2) UL listed for USA and Canadian markets Dual shielding provides 35 db average shielding effectiveness See Regulatory Information Appendix (RIA) for chemical compliance information (RIA E1 & C1 apply) Date Modified: May 11, 2009 TS-0083-B Sheet 1 of 2 Physical Jacket Material: Polyvinyl Chloride (PVC) Color: Black Primary Material: PVC Color: Gray (UL) CL2 75C 28 AWG or AWM 20267 3M NU Marking Standard: C AWM IIA/B 80C 300V FT1 EU <50V Conductors: 28 AWG, 7 36 AWG 7 0.127 Tinned Stranded Copper Shielding: 0.001 0.03 Thick Aluminum/Polyester Film Foil and 90% Coverage Tinned Copper Braid Electrical Voltage Rating: USA: N.E.C. 725, CL2 or AWM 300V Canada: 300V EU: <50V 10 Insulation Resistance: > 1 10 /10 ft. 3m Characteristic Impedance: Unbalanced Balanced 62 106 Capacitance: 27.7 pF/ft 90.88 pF/m 15.2 pF/ft 49.9 pF/m Inductance: 0.11 /ft 0.35 H/m 0.17 /ft 0.57 d/m Propagation Delay: 1.72 ns/ft 5.64 ns/m 1.62 ns/ft 5.31 ns/m Velocity of Propagation: 59% 62% Note: Unbalanced is measured between ground-signal-ground conductors with shield grounded. Balanced is measured between signal conductors within a pair, with the shield ofl ating. Environmental Temperature Rating: USA: -20 C to +105 C Canada: -20 C to +80 C Flammability Rating: USA: VW-1 Canada: FT1 UL File No.: E118773, Power Limited Circuit Cable: CL2 (or AWM Style 20267) 3M is a trademark of 3M Company. 3 Interconnect Solutions For technical, sales or ordering information call 3M Round, Shielded/Jacketed, Flat Cable .050 28 AWG Stranded, Mass Terminatable, PVC/PVC 3659 Series Number of Dimension B Ref 3M Part Number Dimension A Conductors (See Note 2) Inch 09 3659/09 0.27 6.9 0.40 10.2 mm 10 3659/10 0.27 6.9 0.45 11.4 Tolerance Unless Noted 14 3659/14 0.31 7.9 0.65 16.5 .0 .00 .000 15 3659/15 0.31 7.9 0.70 17.8 C Inch .1 .05 .010 16 3659/16 0.31 7.9 0.75 19.1 Dimensions for Reference Only 20 3659/20 0.34 8.6 0.95 24.1 24 3659/24 0.37 9.4 1.15 29.2 25 3659/25 0.37 9.4 1.20 30.5 26 3659/26 0.37 9.4 1.25 31.8 34 3659/34 0.41 10.4 1.65 41.9 36 3659/36 0.43 10.9 1.75 44.5 37 3659/37 0.43 10.9 1.80 45.7 40 3659/40 0.43 10.9 1.95 49.5 50 3659/50 0.48 12.2 2.45 62.2 60 3659/60 0.51 13.0 2.95 74.9 64 3659/64 0.54 13.7 3.15 80.0 Contact 3M for availability of additional conductor counts. 2.4 Ref 61 1.0 Ref. Bonded 25 R Split A B Paper Braid Mfgr Option Aluminum .026 Min 0.66 Polyester 0.050 Typ PVC Jacket Film Foil 1.27 PVC Primary Insulation 28 AWG, 7 X 36 AWG 7 X 0.127 Tinned Stranded Copper Conductors Notes: 1. Red marking on one edge of primary cable designates wire 1. 2. Dimension B pertains to bonded area only. Ordering Information 3659 / XX XX XX Blank = Standard SF = Splice Free Blank = Standard SO = Continuously Bonded Wire (No Split) Number of Conductors (See Table) Note: Available in standard lengths of 100 ft or 300 ft rolls, please specify when ordering. Contact 3M for availability of TS-0083-B additional conductor counts and/or custom roll lengths. Sheet 2 of 2 3M is a trademark of 3M Company. 3 Interconnect Solutions For technical, sales or ordering information call
