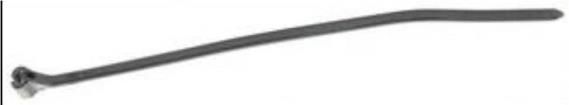

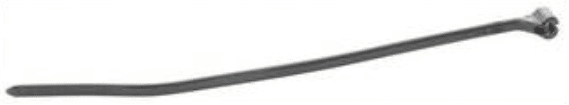

Standard T&B Catalog Number: TY25MX UPC Number: 78621082467 Status: Active Description: Cable Tie, Black Polyamide (Nylon 6.6) for Temperatures up to 105 Degrees Celsius (220 F), Weather and Ultraviolet Resistant for Indoor and Outdoor Applications, UL/EN/CSA62275 Type 2/21S Rated for AH-2 Plenum and as a Flexible Cable and Conduit Support, Length of 185.67mm (7.31 Inches), Width of 4.67mm (0.184 Inches), Thickness of 1.09mm (0.043 Inches), Tensile Strength Rating of 222 Newtons (50 Pounds), Military Specified (MIL-SPEC MS3367-1-0), Bulk Pack Features Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulk- heads. Non-magnetic stainless steel locking device insures both maximum strength and the right tight- ness every time. Because there are no notches, Ty-Rap ties provide an infinite number of locking positions while fasten- ing the tie at the precise bundle diameter needed. The No-Slip Tail provides easy grip during tension- ing. Ty-Rap ties feature a unique friction surface de- signed to reduce slippage during installation. Smooth, notchless body reduces stress concentra- tion points under tension, making the tie stronger and lower profile than notched body ties. Ribbed and Stippled body grips the bundle and prevents slippage. Rounded edges protect insulation, pre- venting sharp edges from damaging cables. General Material Nylon 6.6 Weather Resistant Color Black Dimension Information Nominal Length (inches) 7 Length (inches) 7.31 Width (inches) .185 Max. Wire Bundle Diameter (inches) 1.75 Specifications Military Standard Part No. MS3367-1 Temperature Rating -40F to 185F Flammability Rating UL 94 V-2 Tooling Application Tools ERG50, WT1-TB Packaging T&B Order Multiple 1000 T&B Inner Pack 1000 Package in Units 10000 Package Type Bulk T&B Sold in UOM Each T&B Weight Per UOM 0.25 lbs. per 100Application Support Material Selection Guide Available on Website Available Colors Available on Website Certifications RoHS Compliance Yes Certifications File Nbr: E49405 For further technical assistance, please contact us... Thomas & Betts - USA T&B Technical Support Hours: 7AM - 6PM CDT 8155 T&B Blvd. MS 3B-50 Monday-Friday Memphis, TN 38125 8155 T&B Blvd. Phone: (888) 862-3289 www.tnb.com Memphis, TN 38125 Fax: (901) 252-1321 Email:techsupport tnb.com
