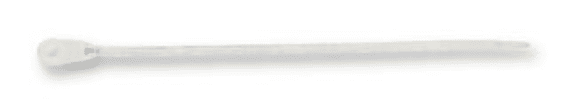

Premium cable ties with steel locking barb 1.1 Product reference structure for standard ties To the standard Product Reference, you can add special order codes for: material, packaging size, material properties and colours. Example: Tie Dimension Code TY XXXXM TY C 5 25 M X R Material Colour Packaging size Material properties Rack Bag with Euroslot Standard, Standard, X UV-resistant RAL (TY23, TY24 Polyamide 6.6 1000/500 pieces and TY25 only) FR Flame-retardant H Temperature = natural B Workbench box, according to resistant +105 C 0 = black 9017 1000 pieces UL 94V-0 C Polyamide 12 1 = brown 8004 P Polypropylene 2 = red 3027 5 Small bags *HTPolyamide 4.6 3 = orange 2003 Z Tefzel 100/50 pieces High temperature 4 = yellow 1018 V Halar 5 = green 6017 D Delrin ** 6 = blue 5012 7 = purple 4005 8 = grey 7032 Available in 1000/500 packs only 9 = white 9001 UV-resistant material, colour: black Note: Flame-retardant material, colour: milky white (approx. RAL 1013) When ordering types conforming to MIL 3367, * Only for specific applications - contact sales office colour 9 corresponds to ** Only for Deltec cable ties natural Tefzel and Delrin are registered trademark of DuPont de Nemours Halar is a registered trademark of Solvay Solexis 10Premium cable ties with steel locking barb 1.1 Special ties Thomas & Betts has developed a range of special Ty-Rap cable ties, having the same main characteristics as the standard ties like the stainless steel locking barb (see pages 8 and 9), plus some additional features to provide an appropriate and elegant solution to some specific applications. Special ties with mounting hole Can be directly mounted onto a support with screws, bolts or rivets Mounting and bundling in one maintenance-friendly assembly. Available in different versions with different positioning of mounting hole Typical applications Cable harness manufacture and pre- and end- mounting of bundles and parts. Maintenance friendly mounting of Technical Information cables, tubes and parts in all types and sizes of machines and installations - indoor and outdoor. Material - Moulding Polyamide 6.6 Material - Locking barb 316 grade stainless steel TYXXM, TYXXMX Temperature range -40C to +85C Colour Natural or UV-resistant black (see table) Flammability rating UL 94 V-2 Other properties UV-resistant (black), Halogen free Silicone free TYF35M Approvals VG approved E49405* VG95387 Ordering Information part 4, type B PRODUCT REF.COLOUR DIAMETER LENGTH WIDTH THICKNESS BUNDLE DIAMETER MINIMUM QUANTITY TOOLING OF MOUNTING LW FROM ... TO TENSILE STRENGTH HOLE mm mm mm mm mm N pieces TY33M natural 3.0 102 2.3 0.9 2 - 16 80 1000 ERG299 TY33MX UV-resistant black 3.0 102 2.3 0.9 2 - 16 80 1000 TR227 TY34M natural 4.4 151 3.5 1.0 2 - 29 180 1000 WT193A TY34MX UV-resistant black 4.4 151 3.5 1.0 2 - 29 180 1000 TY635M natural 4.0 198 4.7 1.1 3.5 - 45 220 1000 ERG297 TY635MX UV-resistant black 4.0 198 4.7 1.1 3.5 - 45 220 1000 ERG299 TY35M natural 5.1 199 4.7 1.1 3.5 - 45 220 1000 TR227 TY35MX UV-resistant black 5.1 199 4.7 1.1 3.5 - 45 220 1000 WT193A TY1435M natural 6.7 198 4.7 1.1 3.5 - 45 220 1000 TY37M natural 6.7 356 7.7 2.0 6 - 90 540 500 ERG297, L-500-EU ERG297, ERG299 TYF35M natural 4.0 186 4.7 1.2 3.5 - 45 220 1000 TR227, WT193A * UL recognition not applicable for UV-resistant black version For tooling specifications, see pages 92 to 99 17
