AM2DS-0503DJZ Aimtec

Name: AM2DS-0503DJZ
Brand: Aimtec
SKU: AM2DS0503DJZ_Aimtec
Availability: InStock
Rating: 5 (11 reviews)

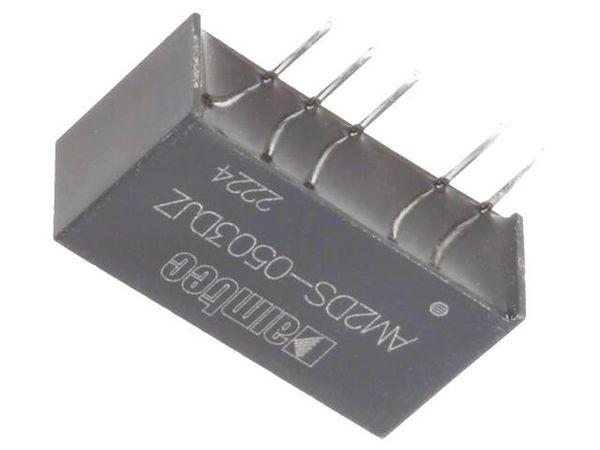

AM2DS-0503DJZ electronic component of Aimtec

Images are for reference only, See Product Specifications

X-On Electronics has gained recognition as a prominent supplier of AM2DS-0503DJZ Isolated DC/DC Converters across the USA, India, Europe, Australia, and various other global locations. AM2DS-0503DJZ Isolated DC/DC Converters are a product manufactured by Aimtec. We provide cost-effective solutions for Isolated DC/DC Converters, ensuring timely deliveries around the world.

Part No.	AM2DS-0503DJZ
Manufacturer:	Aimtec
Category:	Isolated DC/DC Converters
Description:	Converter: DC/DC; 2W; Uin: 4.5÷5.5V; Uout: 3.3VDC; Uout2: -3.3VDC
Datasheet:

Price (USD)

1: USD 5.712 ea
Line Total: USD 5.71

Availability : 24

Ship by Wed. 26 Nov to Fri. 28 Nov

Qty Unit Price
1 $ 5.712
5 $ 5.53
25 $ 5.432
100 $ 5.362

AM2DS-0503DJZ More Buying Options & Price Grid(s)

Please wait...

Availability

Price (USD)

Buy Price

Quantity

Availability 24

Ship by Wed. 26 Nov to Fri. 28 Nov

MOQ : 1
Multiples : 1

Qty Unit Price
1 $ 5.712
5 $ 5.53
25 $ 5.432
100 $ 5.362

Specifications

Manufacturer

Aimtec Aimtec

Product Category

Isolated DC/DC Converters Isolated DC/DC Converters

Operating Temperature

- 40 To 105°C - 40 To 105°C

Case

SIP7 SIP7

Power

2 W 2 W

Body Dimensions

19.65x7.05x10.16mm 19.65x7.05x10.16mm

Output Voltage

3.3 VDC 3.3 VDC

Output Current

303 mA 303 mA

Insulation Voltage

1.5 KVDC 1.5 KVDC

Input Voltage

4.5 To 5.5 V 4.5 To 5.5 V

Type Of Converter

DC/DC DC/DC

Output Voltage 2

- 3.3 VDC - 3.3 VDC

Efficiency

75 % 75 %

Protection

short circuit protection SCP short circuit protection SCP

Output Current 2

303 mA 303 mA

Manufacturer Series

AM2DS - JZ AM2DS - JZ

Notes:- Show Stocked Products With Similar Attributes.
