AMEL30-5S277HAVZ Aimtec

Name: AMEL30-5S277HAVZ
Brand: Aimtec
SKU: AMEL305S277HAVZ_Aimtec
Availability: InStock
Rating: 5 (11 reviews)

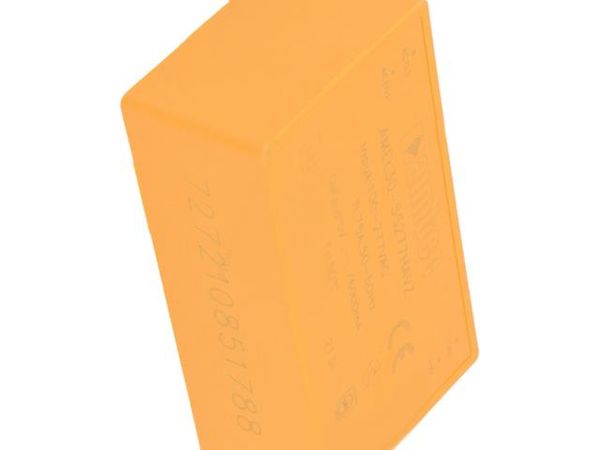

AMEL30-5S277HAVZ electronic component of Aimtec

Images are for reference only
See Product Specifications

Part No.	AMEL30-5S277HAVZ
Manufacturer:	Aimtec
Category:	AC/DC Power Modules
Description:	Converter: AC/DC; 30W; 85÷305VAC; Usup: 100÷430VDC; Uout: 5VDC; 86%
Datasheet:	AMEL30-5S277HAVZ Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 15.7731 ea
Line Total: USD 15.77

Availability - 68
Ship by Tue. 17 Jun to Thu. 19 Jun

MOQ: 1 Multiples: 1
Pack Size: 1

AMEL30-5S277HAVZ More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

68

Ship by Tue. 17 Jun to Thu. 19 Jun

MOQ : 1
Multiples : 1

1 : USD 15.7731
4 : USD 15.7143
10 : USD 15.2145
60 : USD 14.8323

Specifications

Manufacturer

Aimtec Aimtec

Product Category

AC/DC Power Modules AC/DC Power Modules

Category

AC/DC Power Modules AC/DC Power Modules

Mounting

PCB PCB

Power

30 W 30 W

Weight

100 g 100 g

Output Current

6 A 6 A

Output Voltage

5 VDC 5 VDC

Protection

short circuit protection SCP, anti - overload OPP, anti - overvoltage OVP short circuit protection SCP, anti - overload OPP, anti - overvoltage OVP

Supply Voltage

85 To 305 VAC , 100 To 430 VDC 85 To 305 VAC , 100 To 430 VDC

Body Dimensions

69.5x39x24mm 69.5x39x24mm

Operating Temperature

- 40 To 85 C - 40 To 85 C

Efficiency

86 % 86 %

Type Of Converter

AC/DC AC/DC

Insulation Voltage

4.2 kV 4.2 kV

Manufacturer Series

AMEL30 - 277HAVZ AMEL30 - 277HAVZ

Power Consumption Without Load

0.1 W 0.1 W
