52 Antex

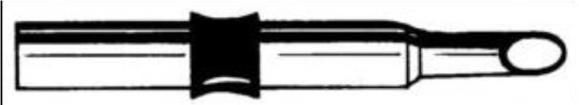

690-SD SOLDERING STATION The 690-SD is a multiprogramme, digital read-out, static dissipative temperature controlled soldering station and comprises: 690-SD Static dissipative soldering unit SD50 Static dissipative temperature controlled soldering iron ST6 Bench stand Built to meet US MIL Std2000A and EN 100015-1, the temperature range is 65 to 450 C and repeatability to 2 C. Programme selection and settings are made using three buttons. Each station is shipped with easy to use multi-lingual instructions. The digital read-out displays the following: 2 memory settings Centigrade or Fahrenheit Dial-in bit selection for accurate offset Lockable with PIN security Choice of language Basic diagnostics 660TC SOLDERING STATION The 660TC unit incorporates: 660TC Soldering unit TC50 Temperature controlled soldering iron ST6 Bench stand The unit designed for wall or bench mounting, has a temperature range of 65 to 450 C, selected using the thumbwheel potentiometer. Indicator LED s showpower-o and power to iro. The TC50 included is an ergonomically designed 50 watt cool handled soldering iron which will take any of the ANTEX 1100 series of soldering bits or DST range of SMT desoldering bits. The TC25, a 25 watt iron can be used an option where finer soldering and a low wattage are required. Specification 660TC 690-SD Input voltages available 230, 100/115 230, 100/115 Output to iron 24V, 50W 24V, 50W Element construction Wound Ceramic Sensor type Thermocouple PTCR Tip to earth continuity Yes Yes Maximum leakage current 2.0 1.5 (uA) Accuracy +/- 5% +/- 5 C Bit type fitted 1100 1100 Unit lead length 1.5m PVC 1.5m PVC Iron lead length 1.2m silicone 1.2m silicone Mains plug BP, EP or other BP, EP or other SURFACE MOUNT REWORK KIT The Antex surface mount rework station is an entry level station which gives the user the ability to remove most component types without damage to the circuit board or surrounding components. Each rework tool is heated to the exact temperature required by the component by means of a microprocessor control inside the soldering station. A COST EFFECTIVE SOLUTION TO DESOLDERING SMT COMPONENTS MOST PACKAGE SIZES AVAILABLE 12 DESOLDERING TOOLS INCLUDED WITH THE KIT 50 WATT ESD SAFE SOLDERING IRON AND STATION ALSO INCLUDES SOLDERING IRON STAND AND REWORK TOOL HOLDER. MANY OTHER PACKAGE SIZES AVAILABLE INCLUDING PLCC18 - 68 Reference Package Kit DST-A 1206 / 1210 Included DST-B 1812 Included DST-C 0805 Included DST-D MELF, SOD 80 / 87 Included DST-E SOT23 / 143 Included DST-F SOT89 Included DST-G IC S08 Included DST-H IC SO14 / 16 / QFP 10x5mm Included DST-K various + re-soldering Included 1107 various + re-soldering Included DST-Q ICS020 / QFP 15x8mm Included DST-S IC S028 / QFP 20x8mm Included
