52F970-106-SB2 Api Technologies

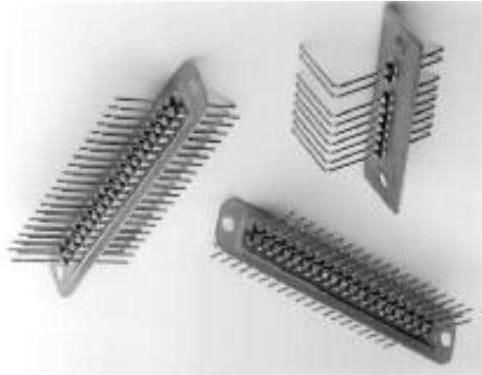

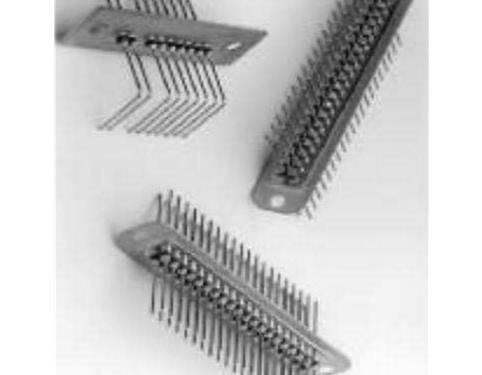

The Electromagnetic Spectrum Innovator DATA SHEET Bolt-In Style Filter Plates The bolt-in style plate provides an excellent method for electronic system interface and EMI filtering. Bolt-in filter plates are available in a variety of plate sizes and up to 74 lines per plate in high-density (2.00mm) and 60 pins per plate in standard density (.100). On the larger plate sizes, APITech ensures structural integrity through a unique coining process. The drawing on the next page shows an electronic system utilizing bolt-in style filter plates. Bolt-in Filter Plate Advantages Eliminates the need to assemble filters into a bulkhead Excellent filtering from 5 MHz to 1 GHz Improved reliability Total cost savings vs. customer installed discrete filter Mixed capacitance values and schematics elements Maximize real estate on PCB Ideal for isolation of electronic compartments to suppress EMI Available in RoHS compliant versions Outperforms surface mount filters over 50 MHz Ordering Infromation Example: 52-970-208-BB2 The part number shown represents a bolt-in style filter plate with 2 rows, 8 filters per row. Filters are C style with a capacitance value of 100pF. The plate length is 1.560, and the leads are bent 90 to the right side. ** 52 970 2 08 B B 2 No. of Filters Filter 970 No. of Rows No. of Lines Filter Designation Plate Length Lead Configuration Plates Bolt-in 1 = 1 row per Row A - T from selection A - 1.060 (26.92mm) 0 - Straight Standard 2 = 2 rows If less than 10, table on page 19. *** B - 1.560 (39.62mm) 1 - 90 (left) Density use a 0 (zero) C - 2.560 (65.02mm) 2 - 90 (right) 971 first. D - 3.560 (90.42mm) 3 - 90 (both) Bolt-in *** To request selective line filtering, a mechanical configuration high-density* or material specification not shown in this catalog, please contact * Maximum capacitance up 400pF C style filter. APITech. We will review your request and provide you with a part ** Replace - with F for RoHS compliant version. number. www. apitech.com 855.294.3800 info apitech.com www.linkedin.com/company/api-technologies-corp-/ 1 092920EDThe Electromagnetic Spectrum Innovator DATA SHEET Bolt-In Style Filter Plates Mechanical Specifications Base Plate Material Brass UNS C26000/C27000 Base Plate Thickness 0.020 inches (.51mm) Plating Tin, RoHS version will be silver Lead Material Copper alloy Lead Plating Gold plate Lead Diameter 0.25 (.64mm) for 0.100 centers (2.54mm) 0.20 (.51mm) for 0.079 centers (2.00mm) Current Rating 5 Amps for 0.25 (.64mm) 3 Amps for 0.50 (.51mm) www. apitech.com 855.294.3800 info apitech.com www.linkedin.com/company/api-technologies-corp-/ 2 092920ED
