8241 Belden

Name: 8241
Brand: Belden
SKU: 8241_Belden
Availability: OutOfStock
Rating: 5 (11 reviews)

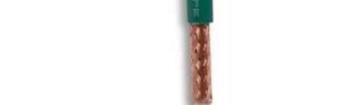

Images are for reference only, See Product Specifications

X-On Electronics has gained recognition as a prominent supplier of 8241 Coaxial Cables across the USA, India, Europe, Australia, and various other global locations. 8241 Coaxial Cables are a product manufactured by Belden. We provide cost-effective solutions for Coaxial Cables, ensuring timely deliveries around the world.

Part No.	8241
Manufacturer:	Belden
Category:	Coaxial Cables
Description:	CABLE, COAX, 8241, BLACK, PER M
Datasheet:	8241 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 5.2519 ea
Line Total: USD 5.25

Availability : 0

Qty	Unit Price
1	$ 5.2519

8241 More Buying Options & Price Grid(s)

Availability

Price (USD)

Quantity

Availability 0

Ship by Tue. 30 Sep to Mon. 06 Oct

MOQ : 1
Multiples : 1

Qty	Unit Price
1	$ 5.2519

Specifications

Manufacturer Belden Belden
Product Category Coaxial Cables Coaxial Cables
Impedance 75 Ohms 75 Ohms
Conductor Material Copper Coated Steel Copper Coated Steel
Jacket Material PVC PVC
Brand Belden Belden
Coaxial Cable Type RG59 RG59
Wire Gauge 23AWG 23AWG
Conductor Area Csa 0.27mm² 0.27mm²
Jacket Colour Black Black
No. Of Max Strands X Strand Size SOLID SOLID
External Diameter 6.15 mm 6.15 mm
Svhc No SVHC (15 - Jan - 2018) No SVHC (15 - Jan - 2018)
Belden Type Number 8241 8241
Cable Ul Style Number UL1354 UL1354
Coaxial Type RG59U RG59U
Conductor Make-Up 1 / 0.58mm 1 / 0.58mm
Outer Diameter 6.15 mm 6.15 mm
Secondary Insulation Colour Black Black
Secondary Insulation Material PVC PVC
Wire Size 23 AWG 23 AWG

8241 Alternative Parts

Image	Part-Description
Hot	8241 Keystone Terminals CRIMP LUG Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges. Stock: 530

We are delighted to provide the 8241 from our Coaxial Cables category, at competitive rates not only in the United States, Australia, and India, but also across Europe and beyond. A long established and extensive electronic component distribution network has enhanced our global reach and dependability, ensuring cost savings through prompt deliveries worldwide. Client satisfaction is at the heart of our business, where every component counts and every customer matters. Our technical service team is ready to assist you. From product selection to after-sales support, we strive to deliver a seamless and satisfying experience. Are you ready to experience the best in electronic component distribution? Contact X-ON Electronics today and discover why X-On are a preferred choice for the 8241 and other electronic components in the Coaxial Cables category and beyond.

More Products By Manufacturer "Belden"

Image	Part-Description
Hot	1035A 0101000 Multi-Conductor Cables 16AWG 1PR UNSHLD 1000ft SPOOL BLACK Stock : 1 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	1035A-BLK-1000 Power Limited Tray Cable - 1 Pair - 16 AWG - 7x24 Strands - 300V - 1000ft - Black. Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	1036A-BLK-1000 TRAY CABLE, 1 TRIAD, 18AWG STRAND (7X26), PVC INSULATION, INSTRUMENTATION BLACK Stock : 1 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	1033A 0101000 Multi-Conductor Cables 20AWG 1PR SHIELD 1000ft SPOOL BLACK Stock : 304 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	1033A-BLK-1000 Tray Cable 2Conductors 20AWG 5.4mm 300VAC Black 304.8m Reel Stock : 2 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	1036A 0101000 Multi-Conductor Cables 18AWG 1TR SHIELD 1000FT SPOOL BLACK Stock : 4 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	10GX13 D151000 Multi-Conductor Cables 23AWG 4PR UNSHLD 1000ft SPOOL BLUE Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	10GX44 0061000 Multi-Conductor Cables CAT6A 4PRB U/UTP LSZH Reel Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	1034A 0101000 Multi-Conductor Cables 3 #16 PVC PVC Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	10GXS32 0091000 Multi-Conductor Cables CAT6A 4PRB U/UTP CMR Reel Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.

More Products By Category "Coaxial Cables"

Image	Part-Description
Hot	8216 010100 Coaxial Cables 26AWG 1C SHIELD 100ft SPOOL BLACK Stock : 169 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	1186A-010-1000 Coaxial Cables 20AWG 1C SHIELD 1000ft SPOOL BLACK Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	FC75-01-CA003 COAX CABLE 75 OHM 3' 1C Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	1026-36 CABLE TEST BNC MALE-BNC MALE 36" Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	7805 010100 Coaxial Cables 25AWG 1C SHIELD 100ft SPOOL BLACK Stock : 23 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	80346275 Coaxial Cables Cable in Meters Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	7518A0811-0 Triaxial Cable Tape/Braid Rayfoam 18AWG 12.06mm Black Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	582197-000 CHEMINAX 75 OHM AWG 18 19 STRANDS OF AWG 30 OPTIM. Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	74020 Wire: coaxial; solid; CCS; PVC; white; 305m; 7mm Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	CA-NTYPE-MF-1 Coaxial Cables Outdoor Coax Cable, N Type Male & Female connectors, 5 ft (1 Pk) Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.

Additional Infomation About Product

Detailed Specifications & Technical Data ENGLISH MEASUREMENT VERSION 8241 Coax - 75 Ohm Coax For more Information please call 1-800-Belden1 General Description: 23 AWG Solid .023 bare copper or bare copper-covered steel conductor, polyethylene insulation, bare copper braid shield (95% cverage), PVC jacket. Physical Characteristics (Overall) Conductor AWG: Coax AWG Stranding Conductor Material Dia. (in.) 1 23 Solid BCCS - Bare Copper Covered Steel 0.023 Total Number of Conductors: 1 Insulation Insulation Material: Insulation Material Dia. (in.) PE - Polyethylene .146 Outer Shield Outer Shield Material: Type Outer Shield Material Coverage (%) Braid BC - Bare Copper 95 Outer Jacket Outer Jacket Material: Outer Jacket Material PVC - Polyvinyl Chloride Overall Cable Overall Nominal Diameter: 0.240 in. Mechanical Characteristics (Overall) Operating Temperature Range: -40C To +75C UL Temperature Rating: 75C Non-UL Temperature Rating: 75C Bulk Cable Weight: 37 lbs/1000 ft. Max. Recommended Pulling Tension: 62 lbs. Min. Bend Radius/Minor Axis: 2.500 in. Applicable Specifications and Agency Compliance (Overall) Applicable Standards & Environmental Programs NEC/(UL) Specification: CM CEC/C(UL) Specification: CM AWM Specification: UL Style 1354 EU Directive 2011/65/EU (ROHS II): Yes EU CE Mark: Yes EU Directive 2000/53/EC (ELV): Yes EU Directive 2002/95/EC (RoHS): Yes EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004 EU Directive 2002/96/EC (WEEE): Yes EU Directive 2003/11/EC (BFR): Yes CA Prop 65 (CJ for Wire & Cable): Yes MII Order 39 (China RoHS): Yes RG Type: 59/U Page 1 of 3 01-05-2017Detailed Specifications & Technical Data ENGLISH MEASUREMENT VERSION 8241 Coax - 75 Ohm Coax RG Type: 59/U Flame Test UL Flame Test: UL1685 UL Loading Suitability Suitability - Indoor: Yes Plenum/Non-Plenum Plenum (Y/N): No Plenum Number: 88241, 82241 Electrical Characteristics (Overall) Nom. Characteristic Impedance: Impedance (Ohm) 75 Nom. Inductance: Inductance (H/ft) .131 Nom. Capacitance Conductor to Shield: Capacitance (pF/ft) 20.5 Nominal Velocity of Propagation: VP (%) 66 Nominal Delay: Delay (ns/ft) 1.54 Nom. Conductor DC Resistance: DCR 20C (Ohm/1000 ft) 49.0 Nominal Outer Shield DC Resistance: DCR 20C (Ohm/1000 ft) 2.6 Nom. Attenuation: Freq. (MHz) Attenuation (dB/100 ft.) 1 .6 10 1.1 50 2.4 100 3.4 200 4.9 400 7.0 700 9.7 900 11.1 1000 12.0 Nom. Power Rating: Freq. (MHz) Rating (W) 50 470 100 310 300 160 500 115 1000 76 Max. Operating Voltage - UL: Voltage 300 V RMS 30 V RMS Max. Operating Voltage - Non-UL: Voltage 1700 V RMS Put Ups and Colors: Item Putup Ship Weight Color Notes Item Desc 8241 002U1000 1,000 FT 38.000 LB RED RG59/U TYPE COAX RED 8241 003U1000 1,000 FT 38.000 LB ORANGE RG59/U TYPE COAX ORG 8241 004U1000 1,000 FT 38.000 LB YELLOW RG59/U TYPE COAX YEL Page 2 of 3 01-05-2017
