Product Information

9506

9506 electronic component of Belden

Datasheet

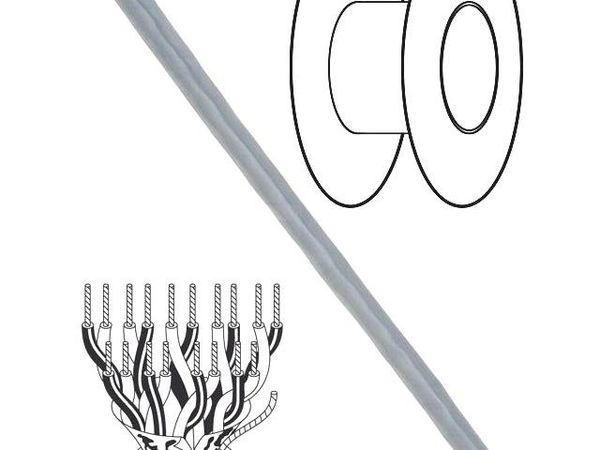

Wire; RS232; 6x2x24AWG; stranded; Cu; shielded; PVC; grey; 305m
Manufacturer: Belden
This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges



Price (USD)

5: USD 5.421 ea
Line Total: USD 27.1

0 - Global Stock
MOQ: 5  Multiples: 5
Pack Size: 5

 More Buying Options & Price Grid(s)

Availability Price Quantity
0 - WHS 1


Ships to you between Fri. 17 May to Thu. 23 May

MOQ : 5
Multiples : 5

Stock Image

9506
Belden

5 : USD 5.499
10 : USD 5.2

Read More Specifications


Manufacturer
Product Category
Jacket Colour
Cable Application
Kind Of Core
Cable Features
Core Structure
Shield Structure
Core Marking
Type Of Wire
Outer Insulation Material
Package Contents
No Of Pairs
Number Of Cores
Core Diameter
Operating Temperature
Cable External Diameter
LoadingGif

Notes:- Show Stocked Products With Similar Attributes.

More Products By Manufacturer "Belden"

Image Description
1035A 0101000 electronic component of Belden 1035A 0101000

Multi-Conductor Cables 16AWG 1PR UNSHLD 1000ft SPOOL BLACK
Stock : 1

1035A-BLK-1000 electronic component of Belden 1035A-BLK-1000

Power Limited Tray Cable - 1 Pair - 16 AWG - 7x24 Strands - 300V - 1000ft - Black.
Stock : 0

1036A-BLK-1000 electronic component of Belden 1036A-BLK-1000

TRAY CABLE, 1 TRIAD, 18AWG STRAND (7X26), PVC INSULATION, INSTRUMENTATION BLACK
Stock : 1

1033A 0101000 electronic component of Belden 1033A 0101000

Multi-Conductor Cables 20AWG 1PR SHIELD 1000ft SPOOL BLACK
Stock : 4

1033A-BLK-1000 electronic component of Belden 1033A-BLK-1000

Tray Cable 2Conductors 20AWG 5.4mm 300VAC Black 304.8m Reel
Stock : 1

1036A 0101000 electronic component of Belden 1036A 0101000

Multi-Conductor Cables 18AWG 1TR SHIELD 1000FT SPOOL BLACK
Stock : 3

10GX13 D151000 electronic component of Belden 10GX13 D151000

Multi-Conductor Cables 23AWG 4PR UNSHLD 1000ft SPOOL BLUE
Stock : 0

10GX44 0061000 electronic component of Belden 10GX44 0061000

Multi-Conductor Cables CAT6A 4PRB U/UTP LSZH Reel
Stock : 0

1034A 0101000 electronic component of Belden 1034A 0101000

Multi-Conductor Cables 3 #16 PVC PVC
Stock : 0

10GXS32 0091000 electronic component of Belden 10GXS32 0091000

Multi-Conductor Cables CAT6A 4PRB U/UTP CMR Reel
Stock : 1

More Products By Category "Ethernet Cables / Networking Cables"

Image Description
95203 electronic component of Goobay 95203

Patch cord; SF/UTP; 5e; stranded; CCA; PVC; blue; 0.25m; 26AWG
Stock : 2

Hot NK5EPC3Y electronic component of Panduit NK5EPC3Y

Ethernet Cables / Networking Cables Category 5E 3 Foot
Stock : 1

CQ2021U electronic component of Logilink CQ2021U

Patch cord; U/UTP; 6; stranded; Cu; LSZH; white; 0.5m; 26AWG
Stock : 33

Hot UTPCH1Y electronic component of Panduit UTPCH1Y

Ethernet Cables / Networking Cables Copper Patch Cord Cat 5e Off Whit
Stock : 1

Hot 2832250 electronic component of Phoenix Contact 2832250

Modular Cable Plug to Plug 8p8c (RJ45, Ethernet) 0.98' (300.0mm) FL CAT5 PATCH 0 3
Stock : 1

32-6PP7 electronic component of Bel Fuse 32-6PP7

Ethernet Cables / Networking Cables 6P6C FLAT, SATIN 7
Stock : 88

93479 electronic component of Goobay 93479

Patch cord; SF/UTP; 5e; stranded; CCA; PVC; white; 1m; 26AWG
Stock : 1

93482 electronic component of Goobay 93482

Patch cord; SF/UTP; 5e; stranded; CCA; PVC; white; 2m; 26AWG
Stock : 0

C6A011S electronic component of Logilink C6A011S

Patch cord; S/FTP; 6a; stranded; Cu; LSZH; white; 0.25m; 26AWG
Stock : 225

PP6U-0.5M/BK electronic component of Gembird PP6U-0.5M/BK

Patch cord; U/UTP; 6; stranded; CCA; PVC; black; Len: 0.5m; 26AWG
Stock : 38

Additional Infomation About Product

TECHNICAL DATA SHEET code 9506 version 4 date 2005-11-03 page 9506 1/2 APPLICATION Instrumentation and computer cable for EIA RS-232 data transmission applications. CONSTRUCTION 1 2 3 4 5 1. Conductor AWG24 (7xAWG32) tinned Cu 2. Insulation Material PVC Diameter over insulation 1.12 0.05 mm Colour of insulation Pair 1 (central): Black and red Pair 2: Black and white Pair 3: Black and green Pair 4: Black and blue Pair 5: Black and yellow Pair 6: Black and brown 3. Foil (Beldfoil) Material Aluminium / Polyester Thickness 9 / 23 m 4. Drainwire AWG20 (7xAWG28) tinned Cu 5. Sheath Material PVC Colour Chrome 060 Minimum wall thickness 0.61 mm Minimum average wall thickness 0.762 mm Nominal diameter over sheath 7.34 mm REQUIREMENTS AND TEST METHODS Electrical: Nominal resistance conductor 78.7 /km Nominal resistance shield 52.5 /km Nominal capacitance conductor to conductor of a pair 98.4 pF/m Nominal capacitance conductor to shield + other cond. 164.0 pF/m Testvoltage conductor-conductor 2500 VDC, 3 seconds Testvoltage conductor-screen 2500 VDC, 3 seconds Voltage rating 300 V RMS Maximum continuous current per conductor 25 C 1.5 A Belden Wire & Cable B.V. All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner TECHNICAL DATA SHEET code 9506 version 4 date 2005-11-03 page 9506 2/2 Mechanical and physical: Flame resistance UL FT4, CSA FT1 Applicable specification UL type CMG, AWM 2464, CEC C(UL) CMG, AWM I/A Temperature range processing and operating -15 to +80 C Temperature range storage -30 to +80 C Minimum bending radius 10 x cable diameter Maximum pulling tension 300 N *Nominal values are for information only. MARKING Colour code 2852: chrome sheath with text BELDEN V 9506 CMG 6PR24 SHIELDED (UL) E108998 OR AWM 2464 OR C(UL) CMG FT4---LL7874 CSA AWM I A 80C 300V FT1 PACKAGING On non-returnable reels with a length of 31 m ( 0%) or on non-returnable reels with a length of 153 m ( 0%) or on non-returnable reels with a length of 305 m ( 0%) or unreel package with a length of 153 m ( 0%) or unreel package with a length of 305 m ( 0%). Each reel is labelled with the following data: Belden Logo. Belden code number. Item description. Length on the reel. Date of manufacture. CE-marking. Belden CDT believes this product to be in compliance with the environmental regulations EU RoHS (Directive 2002/95/EC, 27 January 2003) this is valid for all material produced after the RoHS compliant date for this product. Belden Wire & Cable B.V. All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner
