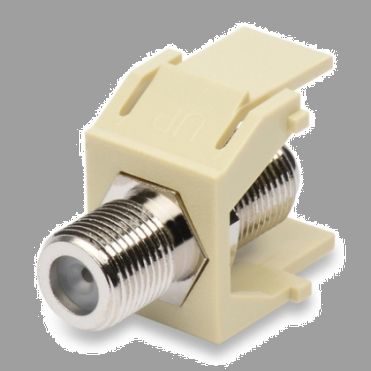

Detailed Specifications & Technical Data METRIC MEASUREMENT VERSION AX105346 Faceplates and Panels - KeyConnect Video F Coax 3GHz, Surface For more Information please call 1-800-Belden1 General Description: KeyConnect Video F, Coax 3GHz, Surface Usage (Overall) Suitable Applications: - Coax Related Parts: - Compatible KeyConnect-style Faceplate and Patch Panel Physical Characteristics (Connectivity) Capacity Access Front Connection: Flush Dimensions Dimensions: Height (mm) Width (mm) Depth (mm) 21.590 17.526 29.972 Materials Materials: Description Material Insert Plastic - UL94V-0 Weight Weight: 0.015 kg Packaging Packaging: 1 unit packaged in a plastic bag. Mechanical Characteristics (Connectivity) Footprint/Type: KeyConnect Connector/Hardware Retention: 88.964 N Storage Temperature Range: -40C To +70C Installation Temperature Range: -10C To +60C Operating Temperature Range: -10C To +60C Applicable Specifications and Agency Compliance (Overall) Applicable Standards & Environmental Programs EU Directive 2002/95/EC (RoHS): Yes EU RoHS Compliance Date (mm/dd/yyyy): 07/01/2006 MII Order 39 (China RoHS): Yes Safety Listing: Bi-national Standard Listed Suitability Suitability - Indoor: Yes Transmission Characteristics (Connectivity) Notes (Overall) Notes: For proper installation refer to Installation Guide PX103826. Visit our web site at Detailed Specifications & Technical Data METRIC MEASUREMENT VERSION AX105346 Faceplates and Panels - KeyConnect Video F Coax 3GHz, Surface AX105346-IV Ivory Put Ups and Colors: Item Putup Ship Weight Color Notes Item Desc Revision Number: 0 Revision Date: 08-07-2013 2017 Belden, Inc All Rights Reserved. Although Belden makes every reasonable effort to ensure their accuracy at the time of this publication, information and specifications described herein are subject to error or omission and to change without notice, and the listing of such information and specifications does not ensure product availability. Belden provides the information and specifications herein on anAS I basis, with no representations or warranties, whether express, statutory or implied. In no event will Belden be liable for any damages (including consequential, indirect, incidental, special, punitive, or exemplary damages) whatsoever, even if Belden has been advised of the possibility of such damages, whether in an action under contract, negligence or any other theory, arising out of or in connection with the use, or inability to use, the information or specifications described herein. All sales of Belden products are subject to Belden s standard terms and conditions of sale. Belden believes this product to be in compliance with EU RoHS (Directive 2002/95/EC, 27-Jan-2003). Material manufactured prior to the compliance date may be in stock at Belden facilities and in our Distributors inventory. The information provided in this Product Disclosure, and the identification of materials listed as reportable or restricted within the Product Disclosure, is correct to the best of Beldens knowledge, information, and belief at the date of its publication. The information provided in this Product Disclosure is designed only as a general guide for the safe handling, storage, and any other operation of the product itself or the one that it becomes a part of. This Product Disclosure is not to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulations based on their individual usage of the product. Page 2 of 2 07-31-2017
