Product Information

CTF100.00100

CTF100.00100 electronic component of Belden

Datasheet

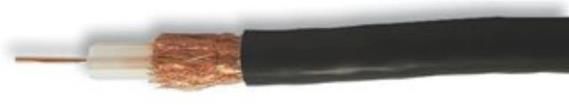

CABLE, COAX, BLACK, 6.65MM, 100M
Manufacturer: Belden
This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges



Price (USD)
N/A

 More Buying Options & Price Grid(s)

Availability Price Quantity
0 - WHS 1

MOQ : 1
Multiples : 1
1 : USD 177.294
N/A

Read More Specifications


Manufacturer
Product Category
Coaxial Cable Type
Wire Gauge
Conductor Area Csa
Impedance
Reel Length Imperial
Reel Length Metric
Conductor Material
No Of Max Strands X Strand Size
Jacket Material
Jacket Colour
External Diameter
Svhc
Attenuation 100Mhz
Attenuation 1Ghz
Attenuation 200Mhz
Attenuation 460Mhz
Attenuation 50Mhz
Attenuation 5Mhz
Capacitance
Dielectric Material
Outer Diameter
Primary Screen Material
LoadingGif

Notes:- Show Stocked Products With Similar Attributes.

More Products By Manufacturer "Belden"

Image Description
1035A 0101000 electronic component of Belden 1035A 0101000

Multi-Conductor Cables 16AWG 1PR UNSHLD 1000ft SPOOL BLACK
Stock : 1

1035A-BLK-1000 electronic component of Belden 1035A-BLK-1000

Power Limited Tray Cable - 1 Pair - 16 AWG - 7x24 Strands - 300V - 1000ft - Black.
Stock : 0

1036A-BLK-1000 electronic component of Belden 1036A-BLK-1000

TRAY CABLE, 1 TRIAD, 18AWG STRAND (7X26), PVC INSULATION, INSTRUMENTATION BLACK
Stock : 1

1033A 0101000 electronic component of Belden 1033A 0101000

Multi-Conductor Cables 20AWG 1PR SHIELD 1000ft SPOOL BLACK
Stock : 4

1033A-BLK-1000 electronic component of Belden 1033A-BLK-1000

Tray Cable 2Conductors 20AWG 5.4mm 300VAC Black 304.8m Reel
Stock : 1

1036A 0101000 electronic component of Belden 1036A 0101000

Multi-Conductor Cables 18AWG 1TR SHIELD 1000FT SPOOL BLACK
Stock : 3

10GX13 D151000 electronic component of Belden 10GX13 D151000

Multi-Conductor Cables 23AWG 4PR UNSHLD 1000ft SPOOL BLUE
Stock : 0

10GX44 0061000 electronic component of Belden 10GX44 0061000

Multi-Conductor Cables CAT6A 4PRB U/UTP LSZH Reel
Stock : 0

1034A 0101000 electronic component of Belden 1034A 0101000

Multi-Conductor Cables 3 #16 PVC PVC
Stock : 0

10GXS32 0091000 electronic component of Belden 10GXS32 0091000

Multi-Conductor Cables CAT6A 4PRB U/UTP CMR Reel
Stock : 1

More Products By Category "Unclassified"

Image Description
F-596-C electronic component of Waldom F-596-C

4 X 1/2 PAN HEAD SCREW
Stock : 1

RVUVK105CH020BW-F electronic component of Taiyo Yuden RVUVK105CH020BW-F

CAP, HIGH FREQ, 0402, 50V, C0H
Stock : 1

MPZ2012-KIT electronic component of TDK MPZ2012-KIT

C216-005
Stock : 1

RVEVK105CH3R9JW-F electronic component of Taiyo Yuden RVEVK105CH3R9JW-F

CAP, HIGH FREQ, 0402, 16V, C0H
Stock : 1

RMJMK063BJ224MP-F electronic component of Taiyo Yuden RMJMK063BJ224MP-F

CAP 0.22UF 6.3VDC X5R 20% SMD 0201
Stock : 1

RMUMK105CG3R9CV-F electronic component of Taiyo Yuden RMUMK105CG3R9CV-F

CAP, MLCC, 0402, 50V, C0G, 3.9
Stock : 1

OSTOQ025350 electronic component of On Shore Technology OSTOQ025350

Conn Shrouded Header (4 Sides) HDR 2 POS 5.08mm Solder ST Thru-Hole
Stock : 1

F-465-C electronic component of Waldom F-465-C

F465C waldom
Stock : 1

F-524-C electronic component of Waldom F-524-C

F524C waldom
Stock : 1

F-040-C electronic component of Waldom F-040-C

F040C waldom
Stock : 1

Additional Infomation About Product

TECHNICAL DATA SHEET Code C TF100 version 1 date 2008-04-09 page COAX CTF100 1/2 APPLICATION Coaxial cables used in cabled distribution networks designed according the European Standard EN 50117-2-1 and En 50117-2-4 operating at frequencies between 5 MHz and 3000 MHz. CONSTRUCTION 1 2 3.1 3.2 4 1 Inner conductor Solid soft annealed copper 2 Dielectric Gas injected LDPE 3.1 Foil Copper-polyester foil 3.2 Braid Annealed copper 4 Sheath PVC according the European Standard HD 624. REQUIREMENTS AND TEST METHODS Test methods in accordance with European standard EN 50117-1. Mechanical characteristics 1. Inner conductor. Diameter: 0.96 mm 0.02 mm 2. Dielectric: Diameter: 4.7 mm 0.15 mm Adhesion: 7.5 75 N at 25 mm 3. Outer conductor: Diameter screen: 5.35 mm 0.15 mm Coverage braid: 55 % 5 % 4. Sheath: Diameter: 6.65 mm 0.2 mm 2 Tensile strength: 12.5 N/mm Elongation at break: 150 % 5. Cable: Storage/operation temperature: -40C to +70C Minimum installation temperature: -5 C Minimum static bend radius: 35 mm Belden Wire & Cable B.V. All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner TECHNICAL DATA SHEET Code C TF100 version 1 date 2008-04-09 page COAX CTF100 2/2 Electrical characteristics Mean characteristic impedance: 75 3 Regularity of impedance: >40dB or <1% DC loop resistance: 41 Ohm/km DC resistance inner conductor: 26 Ohm/km DC resistance outer conductor: 15 Ohm/km Capacitance: 55.0 pF/m 2.0 pF/m Velocity ratio: 0.82 0.02 4 Insulation resistance: > 10 MOhm.km Voltage test of dielectric: 2 kVdc Screening efficiency after flexing 30-1000 MHz: 75 dB 1000 2000 MHz: 65 dB 2000 3000 MHz: 55 dB Return loss at 5-30 MHz: 20 dB* 30-470 MHz: 20 dB* 470-1000 MHz: 18 dB* 1000-2000 MHz: 16 dB* 2000-3000 MHz: 15 dB* *Max. 3 peak values 4 dB lower than specified. Attenuation at Maximal Attenuation at Maximal 5 MHz: 1.6 dB/100m 860 MHz: 19.5 dB/100m 50 MHz: 4.6 dB/100m 1000 MHz: 21.5 dB/100m 100 MHz: 6.5 dB/100m 1750 MHz: 29.0 dB/100m 200 MHz: 9.5 dB/100m 2150 MHz: 32.5 dB/100m 460 MHz: 15.0 dB/100m 2400 MHz: 34.4 dB/100m 800 MHz: 18.8 dB/100m 3000 MHz: 38.4 dB/100m REVISIONS Description Date Initials Belden CDT believes this product to be in compliance with the environmental regulations EU RoHS (Directive 2002/95/EC, 27 January 2003) this is valid for all material produced after the RoHS compliant date for this product. Belden Wire & Cable B.V. All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner
