MRG5900.10100 Belden

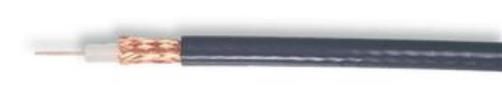

TECHNICAL DATA SHEET code MRG5900 version 3 date 2007-04-10 page COAX RG59 PVC 1/2 APPLICATION Coaxial cables used in cabled distribution networks designed according the European Standard EN 50117 operating at frequencies between 5 MHz and 860 MHz and the International Standard IEC 1196. CONSTRUCTION 1 2 3 4 1 Inner conductor Copper clad steel (conductivity 40%) 2 Dielectric Solid PE 3 Braid Annealed copper 4 Sheath PVC according the European Standard HD 624. REQUIREMENTS AND TEST METHODS Test methods in accordance with European standard EN 50117-1. Mechanical characteristics 1. Inner conductor. Diameter: 0.58 mm 0.02 mm 2. Dielectric: Diameter: 3.7 mm 0.15 mm 3. Outer conductor: Diameter screen: 4.3 mm 0.2 mm Coverage braid: 91 % 4 % 4. Sheath: Diameter: 6.15 mm 0.2 mm 2 Tensile strength: 12.5 N/mm Elongation at break: 150 % 5. Cable: Crush resistance of cable: < 1% (load of 700N) Storage/operating temperature: -15C to +70C Minimum installation temperature: -5 C Minimum static bend radius: 35 mm Belden Wire & Cable B.V. All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner TECHNICAL DATA SHEET code MRG5900 version 3 date 2007-04-10 page COAX RG59 PVC 2/2 Electrical characteristics Mean characteristic impedance: 75 3 W Regularity of impedance: > 40 dB DC resistance inner conductor: 170 W/km Capacitance: 67 pF/m 2 pF/m Velocity ratio: nominal 0.66 4 Insulation resistance: > 10 MW.km Voltage test of dielectric: 2 kVdc Return loss at 5-30 MHz: 20 dB* 30-470 MHz: 20 dB* 470-862 MHz: 18 dB* *Max. 3 peak values 4 dB lower than specified. Attenuation at Nominal 5 MHz: 2.9 dB/100m 1000 MHz: 42.9 dB/100m 50 MHz: 8.0 dB/100m 1350 MHz: 50.0 dB/100m 100 MHz: 11.6 dB/100m 1600 MHz: 54.5 dB/100m 230 MHz: 18.3 dB/100m 1750 MHz: 57.0 dB/100m 300 MHz: 21.2 dB/100m 2150 MHz: 63.0 dB/100m 400 MHz: 25.0 dB/100m 470 MHz: 27.5 dB/100m 860 MHz: 39.2 dB/100m Maximum attenuation is 10% higher. REVISIONS Description Date Initials 1 2005-08-30 2 2005-11-07 3 Conductivity 40% added in text, DC resistance innerconductor changed from 79 to 170 2007-04-10 MJ Ohm/km (mistake in data) Belden declares this product to be in compliance with the environmental regulations EU RoHS (Directive 2002/95/EC, 27 January 2003) this is valid for all material produced after the RoHS compliant date for this product. Belden Wire & Cable B.V. All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner
