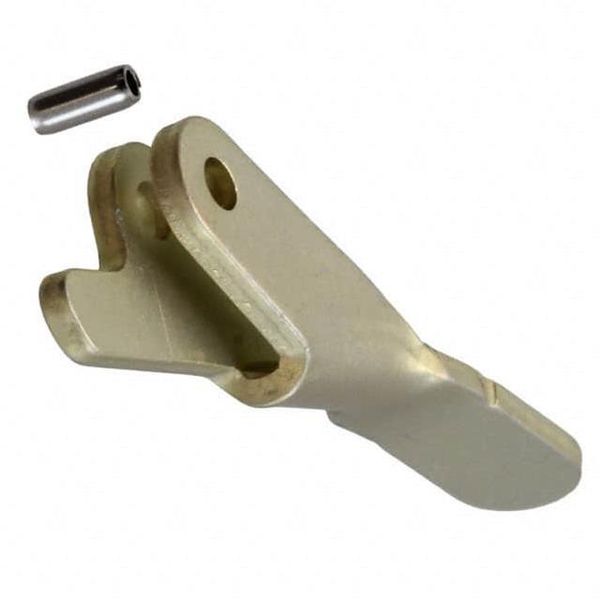

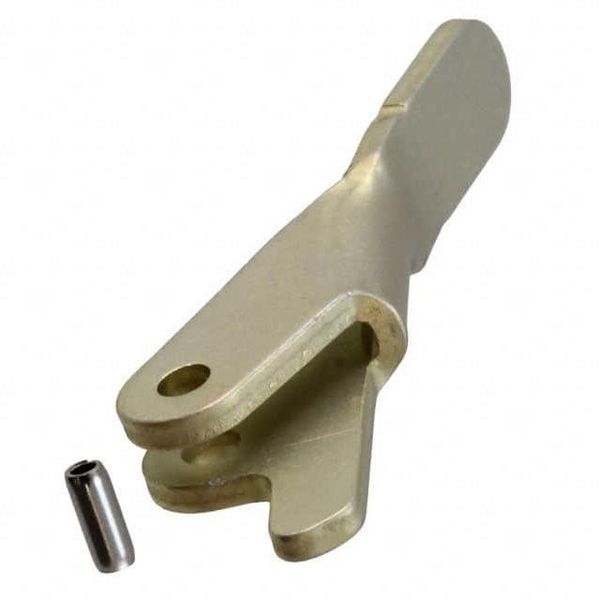

71-3-R Birtcher

SERIES 71 EXTRACTOR FEATURES Lever ratio: 4.17 Tab A option, initiates retain- PART NUMBER CODE: er release action Maximum extraction force STRAIGHT HANDLE (OPTIONAL) per extractor obtained with SERIES 20 pounds finger force=50 MATERIAL (SEE MATERIAL TABLE) pounds for standard and BOARD THICKNESS (SEE BOARD THICKNESS TABLE) 6061-T6 Aluminum Alloy HAND ACTION LEFT OR RIGHT or) ACTUATOR TAB (OPTIONAL) APPLICATIONS FINISH (SEE FINISH TABLE) Series 71 Extractor Meets DSCC 84191 Use with Series 24 Lok- BENT LEG (OPTIONAL) Tainer Retainer NO SPRING PIN (OPTIONAL) BOARD Series 27 Lok-Tainer requires bent leg option of .094 S 71 - M - A - X - A - F - BL - N -1 and -2 PCB s, also 127-2 Series Meets the requirements of .370(9.40) 71 SERIES drawing 84191, Defense Supply EXTRACTOR Center, Columbus (DSCC) .250(6.35) WEIGHT P.C. BOARD PIN INCLUDED .05 ounce Aluminum MODIFICATION 24 SERIES LOK-TAINER .15 ounce Stainless Steel Left Hand Shown .290(7.37) B .188(4.78) A .220 (5.59) .093(2.36) +.003(.08) 1.50 .130(3.30) .140 -.001(.00) (38.1) X .100(2.54) (3.56) 1.00 TAB .070 (25.4) .035(.89) (1.78) .359(9.12) BENT LEG OPTION ACTUATOR TAB OPTION REF BOARD 10 .09(2.3) NOTE ON DIMENSIONS: TOLERANCES: THICKNESS ENGLISH LISTED FIRST UNLESS OTHERWISE SPECIFIED FOLLOWED BY METRIC .XXX(.XX)=.01(.25) IN PARENTHESES .XX (.X) =.02(.5) Part Number code FINISH TABLE COLORS ARE AN ADDITIONAL CHARGE Series 71 Extractor x 71 -x -x -x -x -x -x -x FINISH COLOR DASH Straight Handle option -1 ANODIZE PER MIL-A-8625 RED Select option (blank for none) S -2 ANODIZE PER MIL-A-8625 BLUE -3 ANODIZE PER MIL-A-8625 GREEN Material -4 ANODIZE PER MIL-A-8625 YELLOW Select From Materials Table -5 ANODIZE PER MIL-A-8625 BLACK -6 ANODIZE PER MIL-A-8625 ORANGE Board Thickness -7 ANODIZE PER MIL-A-8625 PURPLE Select dash number from Board Thickness Table -8 ANODIZE PER MIL-A-8625 GRAY -9 ANODIZE PER MIL-A-8625 BROWN Hand Action -10 ANODIZE PER MIL-A-8625 CLEAR Left hand action (see reference diagram on pg.28) L -CC CHEM FILM PER MIL-C-5541 CLEAR Right hand action (see reference diagram on pg.28) R NONE CHEM FILM PER MIL-C-5541 GOLD Actuator Tab option MATERIALS TABLE BOARD THICKNESS TABLE Select option (Blank for none) A DASH MATERIAL DASH THICKNESS A B Finish NONE .063 ALUMINUM Select dash number from Finish Table -1 .031(0.787) .25(6.35) .26(6.60) ALLOY 5052-H32 -2 .063(1.600) .25(6.35) .29(7.37) PER QQ-A-250/8 Bent Leg option -3 .094(2.390) .25(6.35) .29(7.37) T6 .063 ALUMINUM Select option (Blank for none) BL -4 .125(3.180) .29(7.37) .33(8.38) ALLOY 6061-T6 -5 .156(3.960) .29(7.37) .33(8.38) ESD Symbol E CR .063 STAINLESS STEEL (-2 BOARD THICKNESS ONLY) www.birtcherproducts.com 888-957-8291 66X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for apw manufacturer: Other Similar products are found below : 050613B 22-0239 026873F 127B-2-16-3-R 127B-2-12-3-L 71-2-R
