ASMT-YTD9-0AA02 Broadcom

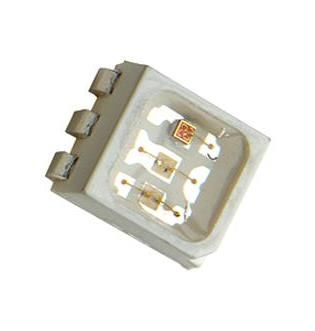

ASMT-YTC7-0AA02 Tricolor PLCC6 Black Body LED Data Sheet Description Features This family of SMT LEDs is packaged in the form of PLCC-6 with Standard PLCC-6 package (Plastic Leaded Chip Carrier) a separate heat path for each LED die, enabling it to be driven with individual addressable pin-out for higher flexibility of at a higher current. driving configuration LED package with diffused silicone encapsulation Individually addressable pin-outs give higher flexibility in Using AlInGaP and InGaN dice technologies circuitry design. With closely matched radiation pattern along the packages X-axis, these LEDs are suitable for indoor full Typical viewing angle 110 color display applications. Compatible with reflow soldering process JEDEC MSL 3 For easy pick and place, the LEDs are shipped in tape and reel. Every reel is shipped from a single intensity and color bin for Water-Resistance (IPX6*) per IEC 60529:2001 better uniformity. The full black body of the LED provides * The test is conducted at the component level by extreme contrast enhancement for short distance viewing of mounting the components on the PCB with proper fine pitch full color display. potting to protect the leads. Customers should perform the necessary tests on the components for their final These LEDs are compatible with the reflow soldering process. applications. CAUTION These LEDs are Class 1C ESD sensitive. Please observe appropriate precautions during Applications handling and processing. Refer to Avago Full color display Application Note AN-1142 for additional details. CAUTION Customers should keep the LED in the MBB when not in use because prolonged exposure to the environment might cause the silver-plated leads to tarnish, which might cause difficulties in soldering. Avago Technologies - 1 -ASMT-YTC7-0AA02 Package Dimensions Data Sheet Package Dimensions 2.30 4 3 5 2 6 1 3.00 3.40 4 3 Red 2 5 Green 6 1 0.20 Blue 0.90 Lead Configuration 1 Cathode (Blue) 2 Cathode (Green) 3 Cathode (Red) 4Anode (Red) 5 Anode (Green) 6Anode (Blue) NOTE 1. All dimensions are in millimeters (mm). 2. Unless otherwise specified, tolerance is 0.20 mm. 3. Encapsulation = silicone. 4. Terminal finish = silver plating. Avago Technologies - 2 - 2.80 1.80 2.30 0.50
