Product Information

CD14013.0025

CD14013.0025 electronic component of Carlisle Interconnect Technologies

Datasheet
CABLE, EHT, RED, 5.2MM, 25M
Manufacturer: Carlisle Interconnect Technologies
This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges



Price (USD)

25: USD 4.6484 ea
Line Total: USD 116.21

0 - Global Stock
MOQ: 25  Multiples: 25
Pack Size: 25

 More Buying Options & Price Grid(s)

Availability Price Quantity
0 - WHS 1


Ships to you between Fri. 17 May to Thu. 23 May

MOQ : 1
Multiples : 1

Stock Image

CD14013.0025
Carlisle Interconnect Technologies

1 : USD 156.1097
5 : USD 141.6602
10 : USD 138.7662

Read More Specifications


Manufacturer
Product Category
Voltage Rating
Conductor Material
Wire Gauge
Conductor Area Csa
Jacket Colour
Reel Length Imperial
Reel Length Metric
No Of Max Strands X Strand Size
External Diameter
Jacket Material
Approval Specification
Svhc
Conductor Make-Up
Current Rating
Operating Temperature Max
Operating Temperature Min
Outer Diameter
Resistance Per Metre
Voltage Rating V Ac
LoadingGif

Notes:- Show Stocked Products With Similar Attributes.

More Products By Manufacturer "Carlisle Interconnect Technologies"

Image Description
1-1818-524-WH36 electronic component of Carlisle Interconnect Technologies 1-1818-524-WH36

Cable Assembly Coaxial 0.914m Type N to Type N M-M
Stock : 1

1-1836-524-WH36 electronic component of Carlisle Interconnect Technologies 1-1836-524-WH36

Cable Assembly Coaxial 0.914m Type N to SMA
Stock : 1

1-3636-463-5224 electronic component of Carlisle Interconnect Technologies 1-3636-463-5224

Cable Assembly Coaxial 0.61m SMA to SMA M-M
Stock : 1

1-3636-463-5208 electronic component of Carlisle Interconnect Technologies 1-3636-463-5208

Cable Assembly Coaxial 0.203m SMA to SMA M-M
Stock : 1

1-3636-524-WH36 electronic component of Carlisle Interconnect Technologies 1-3636-524-WH36

Cable Assembly Coaxial 0.914m SMA to SMA
Stock : 1

1-3636-600-5208 electronic component of Carlisle Interconnect Technologies 1-3636-600-5208

Cable Assembly Coaxial 0.203m SMA to SMA M-M
Stock : 1

1-1818-90B-4236 electronic component of Carlisle Interconnect Technologies 1-1818-90B-4236

Cable Assembly Coaxial 0.914m SMA to SMA M-M
Stock : 1

1-3636-461-5208 electronic component of Carlisle Interconnect Technologies 1-3636-461-5208

Cable Assembly Coaxial 0.203m SMA to SMA M-M
Stock : 1

1-3636-461-5224 electronic component of Carlisle Interconnect Technologies 1-3636-461-5224

Cable Assembly Coaxial 0.61m SMA to SMA M-M
Stock : 1

1-1818-601-3212 electronic component of Carlisle Interconnect Technologies 1-1818-601-3212

Cable Assembly Coaxial 0.914m Type N to Type N M-M
Stock : 1

More Products By Category "Hook-Up Wire"

Image Description
216024-007 electronic component of TE Connectivity 216024-007

Wire, Radiation-Crosslinked, Modified, ETFE-Insulated, Tin-Coated Copper, Lightweight
Stock : 1

32820-009-5000 electronic component of Belden 32820-009-5000

Hook-up Wire #20 STR PVC WHT
Stock : 1

55A0111-26-2 electronic component of TE Connectivity 55A0111-26-2

Spec 44, Spec 55 and Spec RCW Wire and Cable
Stock : 1

9922713001 electronic component of TE Connectivity 9922713001

Hook-up Wire 100G0111-0.40-0
Stock : 1

218283-000 electronic component of TE Connectivity 218283-000

Wire, Radiation-Crosslinked, Modified ETFE-Insulated, Normal Weight, General Purpose, 600 Volt
Stock : 0

55A0811-26-9 electronic component of TE Connectivity 55A0811-26-9

Hook-up Wire 26AWG 1.06mm Tin Plated Copper White 600V
Stock : 0

44A0111-16-0 electronic component of TE Connectivity 44A0111-16-0

High Performance Cable 16AWG 1.9mm Tin Coated Copper Black 600VAC
Stock : 2977

100G0111-0.40-0 electronic component of TE Connectivity 100G0111-0.40-0

Hook-up Wire 22AWG 750/1300V CBL PRICE PER FT
Stock : 1

83001 0041000 electronic component of Belden 83001 0041000

Hook-up Wire 28AWG 1C TFE 1000ft SPOOL YELLOW
Stock : 1

30-682M electronic component of Ideal Industries 30-682M

Hook-up Wire 22AWG 7.62m 1.6mm
Stock : 1

Additional Infomation About Product

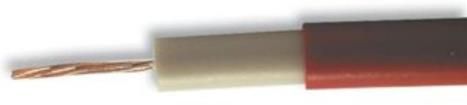

DATE: 02/12/2008 ORIGINATOR: A.J.R. CHECKED: SPECIFICATION DATA SHEET CABLE TYPE BELDEN REFERENCE: CD 14013 (Original reference: RD8317) GENERAL DESCRIPTION 25.00 KV EHT CABLE. 0.50mm PLAIN COPPER CONDUCTOR, PE/PVC INSULATED. RELEVANT STANDARDS INTERNAL BELDEN SPECIFICATION COMPONENT MATERIAL BREAKDOWN DIAMETER (nom) mm Conductor 07/0.300mm PLAIN ANNEALED COPPER WIRE 0.90 Insulation EXTRUDED POLYETHYLENE OF 4.20 1.65mm NOMINAL WALL (NATURAL) Jacket FLAME RETARDANT PVC OF 0.50mm 5.20 NOMINAL WALL (RED) CABLE CHARACTERISTICS : VOLTAGE RATING: 25.00 KV DC TEMPERATURE RATING: -15C to +70C CURRENT RATING: 10.0 A (Based on a temperature rise of 40C) CONDUCTOR RESISTANCE: 36.50 /KM MAXIMUM DIMENSIONS: 5.00mm MINIMUM , 5.40mm MAXIMUM CD 14013 25.00 Kv EHT Cable Flame Retardant PVC Jacket Polyethylene Insulation 0.50mm Plain Annealed Copper Wire Information in this publication and otherwise supplied to users is based on our general experience and is given in good faith , but because of the many particular factors which are outside our knowledge which affect the use of products, no warranty is given nor is implied with respect to such information. Users should make their own enquiries to determine the suitability of products for any particular use. Freedom under patents, copyright and registered designs cannot be assumed. This design may be subject to change without notification - please check this data sheet is still current. VR1127 Iss. 2 X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for carlisle interconnect technologies manufacturer: Other Similar products are found below : 1-1818-524-WH36 1-1836-524-WH36 1-3636-463-5224 1-3636-463-5208 1-3636-524-WH36 1-3636-600-5208 1-3636-617-5212 1-3636- 620-5208 1-3636-90B-4236 1-3737-600-3212 1-G6G6-600-3408 1-K6K6-30A-4236 222CCSF AECAFLAD0504 (PS50040-43-2) 1-1818- 90B-4236 PCS-D8D8-521-48 1-3636-461-5208 1-3636-461-5224 P677-2 1-1818-601-3212 3115909 M16878/6-BEE-2 M16878/6-BEE-0 M16878/6-BFE-0 M16878/4-BCE-2 M16878/4 BEE-6 M16878/4 BFE-6 221CC 5038009 M22759/18-16-9 1-3636-617-5218 WHU18- 1818-048 1-K6K6-600-4306 1-3637-601-5204 1-1818-601-3211 1-1818-601-3213 WHU18-3636-024 M16878/6-BDE-0 M16878/4-BCE-9 M16878/4-BCE-0 M16878/5 BDE-2 1-3636-601-5310 1-D8D8-521-4248 BACC13AU01LLA171 1-1818-601-3207 1-3737-600-3216 WHU18-1818-096 1-3636-621-5208 1-3637-601-5202 KU3636-036

HS Compliance

Tariff Desc

8544.49.19 CABLES, single core, rated at 50 V and 120 A maximum Op. 01.01.2007 Dec. 23.11.2006 - TC 0614486
