01776.35.01

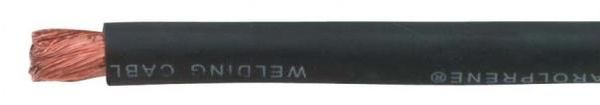

RED NOW A STOCK ITEM Mining Industrial-Grade Cable Carolprene Welding Cable 90C 600 Volt Product Construction: Conductor: 6 AWG through 500 kcmil fully annealed stranded bare copper Class K Jacket: Premium-grade 90C EPDM, red Temperature range: -40C to +90C Jacket Marking: CAROLPRENE WELDING CABLE 600 VOLT CLASS K 30 AWG STRANDING CAROLPRENE (SIZE) WELDING CABLE 600 APPROX. VOLT MADE IN USA NOMINAL O.D. CATALOG COND. SIZE CONDUCTOR NET WT. STD. (S) Applications: NUMBER (AWG/kcmil) STRAND INCHES mm LBS/M CTN. Secondary voltage resistance welding leads Power supply applications not exceeding 01778 6 259/30 0.380 9.65 135 250 600 volts AC 01777 4 374/30 0.400 10.16 172 250 Features: 01776 2 625/30 0.465 11.81 260 250 Good flexibility Abrasion-resistant 01775 1 778/30 0.495 12.57 317 250 Good color retention 01774 1/0 990/30 0.560 14.22 400 250 Packaging: 01773 2/0 1248/30 0.615 15.62 487 250 250 (76.2 m), 500 (152.4 m), and 1000 (304.8 m) reels 01772 3/0 1586/30 0.670 17.02 605 250 MCM sizes cut to length 01771 4/0 2054/30 0.750 19.05 827 250 Other put-ups available on special order 99142* 250 2496/30 0.830 21.08 976 250 Industry Approvals: RoHS Compliant 99432* 350 3432/30 0.960 24.38 1338 250 99202* 500 5054/30 1.200 30.48 1995 250 (S) Actual shipping weight may vary. Non-stock item, minimum quantity required. * Suggested Ampacities: For 600 Volt In-Line Applications AWG/kcmil AMPERES AWG/kcmil AMPERES WELDING CABLE AMPACITIES 5 0 0 695 1/ 0 19 0 SINGLE CONDUCTOR 3 5 0 552 1 16 0 25 0 445 2 140 Required Cable Sizes: For Welding Cable Application 4/ 0 310 4 10 0 length in feet for total circuit for secondary voltages only do not use this table for 600 Volt in-line applications 3/0 265 6 75 AMPS 100 150 200 250 300 350 400 2/ 0 223 10 0 4 4 2 2 1 1/ 0 1/ 0 Ampacities for portable cable, continuous-duty 150 4 2 1 1/ 0 2/ 0 3/0 3/0 (ambient temperature of 40C). 20 0 2 1 1/ 0 2/ 0 3/0 4/ 0 4/ 0 May not be suitable for all installations per National Electrical Code . 25 0 1 1/ 0 2/ 0 3/0 4/ 0 30 0 1/ 0 2/ 0 3/0 4/ 0 3 5 0 1/ 0 3/0 4/ 0 Ordering Part Number Example 40 0 2/ 0 3/0 01771.38.03 4 50 2/ 0 4/ 0 4/0 500 put-up in red 5 0 0 3/0 4/ 0 .03 for red jacket 5 50 3/0 4/ 0 6 0 0 4/ 0 REQUIRED CABLE SIZES SHOWN IN AWG NUMBERS The total circuit length includes both welding and ground leads (based on 4-volt drop) 60% duty cycle. These values for current-carrying capacity are based on a copper temperature of 60C (140F), an ambient temperature of 40C (104F) and yield load factors from approximately 32% for the No. 2 AWG cable to approximately 23% for the No. 3/0 AWG cable, and higher for the smaller sizes. The sizes of cables generally used range from No. 2 AWG to No. 3/0 AWG. In actual service, the load factor may be much higher than indicated without overheating the cable, as the ambient temperature will generally be substantially lower than 40C. 27X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for carol manufacturer: Other Similar products are found below : 01364.35T.01 C1321.41.01 C2015A.12.04 C4066A.38.10 01104.99.01 01343.35T.01 02728-85-01 5133290E 2133016 16065.41.01 5131431E 09814.99.01 E2206S.41.86 E1524S.41.03 E2534S.41.03 C2016A.12.03 C2064A.12.02 C0570A.41.10 C1343A.41.10 C1357.41.90 C2405A.41.10 C1352A.41.10 C2536A.38.10 C1361.38.90 E2204S.41.02 E3612S.41.03 E1032S.25.10 02604.41T.05 02605.41T.05 02608.41T.05 02632.35T.05 02634.41T.05 02601.41T.05 01360.35T.01 01342.35T.01 C-8002-12 01380.35T.01 01774.35T.01 5133274E C2040A.21.03 C2104A.12.06 C1302.41.01 E2032S.41.10 E2242S.41.86 E1502S.25.03 E2004S.18.10 02601.35T.05 02602.35T.05 02635.35T.05 06200.61.06L
