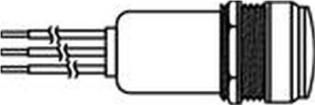

FEATURES / BENEFITS Daylight viewability 557 Series Tamperproof /Designed for high durability High Intensity LED Long life, up to 100k hours Panel Mount Indicators 11 Uniform illumination for /16 Mounting Hole Watertight Low profile flat lens design APPLICATIONS The 557 Series LED Panel Mount Indicators incorporate both InGaN and AlInGaP technologies to offer higher intensities. This is a highly durable package, designed to withstand out- door applications susceptible to rain, dust, and sunlight. Instrument panels Lane control Safety applications Transportation - rail, bus, airline Vending, gaming ... and many more SPECIFICATIONS Available in red, yellow, green, blue, and white Watertight seal from front of panel meets MIL-L-3661B Voltage range of 5, 12, 24 VDC Maximum mounting torque - 15 in./lb. 11 Housing material: White polycarbonate Front mounting in /16 clearance hole Lens material: Polycarbonate 94 - VO Operating temperature: -25C to +85C Storage temperature: -30C to +100C Dimensions are in inches mm All measurements are typical Dialight reserves the right to make changes at any time in order to supply the best product possible. Dialight Corporation Please see back of page for part numbers and additional specifications. 1501 Route 34 South Farmingdale, NJ 07727 USA Tel: (1) 732-919-3119 Fax: (1) 732-751-5778 www.dialight.com a Roxboro Group Company MDEL557U001 B557 Series High Intensity LED Panel Mount Indicators 11 for /16 Mounting Hole Watertight TYPICAL PART NUMBER COLOR VOLTAGE CURRENT INTENSITY (VDC) (mA) (fL) 557-1502-203 Red 5 80 1000 557-1602-203 Green 5 16 1000 557-1702-203 Yellow 5 80 1000 557-1802-203 Blue 5 16 250 557-1002-203 White 5 16 700 557-1503-203 Red 12 20 1000 557-1603-203 Green 12 16 1000 557-1703-203 Yellow 12 20 1000 557-1803-203 Blue 12 16 250 557-1003-203 White 12 16 700 557-1505-203 Red 24 20 1000 557-1605-203 Green 24 16 1000 557-1705-203 Yellow 24 20 1000 557-1805-203 Blue 24 16 250 557-1005-203 White 24 16 700 LED Panel Mount Indicator Selection Dialights line of LED Panel Mount Indicators are available in a variety of sizes and options. Please visit our website for more information. www.dialight.com .156 558 Series 8mm 608 Series .250 559 Series 9mm 609 Series 605 Series 610 Series 5mm 10mm 6mm 606 Series 11/16 Watertight 557 Series 7mm 607 Series 1 Watertight 556 Series Custom capabilities: Please contact factory regarding customizing these indicators to your specific requirement. Dialight reserves the right to make changes at any time in order to supply the best product possible. Dialight Corporation 1501 Route 34 South Farmingdale, NJ 07727 USA Tel: (1) 732-919-3119 Fax: (1) 732-751-5778 www.dialight.com a Roxboro Group Company MDEL557U001 B
