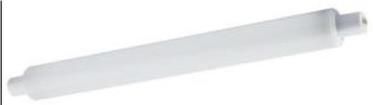

DATA SHEET LED Retrofit 3.5W S15 Product Overview LED retrofit lamps are direct replacements for conventional incandescent, halogen, and compact fluorescent (CFL) lamps. LEDs deliver higher lumens per watt (lm/W) which means significant energy savings while lasting more than ten times longer than incandescent sources. With their directional light, instant on and ability to dim, LEDs are fast becoming the light source of choice Features More eco-valued. Excellent optical design, alike SMT appearance. Reliable IC solution, automatic production. Safety and Maintenance Switch off supply before installing or removing lamp. Allow to cool before handling. Do not use in totally enclosed fittings as this will reduce lamp life. Do not dispose of in household waste. Dispose of in appropriate section of local civic amenity site or recycling centre. Page: 1 DATA SHEET Specifications S15 Strip Tube SKU S9217 Lamp S15 Strip Tube Nominal Power (W) 3.5 Voltage 220-240Vac 50Hz Current (mA) 30 Nominal Luminous Flux (lm) 350 CCT (K) 2700K warm White Nominal Lifetime (h) 15000 Dimmable No Switching Cycles 15000 Warm-up time to 60% (S) Instant Length (mm) 221 Diameter (mm) 26 Mercury (mg) 0 Clean-up instructions See website Retrofit Yes Equivalent Wattage (W) 30 Rated Power (W) 3.5 Rated Luminous Flux (lm) 350 Rated Lifetime (h) 15000 Power Factor 0.45 Rated Peak Candelas (cd) Lumen Maintenance Factor at Nominal Lifetime 15000 CRI >80 Start Time (s) Instant Ambient Temperature Range (C) -20 to 40 Energy Label S15 Strip Tube Energy Class A++ Energy Consumption (kWh/1000h) 3.50(4)* * The kWh/1000h value published on the energy label is required to be rounded up to an integer according to the EU implementing directive on Energy Labelling. The value to 2 decimal places is given for reference Product Markings S15 Strip Tube Voltage 220-240Vac 50Hz Nominal Power (W) 3.5 Current (mA) 30 CE Mark Yes WEEE Mark Yes Batch Code Yes Page: 2
