05CCM-R47M-01

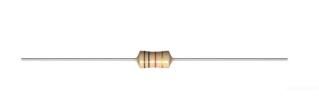

05CCM-R47M-01 electronic component of Fastron

Datasheet
Fixed Inductors Leaded Inductor - Fixed Choke Coil

Manufacturer: Fastron
This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges



Price (USD)

1: USD 1.696 ea
Line Total: USD 1.696

5088 - Global Stock
Ships to you between
Thu. 11 Apr to Mon. 15 Apr
MOQ: 1  Multiples: 1
Pack Size: 1
Availability Price Quantity
3754 - Global Stock


Ships to you between Thu. 11 Apr to Mon. 15 Apr

MOQ : 1
Multiples : 1
1 : USD 1.1423
10 : USD 0.9817
100 : USD 0.7245
500 : USD 0.6424
1000 : USD 0.5916
3500 : USD 0.5833
7000 : USD 0.5422
24500 : USD 0.5373
49000 : USD 0.5361


Manufacturer
Product Category
Product
Type
Termination Style
Shielding
Inductance
Tolerance
Maximum DC Current
Maximum DC Resistance
Saturation Current
Minimum Operating Temperature
Maximum Operating Temperature
Q Minimum
Self Resonant Frequency
Termination
Mounting Style
Length
Width
Height
Core Material
Series
Packaging
Diameter
Hts Code
LoadingGif

Notes:- Show Stocked Products With Similar Attributes.
Image Description
1210AS-068J-01 electronic component of Fastron 1210AS-068J-01

Fixed Inductors RF CHIP INDUCTORS
Stock : 0

EK-1812AF-K electronic component of Fastron EK-1812AF-K

Inductor Kits & Accessories 1812 CASE 10% TOL 10 EACH-26 VALUES
Stock : 0

PISR221M04 electronic component of Fastron PISR221M04

Inductor Power Wirewound 220uH 20% 100KHz Ferrite 1.3A 340mOhm DCR T/R
Stock : 1

HBCC-2R2K-02 electronic component of Fastron HBCC-2R2K-02

Fixed Inductors 2.2uH 1MHz 10%
Stock : 2

07MFG-122J-50 electronic component of Fastron 07MFG-122J-50

Fixed Inductors RF CHOKE 1.2mH 5%
Stock : 1

SMSC-3R0M-01 electronic component of Fastron SMSC-3R0M-01

Fixed Inductors 3uH 1MHz 20%
Stock : 1300

07HVP-471K-51 electronic component of Fastron 07HVP-471K-51

Inductor: wire; THT; 470uH; 0.58A; 1.18O; ±10%; Body dim: Ø8.3x10mm
Stock : 2

1210F-471K-01 electronic component of Fastron 1210F-471K-01

Fixed Inductors 470uH 0.1 MHz 10%
Stock : 0

VHBCC-822J-02 electronic component of Fastron VHBCC-822J-02

Inductor: wire; THT; 8200uH; 135mA; 35O; Ø6x16mm; ±5%; Leads: axial
Stock : 1

PISTHV-472M-04 electronic component of Fastron PISTHV-472M-04

Fixed Inductors SMD Power Shielded 4.7mH 20% 5.2Ohm
Stock : 1

Image Description
NRS6028T150MMGJ electronic component of Taiyo Yuden NRS6028T150MMGJ

Fixed Inductors 6028 15uH 123.5mOhms +/-20%Tol 1600mA
Stock : 1

LQP03TN8N2HZ2D electronic component of Murata LQP03TN8N2HZ2D

Fixed Inductors 0201 8.2nH 0.70ohms 250mA +/-3%
Stock : 1

HK160833NJ-T electronic component of Taiyo Yuden HK160833NJ-T

Fixed Inductors INDCTR HIFREQ MLTLYR 0603 33nH 5%
Stock : 4000

MLF1608D47NMTA00 electronic component of TDK MLF1608D47NMTA00

200mA 47nH ±20% 100mO 0603 Inductors (SMD) ROHS
Stock : 1

LGHK1608R15J-T electronic component of Taiyo Yuden LGHK1608R15J-T

Inductor High Frequency Chip Multi-Layer 150nH 5% 50MHz 8Q-Factor Ceramic 300mA 1.2Ohm DCR 0603 T/R
Stock : 1

HK100556NJ-T electronic component of Taiyo Yuden HK100556NJ-T

Ind High Frequency Chip Multi-Layer 56nH 5% 100MHz 8Q-Factor Ceramic 220mA 0402 T/R
Stock : 1

HK1005R12J-T electronic component of Taiyo Yuden HK1005R12J-T

Ind High Frequency Chip Multi-Layer 120nH 5% 100MHz 8Q-Factor Ceramic 200mA 0402 T/R
Stock : 1

HK100533NJ-T electronic component of Taiyo Yuden HK100533NJ-T

Ind High Frequency Chip Multi-Layer 33nH 5% 100MHz 8Q-Factor Ceramic 250mA 0402 T/R
Stock : 1

PIQQ20161B-R47MDR electronic component of Cyntech PIQQ20161B-R47MDR

2016 Pre-ordered RLCs ROHS
Stock : 1

PST031B-100MS electronic component of Cyntech PST031B-100MS

Inductors (SMD) SMD,3x3x1.2mm RoHS
Stock : 0

www.fastrongroup.com 05 CCM Non-magnetic 64.0 0.60 9.5 max 4.2 max Tinned Typical Ls vs Frequency () 10 fL SRF DCR Inductance Tol Q fQ Rated DC Part No (MHz) typ max Current 2.7 H L (H) (%) min (MHz) (MHz) () max (mA) 05CCM-R10X-YY 0.10 1 10,20 50 25 700 0.025 2800 1.0 H 1 05CCM-R12X-YY 0.12 1 10,20 50 25 600 0.035 2560 0.47H 05CCM-R15X-YY 0.15 1 10,20 50 25 530 0.038 2310 05CCM-R18X-YY 0.18 1 10,20 50 25 490 0.043 2200 0.1H 05CCM-R22X-YY 0.22 1 10,20 50 25 450 0.048 1875 0.1 05CCM-R27X-YY 0.27 1 10,20 50 25 400 0.055 1760 05CCM-R33X-YY 0.33 1 10,20 55 25 360 0.065 1650 05CCM-R39X-YY 0.39 1 10,20 50 25 350 0.090 1525 05CCM-R47X-YY 0.47 1 10,20 55 25 310 0.097 1475 05CCM-R56X-YY 0.56 1 10,20 50 25 280 0.115 1435 0.01 1 100 1000 10 05CCM-R68X-YY 0.68 1 10,20 55 25 250 0.150 1315 Frequency (MHz) 05CCM-R82X-YY 0.82 1 10,20 45 25 225 0.210 1020 05CCM-1R0X-YY 1.00 1 10,20 53 25 200 0.300 890 05CCM-1R2X-YY 1.20 1 10,20 30 7.9 180 0.360 820 05CCM-1R5X-YY 1.50 1 10,20 30 7.9 160 0.520 680 Typical Z vs Frequency () 05CCM-1R8X-YY 1.80 1 10,20 30 7.9 150 0.675 570 1000 05CCM-2R2X-YY 2.20 1 10,20 35 7.9 135 1.000 480 1.0 H 2.7 H 05CCM-2R7X-YY 2.70 1 10,20 35 7.9 120 1.360 400 0.47 H 100 0.1 H Revision date : 12 Aug 2020 Core Material : Phenolic 10 SPQ : Packing Form Taped / Reel Taped / Ammo pack Axial 3500 -01 1200 -02 1 Radial 1500 -31 2500 -32 0.1 0.01 10 100 1000 Frequency (MHz) Bold figure for Tol% is standard All dimensions in mm w e N Leaded Inductors / Medical Applications (Fixed Choke Coils) Impedance (k ) Inductance (H)X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for Fixed Inductors category: Click to view products by Fastron manufacturer: Other Similar products are found below : CR43NP-680KC CR54NP-820KC CR54NP-8R5MC CTX32CT-100 70F224AI MGDQ4-00004-P MHL1ECTTP18NJ MHL1JCTTD12NJ PE-51506NL PE-53601NL PE-53602NL PE-53630NL PE-53824SNLT PE-62892NL PE-92100NL PG0434.801NLT PG0936.113NLT 9310-16 PM06-2N7 PM06-39NJ A01TK 1206CS-471XJ HC2-2R2TR HC2LP-R47-R HC3-2R2-R 1206CS-151XG RCH664NP-140L RCH664NP-4R7M RCH8011NP-221L RCP1317NP-332L RCP1317NP-391L RCR1010NP-470M RCR110DNP-331L DH2280-4R7M DS1608C-106 ASPI-4020HI-R10M-T B10TJ B82477P4333M B82498B3101J000 B82498B3680J000 ELJ-RE27NJF2 1812CS-153XJ 1812CS-183XJ 1812CS-223XJ 1812LS-104XJ 1812LS-105XJ 1812LS-124XJ 1812LS-154XJ 1812LS-223XJ 1812LS-224XJ
