FNL-U300B23CDSL FORGE

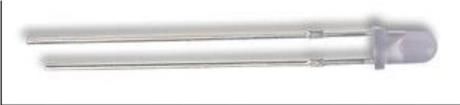

3.0 mm / T1 Round High Performance Blue LED Lamps High intensity Features: LED Lamp Package Blue diffused (CD) or Water clear (WC) epoxy Electro / Optical Characteristics I = 20 mA T = 25 C F a LED Part Number Wavelength Forward Voltage V Luminous intensity I Emitting Epoxy Die F V Luminous Viewing Colour Type Material Flux 2 Forge Europa Peak Dominant typical max min typical V P d o FNL-U300B23CDSL Blue CD InGaN/SiC - 470 3.20 3.70 - 140 - 60 o FNL-U300B22CDSL Blue CD InGaN/SiC - 460 3.20 3.70 - 140 - 60 o FNL-U300B23WCSL Blue WC InGaN/SiC - 470 3.20 3.70 - 400 - 35 o FNL-U300B22WCSL Blue WC InGaN/SiC - 460 3.20 3.70 - 400 - 35 Units nm V mcd mlm deg Maximum Ratings Ta = 25 C ( Derate above 25 C ) Characteristic Condition Symbol Rating Units Pulse Forward Current 0.1 duty cycle 1KHz I 100 mA FP Note DC Forward Current I 25 mA F Industry standard procedures Reverse Voltage I = 100 AV 5V R R regarding static must be observed Power Dissipation P 85 mW D when handling product produced with blue die material. Operating Temperature T - 20 to + 80 C opr Storage Temperature T - 20 to + 100 C stg Lead soldering temperature 1.6 mm from body - max 3 seconds 240 C Data Sheet F FNL-U300XXXXSL Internet uk.farnell.com Sales Tel 08447 11 11 11 Sales Fax 08447 11 11 12 Issue 3 - Feb 2011 Sheet 1 of 23.0 mm / T1 Round High Performance Blue LED Lamps Radiation Diagrams Package Outline o T = 25 C a Dimensions in mm Tol 0.25 mm unless stated o 35 WARNING This range of LEDs is produced with die having a high radiant flux. Care must be taken when viewing the product at close range as the light may be intense enough to cause damage to the human eye. o 60 Data Sheet F FNL-U300XXXXSL Internet uk.farnell.com Sales Tel 08447 11 11 11 Sales Fax 08447 11 11 12 Issue 3 - Feb 2011 Sheet 2 of 2
