GT-TC063F-H025-L30 G-Switch

Name: GT-TC063F-H025-L30
Brand: G-Switch
SKU: GTTC063FH025L30_G-Switch
Availability: InStock
Rating: 5 (11 reviews)

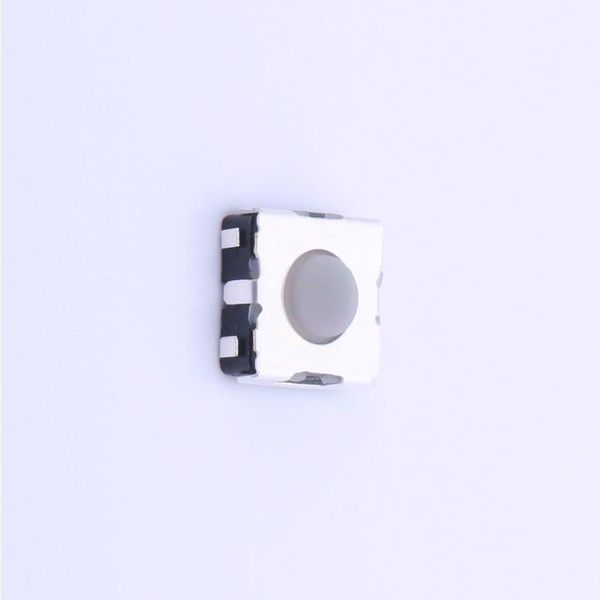

GT-TC063F-H025-L30 electronic component of G-Switch

Images are for reference only
See Product Specifications

Part No.	GT-TC063F-H025-L30
Manufacturer:	G-Switch
Category:	Tactile Switches
Description:	No NO J pin 50mA 6.2mm 100MΩ 300000 12V 70gf@±30gf 6.2mm -30℃~+85℃ 2.5mm Gray Round Button Brick nogging SPST SMD Tactile Switches ROHS
Datasheet:	GT-TC063F-H025-L30 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

5: USD 0.2646 ea
Line Total: USD 1.32

Availability - 4432
Ship by Wed. 25 Jun to Mon. 30 Jun

MOQ: 5 Multiples: 5
Pack Size: 5

GT-TC063F-H025-L30 More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

4432

Ship by Wed. 25 Jun to Mon. 30 Jun

MOQ : 5
Multiples : 5

5 : USD 0.2646
50 : USD 0.2302
150 : USD 0.1615
500 : USD 0.1331
2000 : USD 0.1247
4000 : USD 0.1213

Specifications

Manufacturer

G-Switch G-Switch

Product Category

Tactile Switches Tactile Switches

Operating Force

70gf@ ± 30gf 70gf@ ± 30gf

Voltage Rating DC

12 V 12 V

Mounting Style

Brick nogging Brick nogging

Category

Tactile Switches Tactile Switches

Rohs

y y

With Lamp

No No

Strike Gundam

NO NO

Pin Style

J pin J pin

Contact Current

50 mA 50 mA

Switch Length

6.2 mm 6.2 mm

Insulation Resistance

100 MOhms 100 MOhms

Mechanical Life

300000 300000

Switch Width

6.2 mm 6.2 mm

Operating Temperature

- 30 C ~ + 85 C - 30 C ~ + 85 C

Switch Height

2.5 mm 2.5 mm

Actuator/Cap Color

Gray Gray

Actuator Style

Round Button Round Button

Circuit

SPST SPST

Notes:- Show Stocked Products With Similar Attributes.
