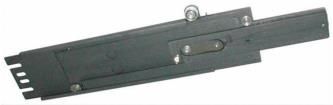

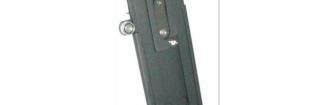

CTRS-112 General Devices

CTRS Slide A B B C D E E F Catalog Load (min) (max) (min) (max) TO ORDER, SPECIFY Number Capacity CTRS-110 10.00 9.44 11.19 9.00 8.25 0.00 1.75 2 175 LBS. CTRS - - CTRS-112 12.00 10.81 14.56 11.00 8.25 0.00 3.75 2 175 LBS. CTRS-114 14.00 14.88 16.75 13.00 12.13 0.00 1.88 2 175 LBS. Stationary Section CTRS-116 16.00 15.75 19.63 15.00 12.13 0.00 3.88 3 175 LBS. AR - Automatic Length 1 - Cabinet Mount CTRS-118 18.00 21.63 23.63 17.00 16.00 0.00 2.00 4 175 LBS. Release if desired 2 - Strap Mount CTRS-120 20.00 23.63 27.63 19.00 16.00 0.00 4.00 4 175 LBS. 4 - Closed Slot CTRS-122 22.00 26.24 31.63 21.00 16.00 0.63 6.00 4 175 LBS. For information on mounting slides to Off-Set mounting rail see page 26. CTRS-124 24.00 28.24 34.63 23.00 16.00 1.63 8.00 4 175 LBS. For information on Strap Mount option see page 28. Notes 1. Right hand shown, left hand opposite. TM 2. Finish: All standard slides are coated with Poxylube dry film lubricant. 3. All standard slides are designed to lock-out in the extended position and are available with an optional automatic release if lock-out is not desirable. 4. Standard hardware packages include all the hardware necessary to mount your Chassis Trak slides: Rear mounting bracket (B-131) included Bar Nuts (CA8056-06-0020) 10-32 screws and keps nuts 5. All sliding members of the standard slide are made from cold rolled steel. 6. All Chassis Trak solid bearing slides are supplied with a quick disconnect feature. 7. Optional mounting patterns, slide lengths and extensions are available. 8. Pickup tab available for units without a front panel. 9. For optional mounting brackets see page 35. 21 www.generaldevices.com Phone: 317-897-7000 Email: sales generaldevices.com ISO 9001:2000 Registered CTS and CTRS Special Application Slide for Off-Set Leg Mounting Rail Catalog A B B C D E E F Load TO ORDER, SPECIFY Number (min) (max) (min) (max) Capacity CTS-SA-114 14.00 13.50 14.25 13.00 12.13 0.0 .75 4 175 LBS. - CTS-SA - CTS-SA-116 16.00 14.06 16.81 15.00 12.13 0.0 2.75 4 175 LBS. CTS-SA-118 18.00 18.81 19.69 17.00 16.00 0.0 .88 5 175 LBS. Stationary Section CTS-SA-120 20.00 20.81 23.69 19.00 16.00 0.0 2.88 5 175 LBS. AR - Automatic Length 1 - Cabinet Mount CTS-SA-122 22.00 23.31 27.69 21.00 16.00 .50 4.88 5 175 LBS. Release if desired 4 - Closed Slot CTS-SA-124 24.00 25.31 30.69 23.00 16.00 1.50 6.88 5 175 LBS. Catalog A B B C D E E F Load TO ORDER, SPECIFY Number (min) (max) (min) (max) Capacity CTRS-SA-114 14.00 13.50 14.25 13.00 12.13 0.0 .75 4 175 LBS. - CTRS-SA - CTRS-SA-116 16.00 14.06 16.81 15.00 12.13 0.0 2.75 4 175 LBS. CTRS-SA-118 18.00 18.81 19.69 17.00 16.00 0.0 .88 5 175 LBS. Stationary Section CTRS-SA-120 20.00 20.81 23.69 19.00 16.00 0.0 2.88 5 175 LBS. AR - Automatic Length 1 - Cabinet Mount Release if desired CTRS-SA-122 22.00 23.31 27.69 21.00 16.00 .50 4.88 5 175 LBS. 4 - Closed Slot CTRS-SA-124 24.00 25.31 30.69 23.00 16.00 1.50 6.88 5 175 LBS. 26 www.generaldevices.com Phone: 317-897-7000 Email: sales generaldevices.com ISO 9001:2000 Registered
