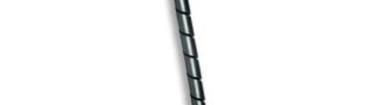

236 247 chapter 3.1 prod 07 uk.qxp 08.08.2007 10:31 Seite 244 Cable Protection Systems 3.1 Protective Tubing Spiral Binding SBPE, SBPEFR, SBPA, SBPAV0 and SBPTFE Features and Benefits Spiral Binding is used for organising and protecting cables and hoses. Due to the spi- ral structure, spiral binding can be applied to cables or hoses in situ. Cables can branch out at any point and in any direction. HellermannTyton spiral binding is available in a wide range of diameters, colours and materials: Spiral binding SBPE. Standard polyethylene SBPE for general applications Flame-retardant polyethylene SBPEFR for Material Data enhanced flame protection Material Polyethylene (PE) Polyamide SBPA for added strength and Operating -60 C to +90 C, protection against abrasion Temperature intermittent +120 C Flame-retardant polyamide SBPAV0 with Flammability UL94 HB UL94 V0 classification for special applica- tions, for instance in the rail and aviation industries PTFE (SBPTFE) for superior protection Material Data against abrasion, chemicals and extreme Material Polyethylene (PEFR), Flame retardant temperatures excellent fire protection Operating -60 C to +80 C, Application Temperature intermittent +120 C Spiral binding is used to route and bind Flammability UL94 V2, FMVSS 302 Type B cables that need high mechanical protection, for instance in the automotive industry as well as in control panels and cabinets. It is Material Data also used in electrical installation, where Material Polyamide 6 V0 (PA6V0) safety is a primary consideration. Operating -60 C to +95 C, Spiral binding provides a tidy solution for Temperature intermittent +130 C many applications. Flammability UL94 V0 Material Data Material Data Material Polyamide 6 (PA6) Material Polytetrafluoroethylene (PTFE) Operating -60 C to +95 C, Temperature intermittent +130 C Operating -60 C to +260 C, Temperature intermittent +350 C Flammability UL94 HB Flammability UL94 V0 Technical Table Wall Pitch Bundle Bundle Pack Article-No. Type D (WT) (P) min. max. Material Colour Cont. SBPE, 5 m - Lengths SBPE4D 4.0 1.0 7.8 5.0 20.0 PE Natural (NA) 5 m 161-41103 161-41104 SBPE4D 4.0 1.0 7.8 5.0 20.0 PE Black (BK) 5 m 161-41105 SBPE4D 4.0 1.0 7.8 5.0 20.0 PE Grey (GY) 5 m 161-41203 SBPE9D 9.0 1.4 12.5 10.0 100.0 PE Natural (NA) 5 m 161-41204 SBPE9D 9.0 1.4 12.5 10.0 100.0 PE Black (BK) 5 m 161-41205 SBPE9D 9.0 1.4 12.5 10.0 100.0 PE Grey (GY) 5 m All dimensions in mm. Subject to technical changes. 244236 247 chapter 3.1 prod 07 uk.qxp 08.08.2007 10:31 Seite 245 Cable Protection Systems 3.1 Protective Tubing Spiral Binding SBPE, SBPEFR, SBPA, SBPAV0 and SBPTFE Technical Table Wall Pitch Bundle Bundle Pack Article-No. Type D (WT) (P) min. max. Material Colour Cont. SBPE SBPE1.5 1.5 0.8 6.0 1.6 8.0 PE Natural (NA) 30 m 161-41000 161-41001 SBPE1.5 1.5 0.8 6.0 1.6 8.0 PE Black (BK) 30 m 161-41002 SBPE1.5 1.5 0.8 6.0 1.6 8.0 PE Grey (GY) 30 m 161-41100 SBPE4 4.0 1.0 7.8 5.0 20.0 PE Natural (NA) 30 m 161-41101 SBPE4 4.0 1.0 7.8 5.0 20.0 PE Black (BK) 30 m 161-41102 SBPE4 4.0 1.0 7.8 5.0 20.0 PE Grey (GY) 30 m 161-41200 SBPE9 9.0 1.4 12.5 10.0 100.0 PE Natural (NA) 30 m 161-41201 SBPE9 9.0 1.4 12.5 10.0 100.0 PE Black (BK) 30 m 161-41202 SBPE9 9.0 1.4 12.5 10.0 100.0 PE Grey (GY) 30 m 161-41300 SBPE16 16.0 1.6 16.0 20.0 150.0 PE Natural (NA) 30 m 161-41301 SBPE16 16.0 1.6 16.0 20.0 150.0 PE Black (BK) 30 m 161-41302 SBPE16 16.0 1.6 16.0 20.0 150.0 PE Grey (GY) 30 m SBPEFR SBPEFR1.5 1.5 0.8 6.0 1.6 8.0 PEFR White (WH) 30 m 161-43000 161-43001 SBPEFR1.5 1.5 0.8 6.0 1.6 8.0 PEFR Black (BK) 30 m 161-43100 SBPEFR4 4.0 1.0 7.8 5.0 20.0 PEFR White (WH) 30 m 161-43101 SBPEFR4 4.0 1.0 7.8 5.0 20.0 PEFR Black (BK) 30 m 161-43200 SBPEFR9 9.0 1.4 12.5 10.0 100.0 PEFR White (WH) 30 m 161-43201 SBPEFR9 9.0 1.4 12.5 10.0 100.0 PEFR Black (BK) 30 m 161-43300 SBPEFR16 16.0 1.6 16.0 20.0 150.0 PEFR White (WH) 30 m 161-43301 SBPEFR16 16.0 1.6 16.0 20.0 150.0 PEFR Black (BK) 30 m SBPA SBPA1.5 1.5 0.4 6.0 1.6 8.0 PA6 Natural (NA) 30 m 161-42000 161-42100 SBPA4 4.0 0.6 7.8 5.0 20.0 PA6 Natural (NA) 30 m 161-42200 SBPA9 9.0 1.0 12.5 10.0 100.0 PA6 Natural (NA) 30 m 161-42300 SBPA16 16.0 1.2 16.0 20.0 150.0 PA6 Natural (NA) 30 m SBPAV0 SBPAV01.5 1.5 0.4 6.0 1.6 8.0 PA6V0 Black (BK) 30 m 161-44000 161-44100 SBPAV04 4.0 0.6 7.8 5.0 20.0 PA6V0 Black (BK) 30 m 161-44200 SBPAV09 9.0 1.0 12.5 10.0 100.0 PA6V0 Black (BK) 30 m 161-44300 SBPAV016 16.0 1.2 16.0 20.0 150.0 PA6V0 Black (BK) 30 m SBPTFE SBPTFE1.5 1.5 0.5 6.0 1.6 8.0 PTFE Natural (NA) 5 m 161-45000 161-45100 SBPTFE4 4.0 0.7 7.8 5.0 20.0 PTFE Natural (NA) 5 m 161-45200 SBPTFE9 9.0 1.0 12.5 10.0 100.0 PTFE Natural (NA) 5 m All dimensions in mm. Subject to technical changes. 245
