EZV47/35 Hitano

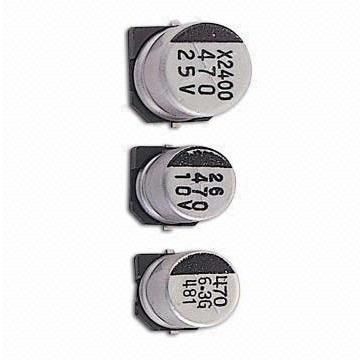

EZV SERIES z SMD Low Impedance Type. Reflow Soldering is available. z 4~18, 105, 2000 ~ 5000 hours load life., Rohs compliant z Available For High Density Mounting Characteristics Voltage Range 6.3 to 100 VDC Capacitance Range 1.0 to 6800uF Temperature Range -55 to +105 Capacitance Tolerance +/-20% (at 20, 120Hz) Leakage Current I 0.01CV or 3uA, whichever is greater, 2 minutes after Rated Voltage applied, where C = Rated Capacitance, V = Rated DC working voltage Dissipation Factor Rated Voltage (V) 6.3 10 16 25 35 50 63 80 100 ( tan)Max D.F.( tan) 0.30 0.26 0.22 0.16 0.13 0.10 0.08 0.08 0.07 (at 20, 120Hz) Stability at Low Temperature Impedance ratio shall not exceed the values given in the table below: (at 120Hz ) Rated Voltage (V) 6.3 10 16 25 35 50 63 80 100 Z-25 /Z 20 4 3 2 2 2 2 2 2 2 Z-55 /Z 20 8 5 4 3 3 3 3 3 3 Load Life 2000hrs for D6.3mm, Capacitance change Within 30% of initial value 5000hrs for D8mm After the rated voltage has been applied D.F. (tan) 300% or less of initial specified value for 2000~5000 hours at 105 Leakage current Iess than initial specified value After storage for 1000 hours at 105, with no voltage applied and being stabilized at +20, Capacitor Shelf Life shall meet the limit specified in load life. Ripple current & Frequency Frequency ( Hz ) 50,60 120 1K 10K up Multipliers Multipliers 0.60 0.70 0.85 1.0 Diagram of dimensions SIZE L A C B W P0.2 D A 0.5~0. 4 5.5 4.3 5.1 4.3 1.0 B 0.5~0. 5 5.5 5.3 6.1 5.3 1.5 C 0.5~0. 6.3 5.7 6.6 7.4 6.6 2.0 C8 0.5~0. 6.3 7.7 6.6 7.4 6.6 2.0 D 0.7~1. 8 6.5 8.4 9.2 8.4 2.2 E 0.7~1. 8 10.5 8.34 9.2 8.34 3.1 F 0.7~1. 10 10.5 10.4 11.2 10.4 4.7 G 12.5 13.5 13.0 15.0 13.0 1.1~1. 4.4 1.1~1. H 12.5 16.0 13.0 15.0 13.0 4.4 I 1.1~1. 16 16.5 17.0 19.0 17.0 6.4 J 1.1~1. 18 16.5 19.0 21.0 19.0 6.4 Size A~F refer to Fig. 1 Size G~J refer to Fig. 2 12 EZV SERIES Case size & Maximum Ripple Current(mA rms 105 100KHz) & Imp. ( 20 100KHZ) WV Cap. 6.3 10 16 25 35 50 uF Size R.C. Imp. Size R.C. Imp. Size R.C. Imp. Size R.C. Imp. Size R.C. Imp. Size R.C. Imp. 1 A 60 2.9 2.2 A 60 2.9 3.3 A 60 2.9 4.7 A 80 1.35 B 85 1.52 10 A 80 1.35 A 80 1.35 B 150 0.76 C 1650.88 22 B 150 0.76 A 80 1.80 B 1500.76 B 1500.76 C 165 0.88 C 230 044 C8 185 0.68 33 A 80 1.35 B 150 0.76 C 230 0.44 C 230 0.44 C 230 0.44 E 300 034 C 230 0.44 C8 185 0.68 47 B 150 0.76 C 230 0.44 C 230 0.44 C 230 0.44 D 280 032 E 369 034 C 0.44 C8 280 0.34 E 450 0.17 E 369 0.34 100 C 230 0.44 C 230 0.44 230 D 044 E 450 017 F 670 014 F 553 018 150 C 230 0.44 C 230 0.44 C8 280 0.36 E 450 0.17 E 450 0.17 F 553 0.18 C8 280 0.34 E 450 0.17 E 450 0.17 C 230 0.44 C8 280 0.34 F 670 0.18 220 E 450 017 F 670 009 F 670 009 C8 280 0.34 E 450 0.17 E 450 0.17 E 450 0.17 330 F 670 0.09 G 650 0.12 E 450 017 F 510 015 F 510 015 F 670 009 E 450 0.17 E 450 0.17 470 E 450 0.17 F 670 0.09 H 950 0.06 I 10000.073 F 670 009 F 670 009 680 E 450 0.17 F 670 0.09 F 670 0.09 G 820 0.07 H 950 0.06 I 1000 0.073 E 450 0.17 1000 F 670 0.09 G 820 0.07 H 950 0.06 I 1260 0.054 J 15000.066 F 553 009 F 670 0.09 G 820 0.07 H 950 0.06 I 1260 0.054 J 1500 0.048 1500 2200 G 820 0.07 H 950 0.06 I 12600.054 I 12600.054 3300 H 950 0.06 I 1260 0.054 I 12600.054 J 15000.048 4700 I 1260 0.054 I 1260 0.054 J 15000.048 6800 J 1500 0.048 J 1500 0.048 WV Cap. 63 80 100 uF Size R.C. Imp. Size R.C. Imp. Size R.C. Imp. 4.7 B 70 1.90 10 C 130 1.20 22 C8 150 0.90 E 130 1.30 E 130 1.30 33 E 280 0.50 E 130 1.30 F 200 0.70 E 280 0.50 F 200 0.70 F 200 0.70 47 100 F 450 0.25 F 200 0.70 G 450 0.32 150 G 700 0.15 G 450 0.32 H 550 0.26 220 G 700 0.15 H 550 0.26 I 650 0.17 330 I 900 0.082 I 650 0.17 J 850 0.15 I 900 .0.082 J 850 0.15 470 680 J 1150 0.080 13 13
