X-On Electronics has gained recognition as a prominent supplier of HFD4/5-LS1R General Purpose Relays across the USA, India, Europe, Australia, and various other global locations. HFD4/5-LS1R General Purpose Relays are a product manufactured by Hongfa. We provide cost-effective solutions for General Purpose Relays, ensuring timely deliveries around the world.

HFD4/5-LS1R Hongfa

Name: HFD4/5-LS1R
Brand: Hongfa
SKU: HFD45LS1R_Hongfa
Availability: InStock
Rating: 5 (11 reviews)

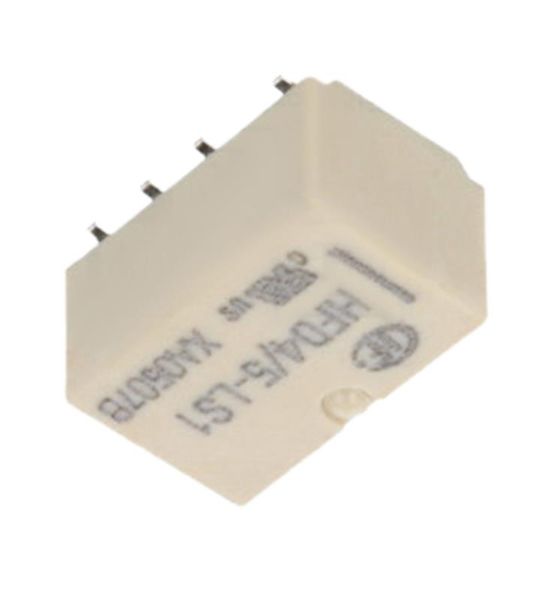

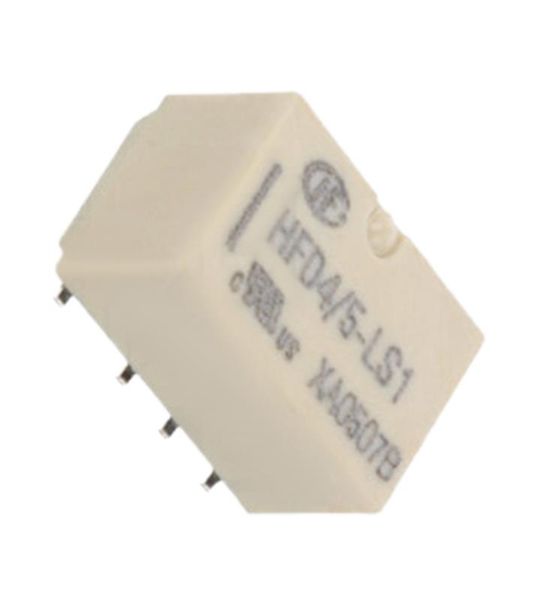

HFD4/5-LS1R electronic component of Hongfa

Images are for reference only
See Product Specifications

Part No.	HFD4/5-LS1R
Manufacturer:	Hongfa
Category:	General Purpose Relays
Description:	Relay: electromagnetic; DPDT; Ucoil: 5VDC; 0.5A/125VAC; 2A/30VDC
Datasheet:
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 2.73 ea
Line Total: USD 2.73

Availability - 211
Ship by Tue. 17 Jun to Thu. 19 Jun

MOQ: 1 Multiples: 1
Pack Size: 1

HFD4/5-LS1R More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

211

Ship by Tue. 17 Jun to Thu. 19 Jun

MOQ : 1
Multiples : 1

1 : USD 2.73
5 : USD 2.366
11 : USD 1.806
29 : USD 1.708
3600 : USD 1.652

Specifications

Manufacturer

Hongfa Hongfa

Product Category

General Purpose Relays General Purpose Relays

Product

electromagnetic electromagnetic

Type

subminiature, signal subminiature, signal

Coil Voltage

5 VDC 5 VDC

Contact Form

DPDT DPDT

Switching Voltage

Max . 220 VDC , Max . 250 VAC Max . 220 VDC , Max . 250 VAC

Coil Resistance

250 Ohms 250 Ohms

Contact Material

AgNi + Au AgNi + Au

Power Consumption

100 W 100 W

Mounting Type

SMT SMT

Category

General Purpose Relays General Purpose Relays

Release Time

3ms 3ms

Coil Voltage Min.

3.75 VDC 3.75 VDC

Contact Resistance

100 mOhms 100 mOhms

Operate Time

3ms 3ms

Contact Current Max.

2 A 2 A

Coil Voltage Max.

10 VDC 10 VDC

Terminal Pitch

2.2mm 2.2mm

Dc Contacts Rating @R

2A / 30V DC 2A / 30V DC

Ac Contacts Rating @R

0.5A / 125V AC 0.5A / 125V AC

Body Dimensions

10x6.5x5.65mm 10x6.5x5.65mm

Operating Temperature

- 40 To 85 C - 40 To 85 C

Notes:- Show Stocked Products With Similar Attributes.
