K2-1109DP-H3SW-04 HRO parts

Name: K2-1109DP-H3SW-04
Brand: HRO parts
SKU: K21109DPH3SW04_HRO_parts
Availability: InStock
Rating: 5 (11 reviews)

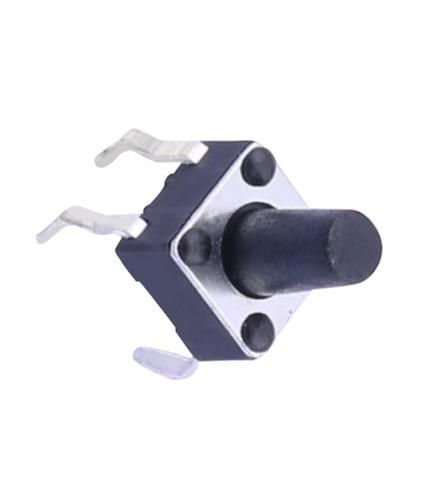

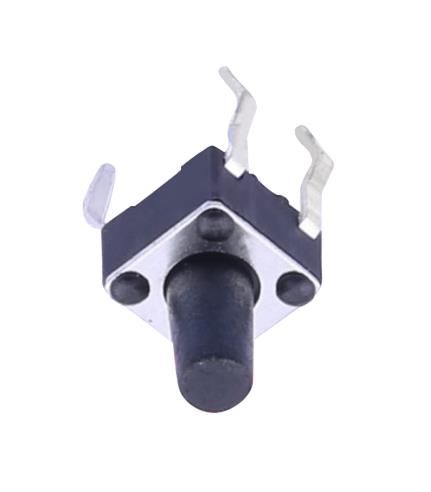

K2-1109DP-H3SW-04 electronic component of HRO parts

Images are for reference only
See Product Specifications

Part No.	K2-1109DP-H3SW-04
Manufacturer:	HRO parts
Category:	Tactile Switches
Description:	-25℃~+85℃ 4.5mm 7mm 50mA Straight 4.5mm 100MΩ 100000 12V 180gf@±30gf Plugin Tactile Switches ROHS
Datasheet:	K2-1109DP-H3SW-04 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

10: USD 0.116 ea
Line Total: USD 1.16

Availability - 349
Ship by Fri. 27 Jun to Wed. 02 Jul

MOQ: 10 Multiples: 10
Pack Size: 10

K2-1109DP-H3SW-04 More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

349

Ship by Fri. 27 Jun to Wed. 02 Jul

MOQ : 10
Multiples : 10

10 : USD 0.116
100 : USD 0.092
300 : USD 0.06
1000 : USD 0.047
5000 : USD 0.0421
10000 : USD 0.0398

Specifications

Manufacturer

HRO parts HRO parts

Product Category

Tactile Switches Tactile Switches

Operating Force

180gf@ ± 30gf 180gf@ ± 30gf

Voltage Rating DC

12 V 12 V

Mounting Style

Straight Straight

Category

Tactile Switches Tactile Switches

Datasheet

Korean Hroparts Elec K2 - 1109DP - H3SW - 04 Korean Hroparts Elec K2 - 1109DP - H3SW - 04

Rohs

y y

Operating Temperature

- 25 C ~ + 85 C - 25 C ~ + 85 C

Switch Width

4.5 mm 4.5 mm

Switch Height

7 mm 7 mm

Contact Current

50 mA 50 mA

Switch Length

4.5 mm 4.5 mm

Insulation Resistance

100 MOhms 100 MOhms

Mechanical Life

100000 100000

Notes:- Show Stocked Products With Similar Attributes.
