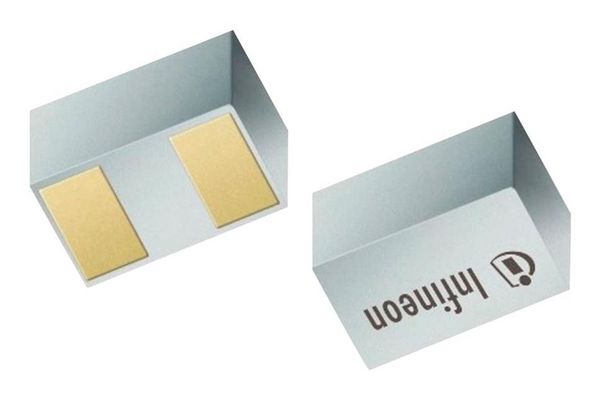

ESD119-B1-W01005 Bi-directional ESD protection device, 5.5 V, 0.2 pF, 01005 Product description This Infineon ESD (electrostatic discharge) protection device has a bi-directional and symmetric I/V characteristic and excellent clamping performance. Feature list ESD / transient protection according to: - IEC61000-4-2 (ESD): 25 kV (air) / 25 kV (contact) - IEC61000-4-4 (EFT): 2.5 kV / 50 A (5/50 ns) - IEC61000-4-5 (Surge): 2.5 A (8/20 s) Bi-directional maximum working voltage: V = 5.5 V WM Line capacitance: C = 0.2 pF at f = 1 MHz L Clamping voltage: V = 20 V at I = 16 A with R = 0.8 cl TLP dyn Very low leakage current: I =1 nA L Small form factor SMD size 01005, low profile (0.43 x 0.23 x 0.15 mm) Potential applications USB 3.x Gen.1, USB 2.0 HDMI, DisplayPort Product validation Qualified for industrial applications according to the relevant tests of JEDEC47/20/22. Device information C Figure 1 Pin configuration with marking (bottom view) Table 1 Part information Product name / Ordering code Package Pin configuration Marking Pieces / Reel ESD119-B1-W01005 / WLL-2-2 1 line, bi-directional C 15 k ESD119B1W01005E6327XTAS1 Datasheet Please read the Important Notice and Warnings at the end of this document v2.0 www.infineon.com 2021-03-01 CESD119-B1-W01005 Bi-directional ESD protection device, 5.5 V, 0.2 pF, 01005 Table of contents Table of contents Product description 1 Feature list . 1 Potential applications 1 Product validation 1 Device information . 1 Table of contents . 2 1 Absolute maximum ratings 3 2 Electrical characteristics 4 3 Typical characteristic diagrams . 6 4 Package information WLL-2-2 12 5 References 13 6 Revision history . 13 Disclaimer 14 Datasheet 2 v2.0 2021-03-01
