X-On Electronics has gained recognition as a prominent supplier of MZA701F6 Board Mount Motion & Position Sensors across the USA, India, Europe, Australia, and various other global locations. MZA701F6 Board Mount Motion & Position Sensors are a product manufactured by IPF ELECTRONIC. We provide cost-effective solutions for Board Mount Motion & Position Sensors, ensuring timely deliveries around the world.

MZA701F6 IPF ELECTRONIC

Name: MZA701F6
Brand: IPF ELECTRONIC
SKU: MZA701F6_IPF_ELECTRONIC
Availability: InStock
Rating: 5 (11 reviews)

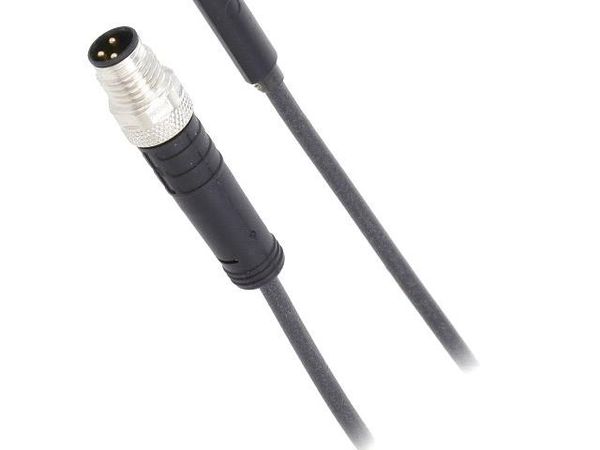

MZA701F6 electronic component of IPF ELECTRONIC

MZA701F6 Board Mount Motion & Position Sensors

Images are for reference only
See Product Specifications

Part No.	MZA701F6
Manufacturer:	IPF ELECTRONIC
Category:	Board Mount Motion & Position Sensors
Description:	Sensor: magnetic field; Range: 2,8mT; 150mA; 10÷30VDC; -25÷70°C
Datasheet:	MZA701F6 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 78.022 ea
Line Total: USD 78.02

Availability - 7
Ship by Fri. 13 Jun to Tue. 17 Jun

MOQ: 1 Multiples: 1
Pack Size: 1

MZA701F6 More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

7

Ship by Fri. 13 Jun to Tue. 17 Jun

MOQ : 1
Multiples : 1

1 : USD 78.022

Specifications

Manufacturer

IPF ELECTRONIC IPF ELECTRONIC

Product Category

Board Mount Motion & Position Sensors Board Mount Motion & Position Sensors

Category

Board Mount Motion Position Sensors Board Mount Motion Position Sensors

Ip Rating

IP67 IP67

Number Of Pins

3 3

Supply Voltage

10 To 30 VDC 10 To 30 VDC

Max. Operating Current

150 mA 150 mA

Switching Frequency Max

1kHz 1kHz

Insulator Material

PUR PUR

Output Configuration

PNP / NO PNP / NO

Type Of Sensor

magnetic field magnetic field

Measuring Range

2,8mT 2,8mT

Sensors Features

LED indication LED indication

Material

cast zinc cast zinc

Connection

lead 0,6m with connector M8 lead 0,6m with connector M8

Operating Temperature

- 25 To 70 C - 25 To 70 C

Body Dimensions

4.3x19x6.15mm 4.3x19x6.15mm

Notes:- Show Stocked Products With Similar Attributes.
