59-532 ITW Switches

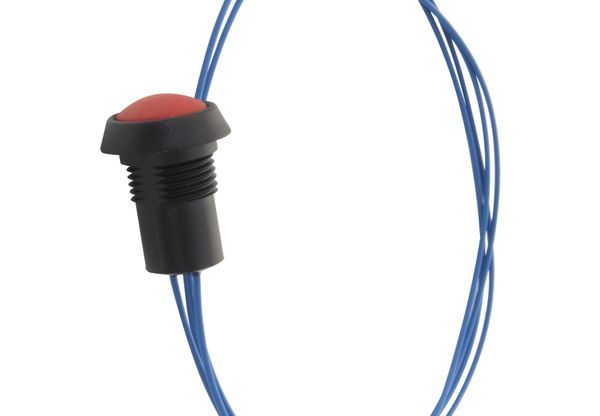

Series 59.qxd:Layout 1 11/09/2014 09:22 Page 12 PUSHBUTTONS SERIES 59 MINIATURE SEALED PUSHBUTTON The Series 59 is a range of miniature, momentary action, rugged panel sealed pushbutton switches. The Series is available with square or round bezel versions, with or without LED status illumination. A locknut is supplied with each switch. A choice of body material is provided of either a non spark zinc alloy or a hard wearing moulded PBT therefore making this switch suitable for use in most applications. It is panel sealed to IP67 and is designed to be impact resistant. The small size, robustness and panel seal- ing make this switch ideal in harsh environments. Non-Illuminated Version The non-illuminated range includes a choice of 7 button colours with solder terminal connection. PCB terminals, a high round bezel, surface and sublimation printing are available as non-standard. Status Illuminated Version An illuminated version is available in the round bezel versions with a choice of 3 button colours and 2 high brightness LED colours. Non standard options include additional button and LED colours (subject to minimum order quantities). APPLICATIONS: Communications Instrumentation Data entry Military environments Environmentally demanding keypads Mass transport controls KEY FEATURES: NON-STANDARD OPTIONS: Non-spark material Overboot available for protection against icing Wide temperature range Surface or sublimation legend printing on the button (non-illuminated version) Panel sealed To IP67 High environmental specifications Gold contacts Status illumination Contact an Authorized Distributor or Factory for Pricing www.itwswitches.co.uk
