0022505 Lapp Kabel

Name: 0022505
Brand: Lapp Kabel
SKU: 0022505_Lapp_Kabel
Availability: InStock
Rating: 5 (11 reviews)

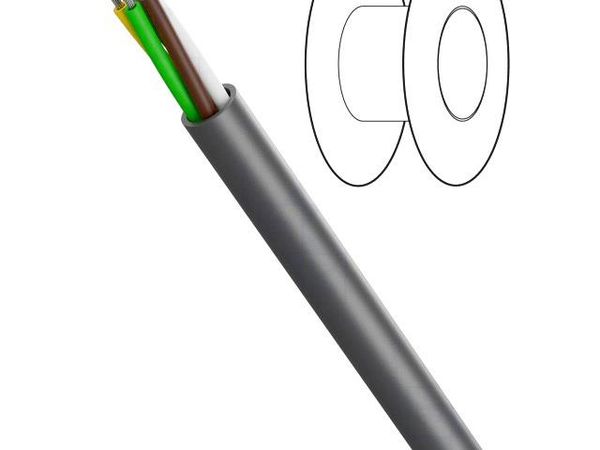

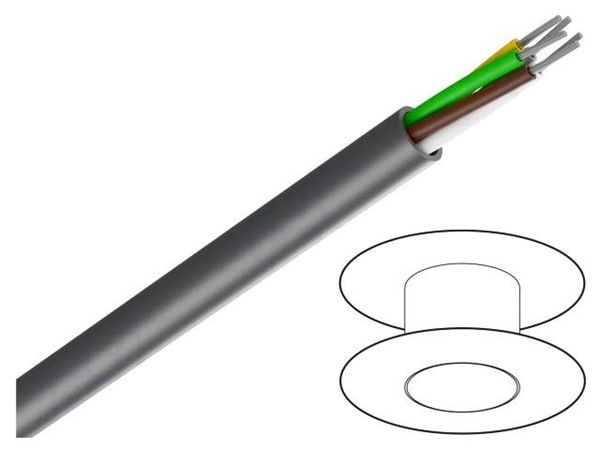

0022505 electronic component of Lapp Kabel

Images are for reference only, See Product Specifications

X-On Electronics has gained recognition as a prominent supplier of 0022505 Ribbon Cables / IDC Cables across the USA, India, Europe, Australia, and various other global locations. 0022505 Ribbon Cables / IDC Cables are a product manufactured by Lapp Kabel. We provide cost-effective solutions for Ribbon Cables / IDC Cables, ensuring timely deliveries around the world.

Part No.	0022505
Manufacturer:	Lapp Kabel
Category:	Ribbon Cables / IDC Cables
Description:	Wire; LiYY A; 5x24AWG; unshielded; 300V; PVC; Cu; stranded
Datasheet:	0022505 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 1.526 ea
Line Total: USD 1.53

Availability : 101

Ship by Wed. 19 Nov to Fri. 21 Nov

Qty Unit Price
1 $ 1.526
10 $ 1.344
22 $ 0.8834
60 $ 0.8358

0022505 More Buying Options & Price Grid(s)

Please wait...

Availability

Price (USD)

Buy Price

Quantity

Availability 101

Ship by Wed. 19 Nov to Fri. 21 Nov

MOQ : 1
Multiples : 1

Qty Unit Price
1 $ 1.526
10 $ 1.344
22 $ 0.8834
60 $ 0.8358

Specifications

Manufacturer

Lapp Kabel Lapp Kabel

Product Category

Ribbon Cables / IDC Cables Ribbon Cables / IDC Cables

Voltage Rating

300 V 300 V

Category

Ribbon Cables / IDC Cables Ribbon Cables / IDC Cables

Outer Insulation Material

PVC PVC

Kind Of Core

Cu, tinned Cu, tinned

Core Structure

cord cord

Cable Features

flame retardant, flame retardant flame retardant, flame retardant

Number Of Cores

5 5

Cable Application

control for machines, automatics, data transmission control for machines, automatics, data transmission

Core Marking

colours without colour repetition colours without colour repetition

Type Of Wire

data transmission data transmission

Cable External Diameter

4.8 mm 4.8 mm

Insulation Colour

dark grey dark grey

Core Diameter

24AWG 24AWG

Shield Structure

unshielded unshielded

Earth Core

none none

Conforms

CSA FT1, UL 2464, VW - 1, CSA AWM I/II A CSA FT1, UL 2464, VW - 1, CSA AWM I/II A

Operating Temperature

- 5 To 70 C - 5 To 70 C

Kind Of Wire

LiYY A LiYY A

Notes:- Show Stocked Products With Similar Attributes.
