Product Information

0034608 (100M)

0034608 (100M) electronic component of Lapp Kabel

Datasheet
SHLD CABLE, 8CORE, 0.5MM2, 100M, 350V
Manufacturer: Lapp Kabel
This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges



Price (USD)

100: USD 6.923 ea
Line Total: USD 692.3

0 - Global Stock
MOQ: 100  Multiples: 100
Pack Size: 100

 More Buying Options & Price Grid(s)

Availability Price Quantity
0 - WHS 1


Ships to you between Fri. 24 May to Thu. 30 May

MOQ : 100
Multiples : 100

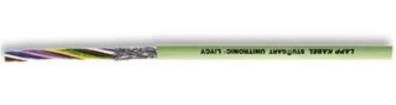

Stock Image

0034608 (100M)
Lapp Kabel

100 : USD 4.5146
500 : USD 4.0966
1000 : USD 4.013

Read More Specifications


Manufacturer
Product Category
Brand
Cable Shielding
No. Of Cores
Wire Gauge
Conductor Area Csa
Reel Length Imperial
Reel Length Metric
Jacket Colour
No. Of Max Strands X Strand Size
Conductor Material
Jacket Material
External Diameter
Voltage Rating
Product Range
Svhc
Cable Type
Conductor Make-Up
Operating Temperature Max
Operating Temperature Min
Outer Diameter
Secondary Insulation Material
LoadingGif

Notes:- Show Stocked Products With Similar Attributes.

More Products By Manufacturer "Lapp Kabel"

Image Description
00008779 electronic component of Lapp Kabel 00008779

Connector: M27; plug; female; Plating: gold-plated; IP67; PIN:21
Stock : 1

10074000 electronic component of Lapp Kabel 10074000

H-B 16 SGR 21 ZW. BOX MOUNT BASE
Stock : 10

10121000 electronic component of Lapp Kabel 10121000

EPIC H-B 24 TG 21 ZW. HOOD
Stock : 15

10155000 electronic component of Lapp Kabel 10155000

EPIC H-B 48 TG 29 ZW
Stock : 1

10160000 electronic component of Lapp Kabel 10160000

EPIC H-B 48 TS 42 ZW
Stock : 1

10344300 electronic component of Lapp Kabel 10344300

EPIC MCS 8 RJ45 INDUSTRIAL ETHERNET
Stock : 1

10381000 electronic component of Lapp Kabel 10381000

MCR 6 S FRAME FOR MODULES
Stock : 17

10390500 electronic component of Lapp Kabel 10390500

MCB 2 PDP T FEMALE MODULE PROFIBUS
Stock : 1

11147100 electronic component of Lapp Kabel 11147100

EPIC CRIMP DIES FOR D=1.6/2.5MM M-C.
Stock : 0

11147200 electronic component of Lapp Kabel 11147200

EPIC LOCATOR FOR D=1.6/2.5MM MA. CO.
Stock : 0

More Products By Category "Unclassified"

Image Description
F-596-C electronic component of Waldom F-596-C

4 X 1/2 PAN HEAD SCREW
Stock : 1

RVUVK105CH020BW-F electronic component of Taiyo Yuden RVUVK105CH020BW-F

CAP, HIGH FREQ, 0402, 50V, C0H
Stock : 1

MPZ2012-KIT electronic component of TDK MPZ2012-KIT

C216-005
Stock : 1

RVEVK105CH3R9JW-F electronic component of Taiyo Yuden RVEVK105CH3R9JW-F

CAP, HIGH FREQ, 0402, 16V, C0H
Stock : 1

RMJMK063BJ224MP-F electronic component of Taiyo Yuden RMJMK063BJ224MP-F

CAP 0.22UF 6.3VDC X5R 20% SMD 0201
Stock : 1

RMUMK105CG3R9CV-F electronic component of Taiyo Yuden RMUMK105CG3R9CV-F

CAP, MLCC, 0402, 50V, C0G, 3.9
Stock : 1

OSTOQ025350 electronic component of On Shore Technology OSTOQ025350

Conn Shrouded Header (4 Sides) HDR 2 POS 5.08mm Solder ST Thru-Hole
Stock : 1

F-465-C electronic component of Waldom F-465-C

F465C waldom
Stock : 1

F-524-C electronic component of Waldom F-524-C

F524C waldom
Stock : 1

F-040-C electronic component of Waldom F-040-C

F040C waldom
Stock : 1

Additional Infomation About Product

PRODUCT INFORMATION UNITRONIC LiYCY Screened data transmission cable with colour code acc. to DIN 47100 Overall braid minimises electrical interference Multifunctional application possibilities Interference signals Application range Screened cables with small dimensions are suitable for use in computer systems, insturmentation technology, office equipment, balances. Dry or damp rooms Product Make-up Fine-wire/multi-wire (0.34 mm) strand made of bare copper wires Core insulation made of PVC Tinned-copper braiding Outer sheath made of PVC Outer sheath colour: pebble grey (RAL 7032) Norm references / Approvals Based on VDE 0812 Product features Flame-retardant according IEC 60332-1-2 Technical Data Core identification code: DIN 47100 without colour repetition, refer to Appendix T9 Mutual capacitance: C/C: approx. 120 nF/km C/S: approx. 160 nF/km Peak operating voltage: (not for power applications) at 0.14 mm: 350 V at 0.25 mm: 500 V Classification: ETIM 5.0 Class-ID: EC000830 ETIM 5.0 Class-Description: Data cable Inductivity: approx. 0.65 mH/km Conductor stranding: Stranded, fine-wire 0.34 mm: 7-wire Minimum bending radius: Occasional flexing: 15 x outer diameter Fixed installation: 6 x outer diameter Test voltage: At 0.14 mm: 1200 V Temperature range: Occasional flexing: -5C to +70C Fixed installation: -40C to +80C Last Update (05.11.2015) 1 / 6 2016 Lapp Group - Technical changes reserved PN 0456 / 02 03.16 PRODUCT INFORMATION UNITRONIC LiYCY Note Unless specified otherwise, the shown product values are nominal values. Detailed values (e.g. tolerances) are available upon request. Copper price basis: EUR 150/100 kg. Refer to catalogue appendix T17 for the definition and calculation of copper-related surcharges. Please find our standard lengths at: www.lappkabel.de/en/cable-standardlengths Packaging size: coil 30 kg or 250 m, otherwise drum Please specify the preferred type of packaging (e.g. 1 x 500 m drum or 5 x 100 m coils). Photographs are not to scale and do not represent detailed images of the respective products. Last Update (05.11.2015) 2 / 6 2016 Lapp Group - Technical changes reserved PN 0456 / 02 03.16
