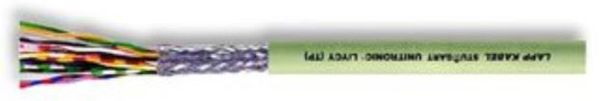

PRODUCT INFORMATION UNITRONIC LiYCY (TP) Screened data transmission cable with colour code acc. to DIN 47100 and twisted pairs UNITRONIC LiYCY (TP): Low-frequency PVC data cable, DIN 47100 coded, 0.34 Maxi TERMI-POINT, Twisted pairs, Flame retardant, Screened, Instrumentation Control Info TP = twisted pair Interference signals Benefits Decoupling of circuits by means of twisted-pair (TP) design (crosstalk effects) Overall braid minimises electrical interference Application range Can be used multifunctional in electronics of computer systems, electronic control equipment, office machines, balances, etc. Dry or damp rooms Product features Good protection against capacitive interference from electric fields (e.g. power cable) Flame-retardant according IEC 60332-1-2 Norm references / Approvals Based on VDE 0812 Last Update (13.02.2017) 1 / 4 2017 Lapp Group - Technical changes reserved Product Management www.lappkabel.de You can find the current technical data in the corresponding data sheet. PN 0456 / 02 03.16 PRODUCT INFORMATION UNITRONIC LiYCY (TP) Product Make-up Fine-wire strand made of bare copper wires Core insulation made of PVC TP structure Tinned-copper braiding Outer sheath made of PVC Outer sheath colour: pebble grey (RAL 7032) Technical Data Classification: ETIM 5.0 Class-ID: EC000104 ETIM 5.0 Class-Description: Control cable Core identification code: DIN 47100, refer to Appendix T9 Mutual capacitance: C/C: approx. 120 nF/km C/S: approx. 160 nF/km Peak operating voltage: (not for power applications) at 0.14 mm: 350 V at 0.25 mm: 500 V Inductivity: approx. 0.65 mH/km Conductor stranding: Fine copper wire strands Minimum bending radius: Occasional flexing: 15 x outer diameter Fixed installation: 6 x outer diameter Test voltage: At 0.14 mm: 1200 V Temperature range: Occasional flexing: -5C to +70C Fixed installation: -40C to +80C Note Unless specified otherwise, the shown product values are nominal values. Detailed values (e.g. tolerances) are available upon request. Copper price basis: EUR 150/100 kg. Refer to catalogue appendix T17 for the definition and calculation of copper-related surcharges. Please find our standard lengths at: www.lappkabel.de/en/cable-standardlengths Packaging size: coil 30 kg or 250 m, otherwise drum Please specify the preferred type of packaging (e.g. 1 x 500 m drum or 5 x 100 m coils). Photographs are not to scale and do not represent detailed images of the respective products. * Prices are net prices without VAT and surcharges. Sale to business customers. Last Update (13.02.2017) 2 / 4 2017 Lapp Group - Technical changes reserved Product Management www.lappkabel.de You can find the current technical data in the corresponding data sheet. PN 0456 / 02 03.16
