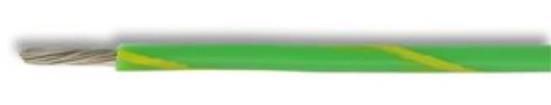

Product Information Page 1 of 8 Multi-Standard single core UL(MTW)-CSA-HAR 1015 Valid: 01.12.2008 Product Description Usage on the most important global markets Reduced technical documentation expense Easier storage Increased economy in the production process Application range Internal wiring of devices Control cabinet wiring Benefits Usage on the most important global markets Reduced technical documentation expense Easier storage Increased economy in the production process Design Strands of tinned copper wires Metrical cross section is the master size Core insulation: Based on Special PVC Approvals (Norm references) NFPA 79 Edition 2007 conform Product features Flame retardant according to IEC 60332-1-2 Flame retardant according to UL VW1 / CSA FT1Product Information Page 2 of 8 Multi-Standard single core UL(MTW)-CSA-HAR 1015 Valid: 01.12.2008 Oil resistant Cross-References Accessories DIN-assorted boxes conductor end sleeves, PWE 8.87 crimping pliers Comparable products H07V-K, Multi-Standard single core UL(MTW)-CSA-HAR 10269 Technical Data Approvals Rated voltage VDE 0281/ HD 21 (H07V-K) HAR / IEC: U0/U: 450/750 V UL (AWM): U: 600 V UL: AWM Style 1015 UL: MTW 1063 CSA: TEW UL (MTW): U: 600 V CSA (TEW): U: 600 V Specific insulation resistance Test voltage > 10 GOhm x cm 2500 V Conductor stranding Range of temperature Fine wire according to VDE 0295 Class 5/ IEC Fixed installation: HAR / IEC: -40C up to +70C UL 60228 Class 5 (AWM): -40C up to +105C UL (MTW): -40C to +90C CSA (TEW): -40C to +105C Article List Conductor Conductor Outer Overall Copper Weight Box Part cross cross diameter weight/box Colour m/Coil index kg/km capacity number section in section in in mm in kg kg/km approx. in m mm AWG approx. approx. 4160100 0,5 22 2.5 GNYE 4.8 10 4160101 0,5 22 2.5 BK 4.8 10 4160102 0,5 22 2.5 BU 4.8 10 4160103 0,5 22 2.5 BN 4.8 10 4160104 0,5 22 2.5 RD 4.8 10 4160105 0,5 22 2.5 WH 4.8 10 4160106 0,5 22 2.5 GY 4.8 10 4160107 0,5 22 2.5 VT 4.8 10 4160108 0,5 22 2.5 PK 4.8 10 4160109 0,5 22 2.5 OG 4.8 10
