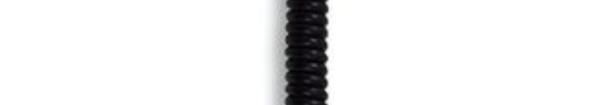

Product Information Page 1 of 3 UNITRONIC SPIRAL Valid: 04.04.2011 Spiral cable with outer PUR sheath and over-all shielding for exact impulse transmission Product Description Overall screening prevents high frequency interference and guarantees accurate pulse transmission Extended lengths of up to 4 times the unextended spiral length Application range In measurement and controlling engineering Used wherever screened cables with smallest dimensions are required Benefits Overall screening prevents high frequency interference and guarantees accurate pulse transmission Extended lengths of up to 4 times the unextended spiral length Design Strands of bare copper wires Core insulation: Based on PVC Screening by copper wrapping Outer sheath: Polyurethane (PUR) compound Length of straight ends: First end: 200 mm long 2nd end: 600 mm long Product features Abrasion and cut resistant Very high flexibilityProduct Information Page 2 of 3 UNITRONIC SPIRAL Valid: 04.04.2011 Technical Data Core identification code Conductor stranding DIN 47100 Extra fine wire according to VDE 0295 Class 6 / IEC 60228 Peak working voltage Class 6 250 V (not for power applications) Test voltage Specific insulation resistance 1200 V > 10 GOhm x cm Range of temperature Flexible use: -5C up to +50C Article List Number Spiral Spiral Cable Spiral Part of cores and length length Copper diameter/ in outer diameter number mm per extended in unextended in index kg/km mm mm conductor mm max. mm 73220200 2 x 0,14 400 100 4.0 15.0 16.51 73220201 2 x 0,14 800 200 4.0 15.0 23.81 73220202 2 x 0,14 1200 300 4.0 15.0 29.76 73220203 2 x 0,14 1600 400 4.0 15.0 36.96 73220204 2 x 0,14 2000 500 4.0 15.0 48.0 73220205 3 x 0,14 400 100 4.2 18.0 21.01 73220206 3 x 0,14 800 200 4.2 18.0 30.8 73220207 3 x 0,14 1200 300 4.2 18.0 43.56 73220208 3 x 0,14 1600 400 4.2 18.0 54.89 73220209 3 x 0,14 2000 500 4.2 18.0 63.8 73220210 4 x 0,14 400 100 4.4 19.0 23.4 73220211 4 x 0,14 800 200 4.4 19.0 33.6 73220212 4 x 0,14 1200 300 4.4 19.0 45.84 73220213 4 x 0,14 1600 400 4.4 19.0 58.68 73220214 4 x 0,14 2000 500 4.4 19.0 67.2 73220215 5 x 0,14 400 100 5.1 20.0 24.48 73220216 5 x 0,14 800 200 5.1 20.0 38.16 73220217 5 x 0,14 1200 300 5.1 20.0 50.4 73220218 5 x 0,14 1600 400 5.1 20.0 60.48 73220219 5 x 0,14 2000 500 5.1 20.0 72.0 73220220 6 x 0,14 400 100 5.4 21.0 31.15 73220221 6 x 0,14 800 200 5.4 21.0 44.88
