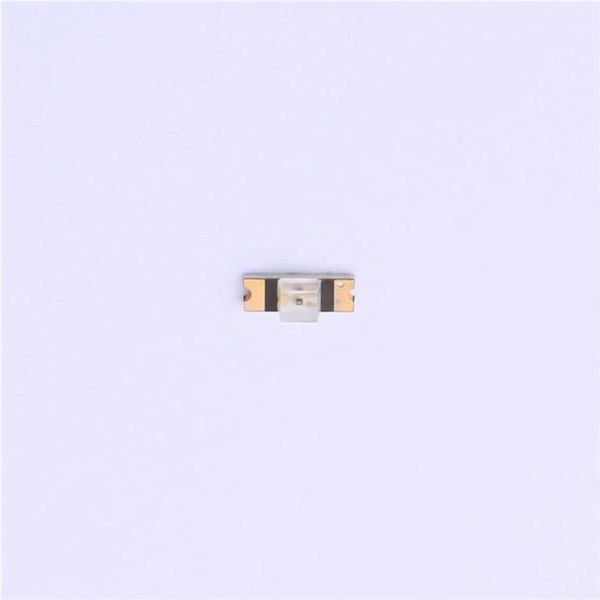

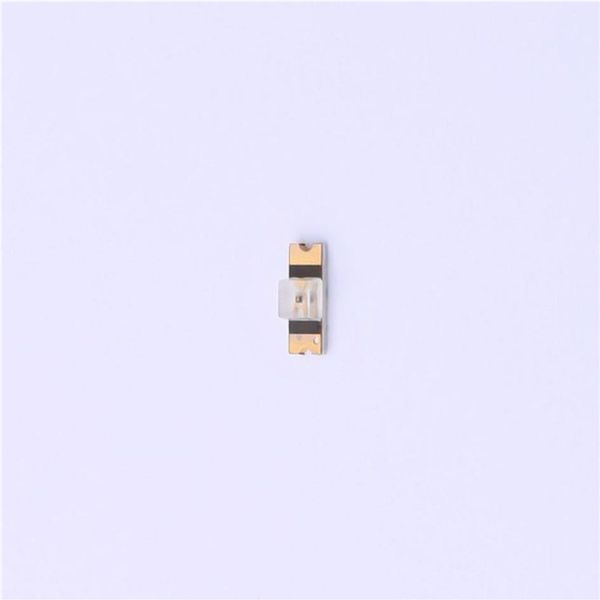

SMD LED Product Data Sheet LTST-C250KGKT Spec No.: DS22-2014-0319 Effective Date: 09/20/2014 Revision: - LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Technology Corp. / Optoelectronics No.90,Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. Tel: 886-2-2222-6181 Fax: 886-2-2221-1948 / 886-2-2221-0660 SMD LED LTST-C250KGKT 1. Description SMD LED lamps from Lite-On are available in miniature sizes and special configurations for automated PC board assembly and space-sensitive applications. These SMD LED lamps are suitable for use in a wide variety of electronic equipment, including cordless and cellular phones, notebook computers, network systems, home appliances, and indoor signboard applications. 1.1 Features 1.2 Applications Meet RoHS Telecommunication, Office automation, home appliances, Reverse mount Chip LED industrial equipment Ultra bright AlInGaP Chip LED Keypad/Keyboard Backlighting Package in 8mm tape on 7 diameter reels. Status indicator EIA STD package Micro-displays I.C. compatible Signal and Symbol Luminary Compatible with automatic placement equipment Compatible with infrared reflow solder process 2. Package Dimensions Part No. Lens Color Source Color LTST-C250KGKT Water Clear AlInGaP Green Notes: 1. All dimensions are in millimeters. 2. Tolerance is 0.1 mm (.004 ) unless otherwise noted. Part No. : LTST-C250KGKT BNS-OD-FC002/A4 1/11
