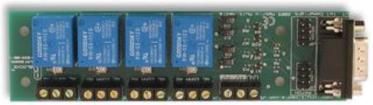

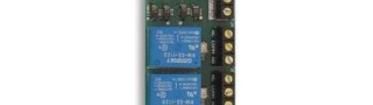

TM E-blocks Quad relay board Document code: EB038-30-1 Quad relay board datasheet EB038-00-1 CONTENTS 1. About this document. 2 2. General Information.. 3 3. Board layout... 4 4. Testing this product... 5 5. Circuit description.. 6 Appendix 1 Circuit diagram. Copyright 2006 Matrix Multimedia Limited 1 TM E-blocks Quad relay board Document code: EB038-30-1 1. About This Document This document concerns the Matrix Multimedia Quad Relay Board code EB038-00-1. 1. Trademarks and copyright PIC and PICmicro are registered trademarks of Arizona Microchip Inc. E-blocks is a trademark of Matrix Multimedia Limited. EB038 and associated software and documentation are Copyright 2006 Matrix Multimedia Limited. 2. Other Sources of Information There are various other documents and sources that you may find useful: Getting Started with E-Blocks.pdf This describes the E-block system and how it can be used to develop complete systems for learning electronics and for PICmicro programming. PPP Help File This describes the PPP software and its functionality. PPP software is used for transferring hex code to a PICmicro microcontroller. C and Assembly Strategies For strategy information for creating C and Assembly code for the Quad relay board see members area. This can be found at www.matrixmultimedia.com/eblocks 3. Disclaimer The information provided within this document was correct at the time of going to press. Matrix Multimedia reserves the right to change specifications from time to time. 4. Technical Support If you have any problems operating this product then please refer to the troubleshooting section of this document first. You will find the latest software updates, FAQs and other information on our web site: www.matrixmultimedia.co.uk. If you still have any problems please email us at: support matrixmultimedia.co.uk. When emailing please state the operating system, the version of PPP you are using. Copyright 2006 Matrix Multimedia Limited 2
